Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

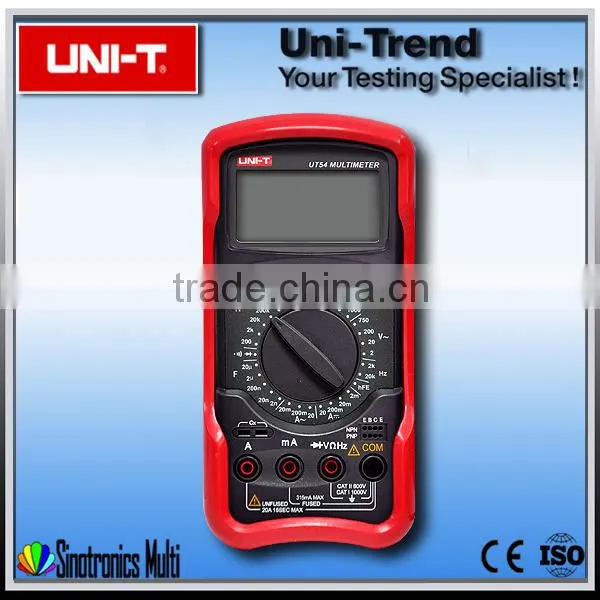

The new "UT50" series of 3 1/2 digital DMM is a performance stability, high reliability of handheld digital multi meter, the overall circuit design of the integrated circuit, double integral A/D converter as the core and with full function overload protection, can be used to measure DC and AC voltage, current, resistance, capacitance, diode, temperature, frequency and current pass, is an ideal test tool.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ ---------------
| Specifications | Range | Best Accuracy |
| Model | UT54 | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| DC Current (A) | 2mA/20mA/200mA/20A | ±(0.8%+1) |
| AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
| AC Current (A) | 20mA/200mA/20A | ±(1%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.8%+1) |
| Capacitance (F) | 2nF/20nF/200nF/2μF/20μF | ±(4%+3) |
| Frequency (Hz) | 2kHz/20kHz | ±(1.5%+5) |
| Features | ||
| Transistor | √ | |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Sleep Mode | √ | |
| Low Battery Display | √ | |
| Input Impedance for DC Voltage Measurement | 10MΩ | √ |
| Max. Display | 1999 | √ |
| General Characteristic | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 65mm×33mm | |
| Product Colour | Red and Grey | |
| Product Net Weight | 580g (including holster)) | |
| Product Size | 190mm×88mm×34mm | |
| Standard Accessories | Test Lead, Battery, Holster | |
| Standard Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 20 Pcs | |
| Standard Carton Measurement | 535mm×362mm×385mm | |
| Standard Carton Gross Weight | 20.5kg | |
| Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) | |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
