Product image
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

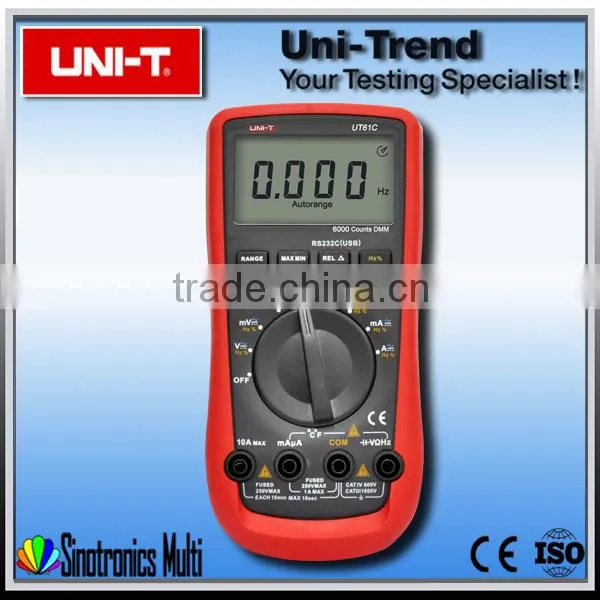

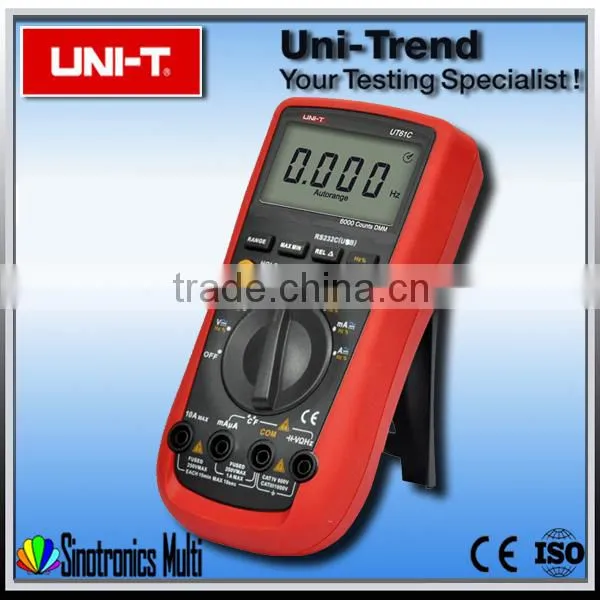

UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance and automatic measurements.
UT61 Series can measure AC/DC voltage and current (UT61D, UT61E has true RMS), resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc.
UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specifications | Range | Best Accuracy |
| Model | UT61C | |
| DC Voltage (V) | 60mV/600mV/6V/60V/600V/1000V | ±(0.5%+1) |
| AC Voltage (V) | 60mV/600mV/6V/60V/600V/750V | ±(1.0%+3) |
| DC Current (A) | 600μA/6000μA/60mA/600mA/6A/10A | ± (1.0%+3) |
| AC Current (A) | 600μA/6000μA/60mA/600mA/6A/10A | ±(1.2%+5) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1.0%+2) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/400μF/4000μF | ±(3.0%+5) |
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+4) |
| Temperature (°C) | -40°C ~ 1000°C | ±(1.2%+3) |
| Temperature (°F) | -40°F~1832°F | ±(1.2%+4) |
| Features | ||
| Display Count | 6000 | |
| Auto Range | √ | |
| Bandwidth (Hz) | 45Hz ~1kHz | |
| Duty Cycle | 0.1% ~ 99.9% | √ |
| Diode | √ | |
| Auto Power Off | Around 15 Minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤7.5V | √ |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| RS-232 | √ | |
| LCD Backlight | √ | |
| Analogue Bar Graph | 61 | |
| Input Protection | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 65mm × 43 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 370g | |
| Product Size | 180mm × 87mm × 47 mm | |

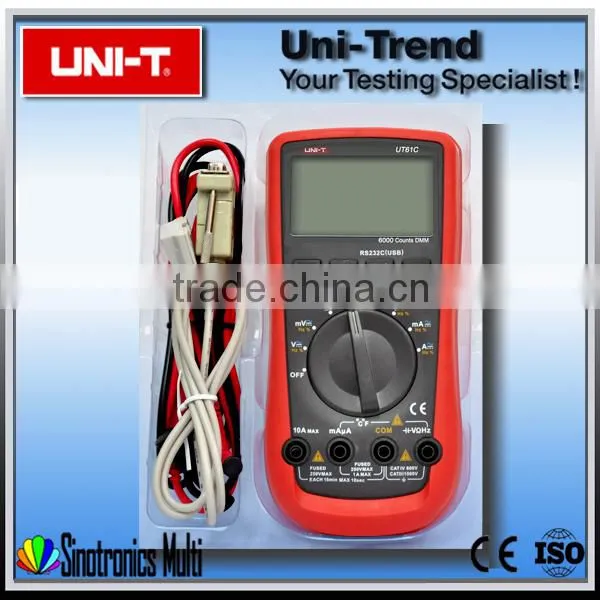

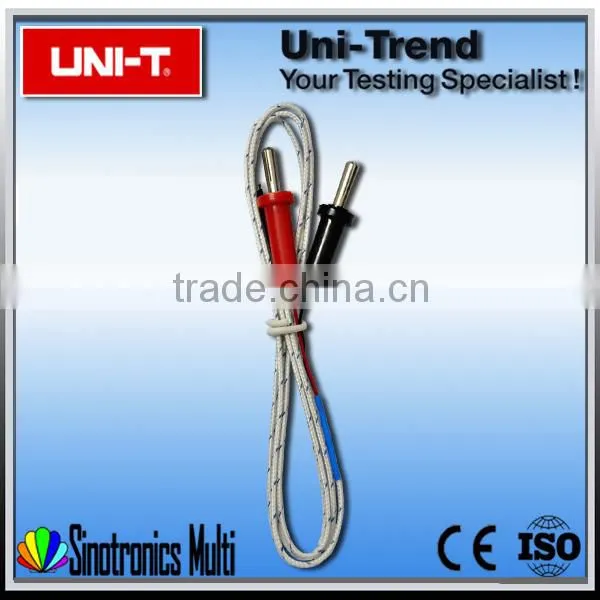

| Standard Accessories | Battery, Test Lead,Muli-Purpose Socket,RS-232 Interface Cable,PC Software CD,Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 22 PCs | |
| Standard Carton Measurement | 455mm×335mm×375mm | |
| Standard Carton Gross Weight | 15.5 Kg | |
| Optional Accessories* | USB Interface Cable | |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
