Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

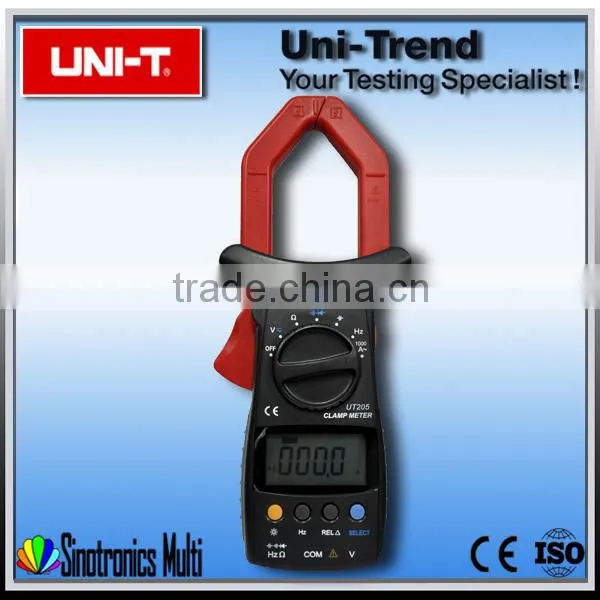

UT205UT206 a stable performance, safe and reliable 3 3 / 4 bit digital clamp meter. The whole circuit design in large scale integrated circuit of the double integral A / D converter as the core, the full range of overload protection circuit, the appearance of a unique design make the special electrician instrument.
Instrument can be used to measure AC DC voltage, AC current, resistance, diode, circuit on-off, capacitance, frequency, duty cycle or temperature.
The instrument is equipped with a clamp head lamp and a back light source, which is convenient for the user to clamp into the wire and read out the measurement values in the light of the light.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Basic function | Range | Basic accuracy |
| Model | UT205 | |
| DC voltage | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| AC voltage | 4V/40V/400V/600V | ±(1.2%+5) |
| Alternating current | 400A/1000A | ±(1.5%+5) |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) |
| Capacitance | 40nF/400nF/4μF/40μF/200μF | ±(3%+5) |
| Frequency | 10Hz~10MHz | ±(0.1%+3) |
| Special function | ||
| Relative measurement | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode test | √ | |
| On the broken buzzer | √ | |
| Full symbol display | √ | |
| Sleep function | √ | |
| Low voltage power | √ | |
| Voltage measurement input impedance | 10MΩ | √ |
| Data retention | √ | |
| Automatic range | √ | |
| Backlight | √ | |
| Jaw lighting | √ | |
| Maximum display | 3999 | √ |
| Display size | 52×27mm | √ |
| The maximum size of the clamp head | 40mm | √ |
| General characteristics | ||
| Power Supply | 9VBattery(6F22) | |
| Body color | Red + gray | |
| Body weight | 530g | |
| Body size | 260×104×52mm | |

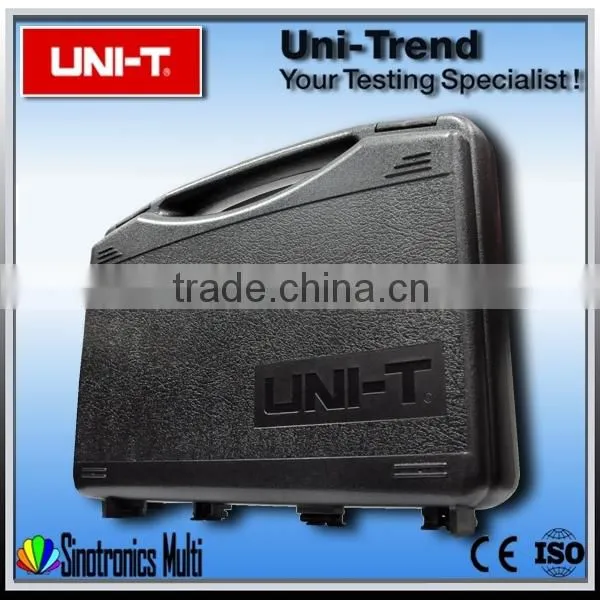

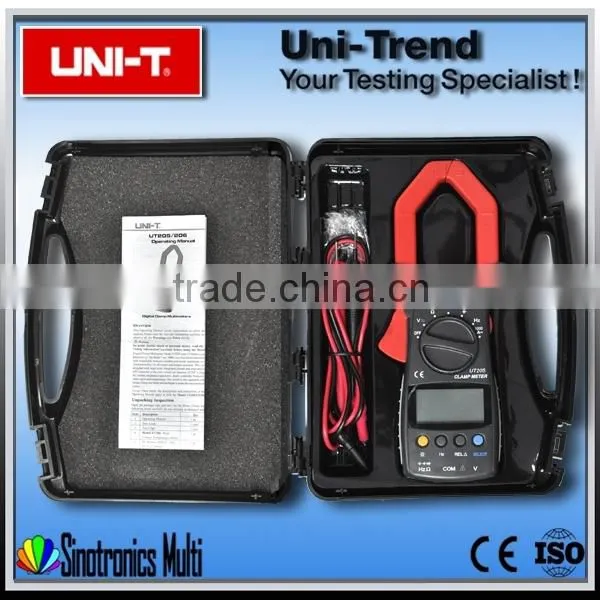

| Standard fittings | Pen, battery, toolbox | |

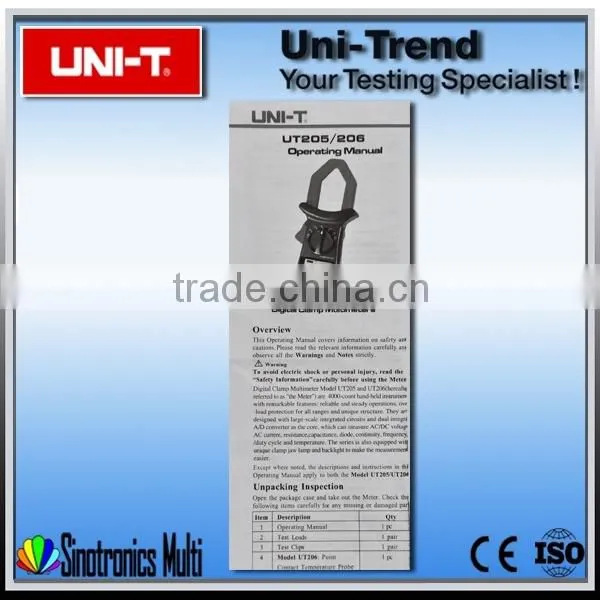

| Standard inner packing | Color box, manual, warranty card | |
| Standard package quantity | 20Taiwan | |
| Standard package size | 591×370×474mm | |
| Standard packing gross | 27.5kg | |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
