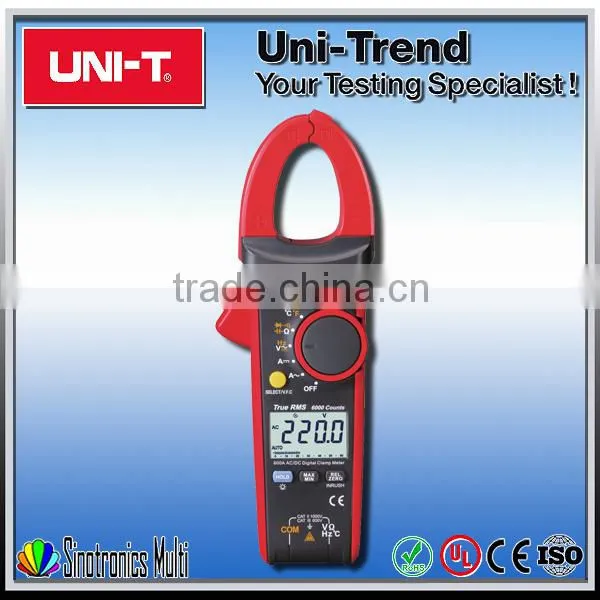

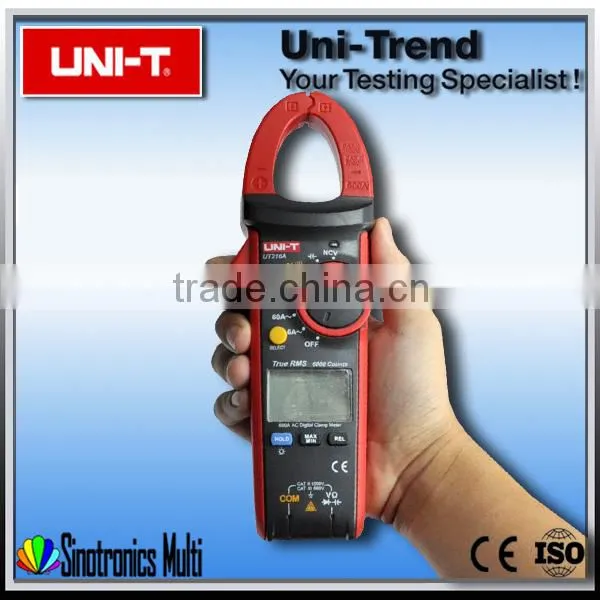

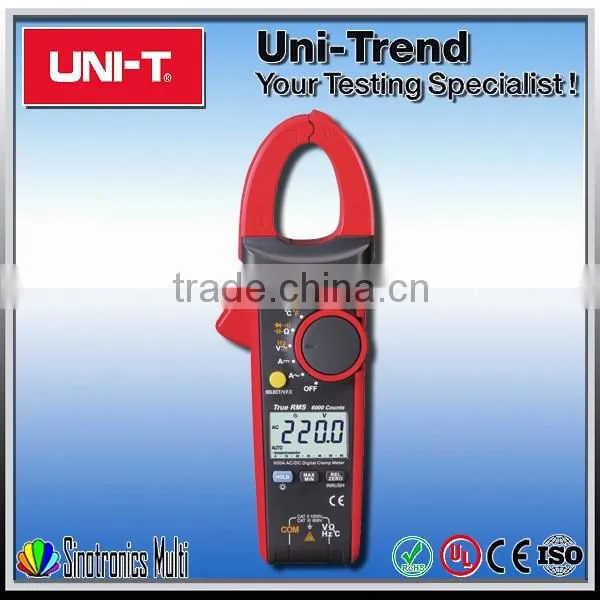

UT216 series true RMS digital clamp meter is a new-generation practical electrotechnical measurement meter which has the features of high reliability, high safety, automatic range and handheld type, has full-range overload protection and unique appearance design, is more excellent in performance, and is an ideal tool for detection, maintenance and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power and circuit equipment.
UTD216B (main features)
- 600A AC current measurement;
- True RMS response for ACV and ACA;
- 99.99mF capacitance measurement;
- V.F.C function for measuring signal at variable frequency ;
- Non-contact voltage detection with LED indication;
- Flashlight for working at dark environment.
| Specifications | Range | Best Accuracy |
| Model | UT216C | |
| AC Current (A) | 60A/600A | ±(2.5%+5) |
| DC Current (A) | 60A/600A | ±(2.5%+5) |
| AC Voltage (V) | 6V/60V/600V/750V | ±(1.2%+5) |
| DC Voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.8%+1) |
| Resistance (Ω) | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1%+2) |
| Capacitance (F) | 60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±(4.0%+5) |
| Frequency (Hz) | 10Hz-1MHz | ±(0.1%+4) |
| Temperature (°C) | -40 °C ~ 1000°C | ±(2.5%+3) |
| Temperature (°F) | -40 °F ~ 1832°F | ±(2.5%+4) |
| Features | ||
| Display Count | 6000 | |
| Auto Range | √ | |
| Jaw Capacity | 30mm | |
| True RMS | √ | |
| Diode | Around 3.0V | √ |
| V.F.C. | √ | |
| NCV | √ | |
| Data Hold | √ | |
| Zero Mode | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| Inrush Current | √ | |
| LCD Backlight | √ | |
| Analogue Bar Graph | 61 | |
| Flishlight | √ | |
| Auto Power Off | Around 15 Minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤3.6V | √ |
| Input Protection | √ | |
| Input Impedance for DCV | ≥10MΩ | √ |
| General Characteristic | ||
| Power | AAA 1.5V x 3 | |
| LCD Size | 38mm x 24 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 231.7g | |
| Product Size | 220mm x 75mm x 40mm | |

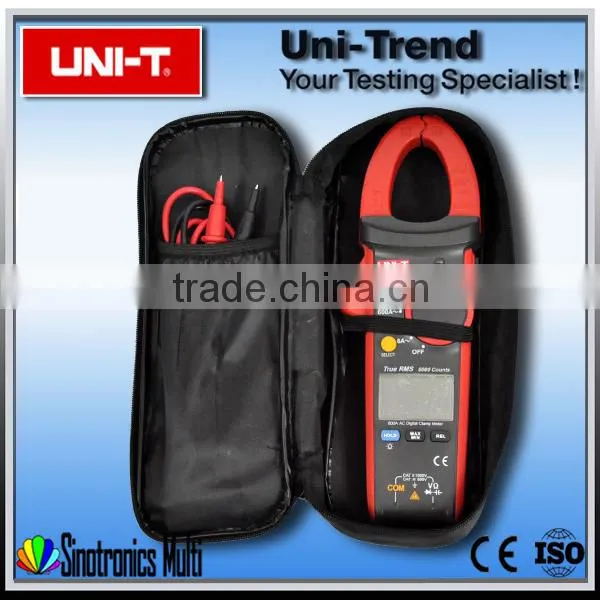

| Standard Accessories | Batteries, Test Lead, Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 485mm × 320mm × 385mm (0.060 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 20Kg | |
