Best Digital multimeter UNI-T UT221
- 5000 Box / Boxes per Month
- shanghai ningbo
- Acrel AMC16Z-FAK48 Electric Module Multi Channel Current Detection Module For Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti channel Monitoring Module Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- 48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- Din Rail Ac Power Meter AMC16Z-FAK48 Multi-circuit Energy Meter One RS485 Communication 48 Branch Full Electric Parameter
Product Details
Place of Origin: | Guangdong, China | Brand Name: | uni-t | Model Number: | UT221 |
Measuring Current Range: | 660A/2000A | Measuring Voltage Range: | 6.6V/66V/660V/750V | Measuring Resistance Range: | 660Ω/6.6KΩ/66KΩ/660KΩ/6.6MΩ/66MΩ |
Operating Temperature: | Normal atmospheric temperature | Dimensions: | 298mm * 100mm * 48mm |
Product Description
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT221 are stable and safe 3 5/6 digit AC&DC digital clamp meters.It is perfectly designed with over-load protection for all ranges and the unique structure, making it a superb professional meter especially for electricians.
An ideal tool for the maintenance and troubleshooting needed in metallurgy, manufacturing, petroleum, electric power, chemical industry, etc;
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specifications | Range | Best Accuracy |
Model | UT221 | |
AC Current(A) | 660A/2000A | ±(2.5%+5) |
DC Current(A) | 660A/2000A | ±(2.5%+5) |
AC Voltage(V) | 6.6V/66V/660V/750V | ± (1.2%+5) |
DC Voltage(V) | 6.6V/66V/660V/750V | ±(0.8%+1) |
Resistance(Ω) | 660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ/66MΩ | ±(1.0%+2) |
Frequency(Hz) | 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/20MHz | ±(0.1%+3) |
Features | ||
Display Count | 6600 | |
Auto Range | √ | |
Jaw Opening | 63mm | |
True RMS | AC Voltage/AC Current | √ |
Duty Cycle | 0.1%~99.9% | √ |
Diode | √ | |
Continuity Buzzer | √ | |
Low-Pass Filtering | √ | |
Inrush Current | AC Current | √ |
Relative Function | √ | |
Data Hold | √ | |
MAX | √ | |
MAX/MIN | √ | |
LCD Backlight | √ | |
Analogue Bar Analogue | 66 | |
Full Icon Display | √ | |
Auto Power Off | √ | |
Low Battery Indication | √ | |
Input Impedance | ≥10MΩ | √ |
I-OUT Function | √ | |
General Characteristics | ||
Power | 9V Alkaline Battery(6LF22) | |
LCD Size | 43mm×30 mm | |
Product Color | Red and Grey | |
Product Net Weight | 725g | |
Product Size | 298mm × 100mm × 48mm | |

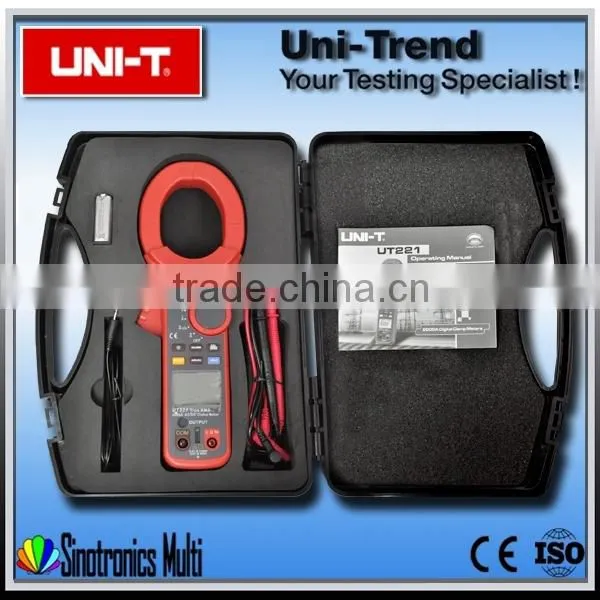

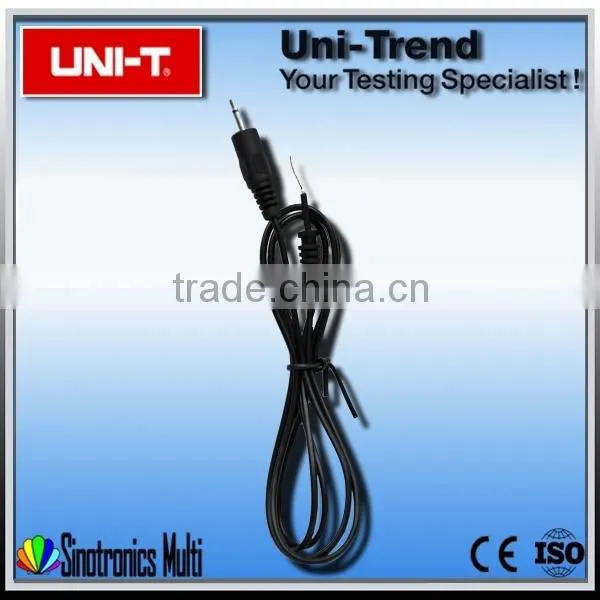

Standard Accessaries | Test Leads, Output Cable,Tool Box | |
Standard Individual Packing | Gift box, English Manual | |
Standard Quantity Per Carton | 5PCs | |
Standard Carton Measurement | 510mm×375mm×320mm | |
Standard Carton Gross Weight | 12Kg |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
