Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT600 series case of resistance capacitance inductance meter is a kind of stable, safe, reliable, high accuracy of the hand of the 3 1/2 bit manual switching range digital meter. Can be used to measure the amplification factor of the transistor, diode forward voltage drop and the function of the circuit. The UT601- capacitance measuring range is wide and the accuracy is high, and the measurement range is from 0.1pF to 20mF, and the UT602 has data retention function.
It is suitable for the electronic laboratory, production line, maintenance point and teaching and other aspects of resistance, capacitance, inductance test, is the ideal tool for the maintenance of the user.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specifications | Range | Best Accuracy |
| Model | UT601 | |
| Resistance (Ω) | 20Ω/200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ/2000MΩ | ±(0.8%+1) |
| Capacitance (C) | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF | ±(0.5%+10) |
| Features | ||
| Display Count | 1999 | |
| Manual Range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 61mm X 32 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 310g | |
| Product Size | 172mm X 83mm X38 mm | |

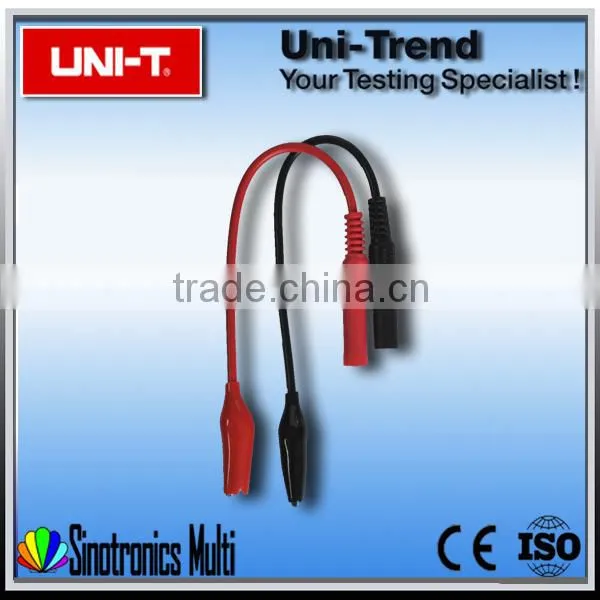

| Standard Accessories | Battery, Test Clip,Holster | |

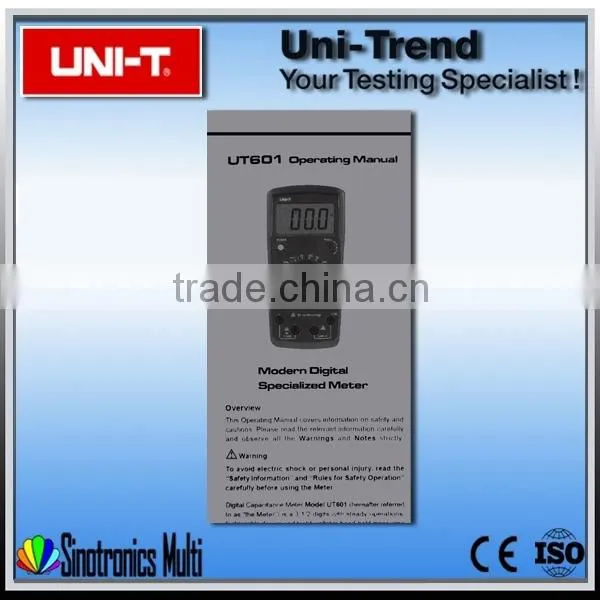

| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 598mm X 418mm X 340mm (0.085 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 21Kg | |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
