SX01-100 Double-Axis Copying Router Machine

Name: SX01-100 Double-Axis Copying Router Machine
Brand: Bohman
SKU: 107472277

US$ 1,500 - 4,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Bohman

Jinan Bohman Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Bohman

Model Number SX01-100

Type Vertical

CNC or Not Normal

Weight 250 kg

Specifications

Double-Axis Copying Router Machine
1. used for water slot, pulley groove
2. equiped with copy routing milling head

SX01-100 Double-Axis Copying Router Machine

Main Paremeter:

Input Power Source	380V 50Hz
Total Power	2*0.75 Kw
Working Air Pressure	0.4-0.6 Mpaa
Air Consumption	100 L/min
Milling Cutter Diameter	Φ5mm Φ8mm
Milling Cutter Rotated Speed	12000 r/min
Copy Routing Scope	290*90 mm
Dimension	11009501500 mm
Weight	250 kg

Equipment Features:

It is used for processing water slot, pulley groove, lock-hole, hardware hole and all of other groove of PVC and aluminum windows and doors.

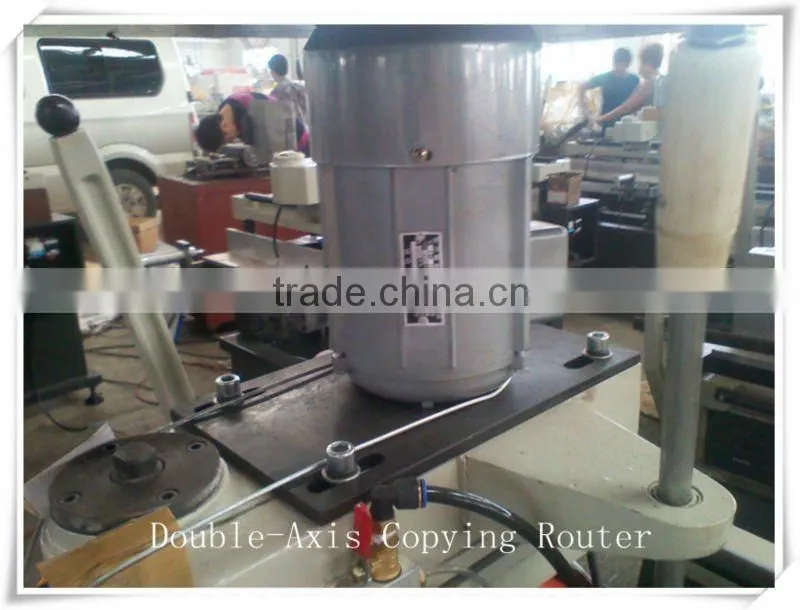

It is made up of two milling head in vertial and horizontal directions which can work continuously one impact so that ensure the accurate location between the holes and grooves and improve the efficiency.

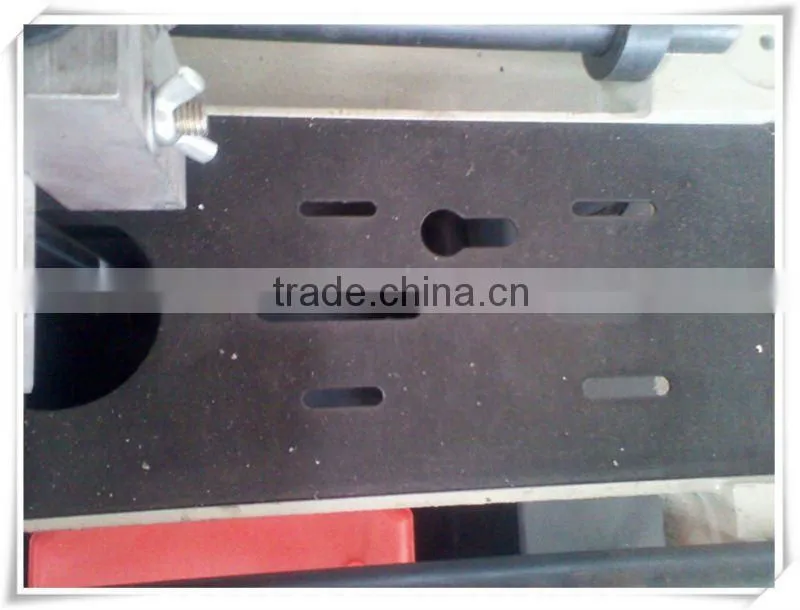

The standard mold board to control the size of the holes shape, the milling scale is 1:1.
Be equipped with high speedy copy routing milling head to ensure the milling precision.

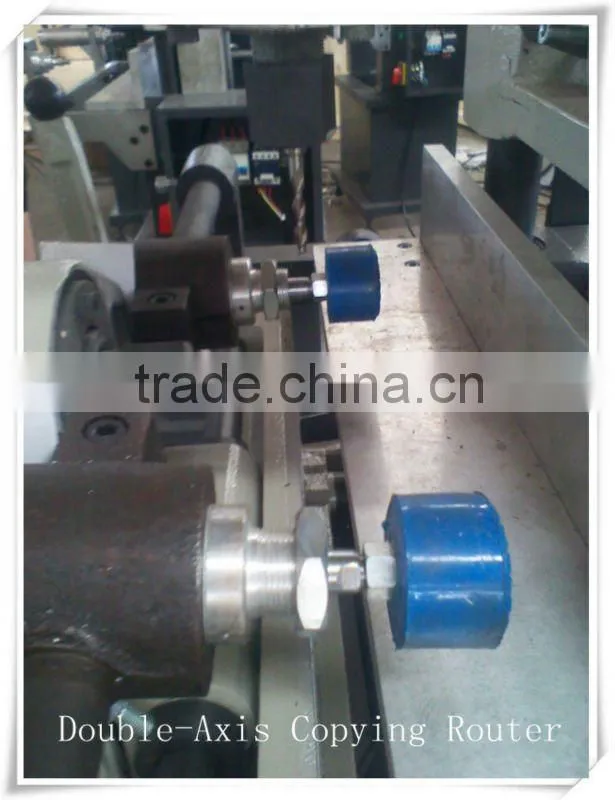

The double step copy-routing needle design suitable for different size of the holes.
It can processing different grooves controlled through the ruler.
