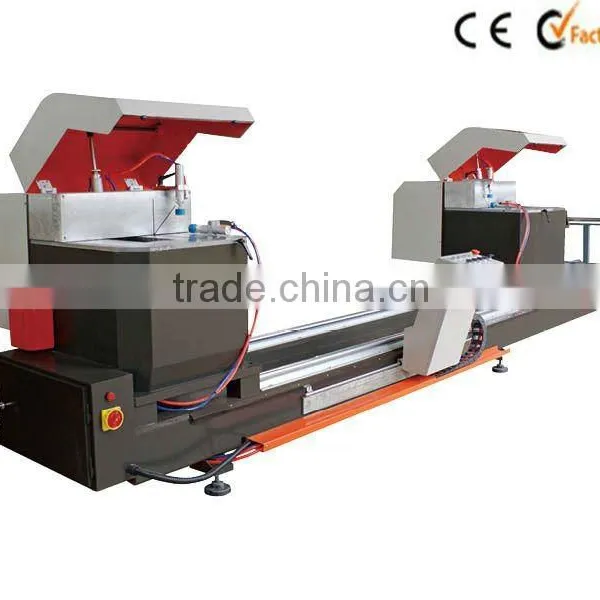

Double Mitre Saw for Aluminum Profile

Name: Double Mitre Saw for Aluminum Profile
Brand: Bohman
SKU: 107465987

US$ 7,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Bohman

Model Number:

LJZ2-500*4500A

Jinan Bohman Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qindao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Bohman

Model Number LJZ2-500*4500A

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

double mitre saw for aluminum profile
1.CNC technique
2.Two saw heads
3.Auto-opening
4.safe and convenient operation

double mitre saw for aluminum profile

1. Contact Information

Alice Meng

bohman_alice---yahoo----cn

86-13953166178

2. Equipment Features

1.Used for cutting the profile of aluminum doors and windows and curtain-wall profiles.

2.The feeding system adopts the imported linear guide pair,with high accuracy and stability.

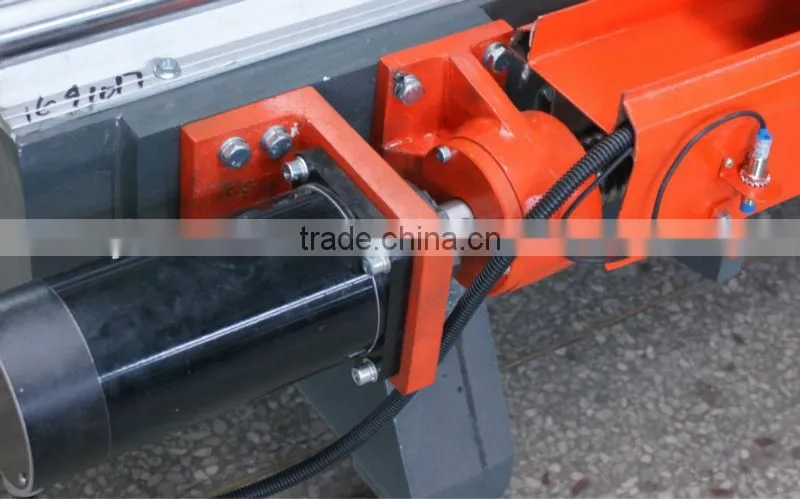

3.Right head feeding adopts high helical pitch ball screw-lead motion,with high accurate driving,locating and smooth working.

4.Adopts CNC techniques from Janpan,which can achieve auto cutting off of various profiles.

5.Two saw heads are adjustable and cut the profiles in 45°90°freely.

6.Imported carbide saw blade is of accurate processing accuracy.

7.Saw blade rotates smoothly due to high accurate main spindle.

8.Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.

9.Auto-opening shield makes the operation more safe and convenient.

3. Main specification and technical parameter:

Power supply	380V 50 Hz
Cutting motor pwer	2*2.2Kw
Operation air pressure	0.5-0.8Mpa
Air consumption	200L/min
Blade specification	φ500φ304.4*Z120
Cutting speed stepless speed regulation	0-3m/min
Max.cutting length	4500mm
Min.cutting length	480m
Cutting height	90°:Max150mm 45°:Max130mm
Cutting width	Max 235mm
Max cutting section	150mm*230mm
Cutting angle	90°45°
Repeated locating length tolerance	±0.2mm
Cutting profile surface roughness	Ra12.5μm
Contour dimension	5750mm1750mm1950mm
