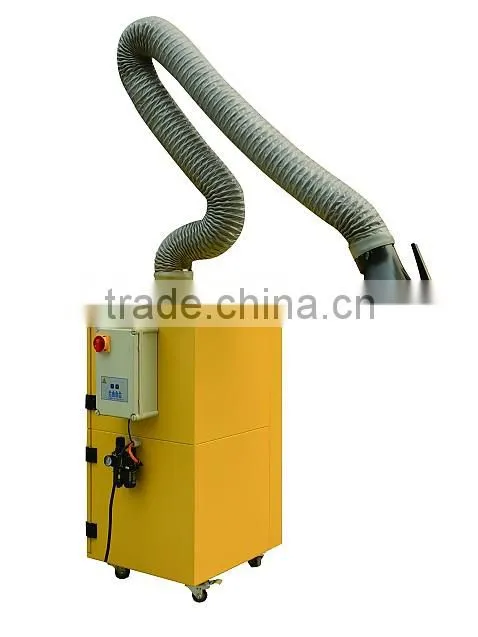

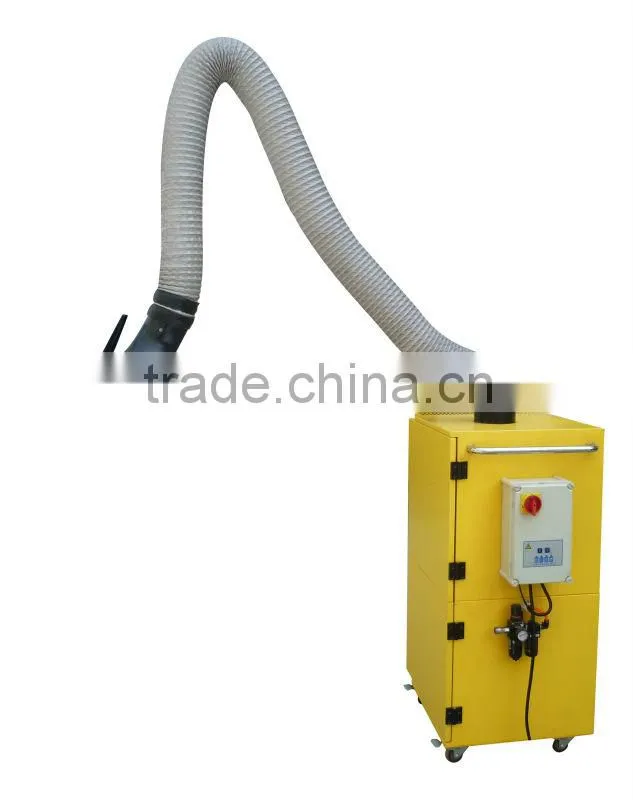

Industrial exhaust gas suction and discharge(movable welding fume purifier)

HP fan

Power:1.5KW/380V;Air volume:2800m/h³

360^o manipulator arm

Flexible arm of 3M,360^o rotation and vertical movement of 2M,Wearing and flame-retardant Germane dust collection hose

Procedure controller

Main power control and  touch type key to control smoking and dust collection

Welding fume dust collection filter barrel

TPFE material quality of 320*300mm to filter dust of 0.2um and higher

Pulse blowback device

Automatic rotary blowback; adjustable within 0.5ms to 0.5s,Airpressure is 4-6kg/cm²

Dimensions of box body

570*780*1400mm

Package dimensions

650*870*150

Weight

62kg
