Specifications
petitive price and assure quality2.CE and ISO approved

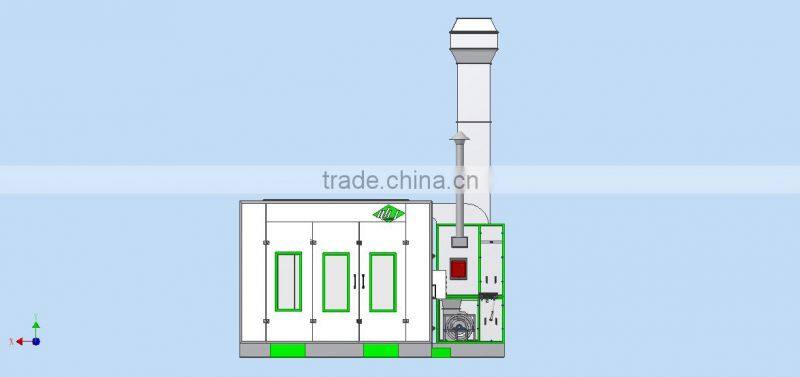

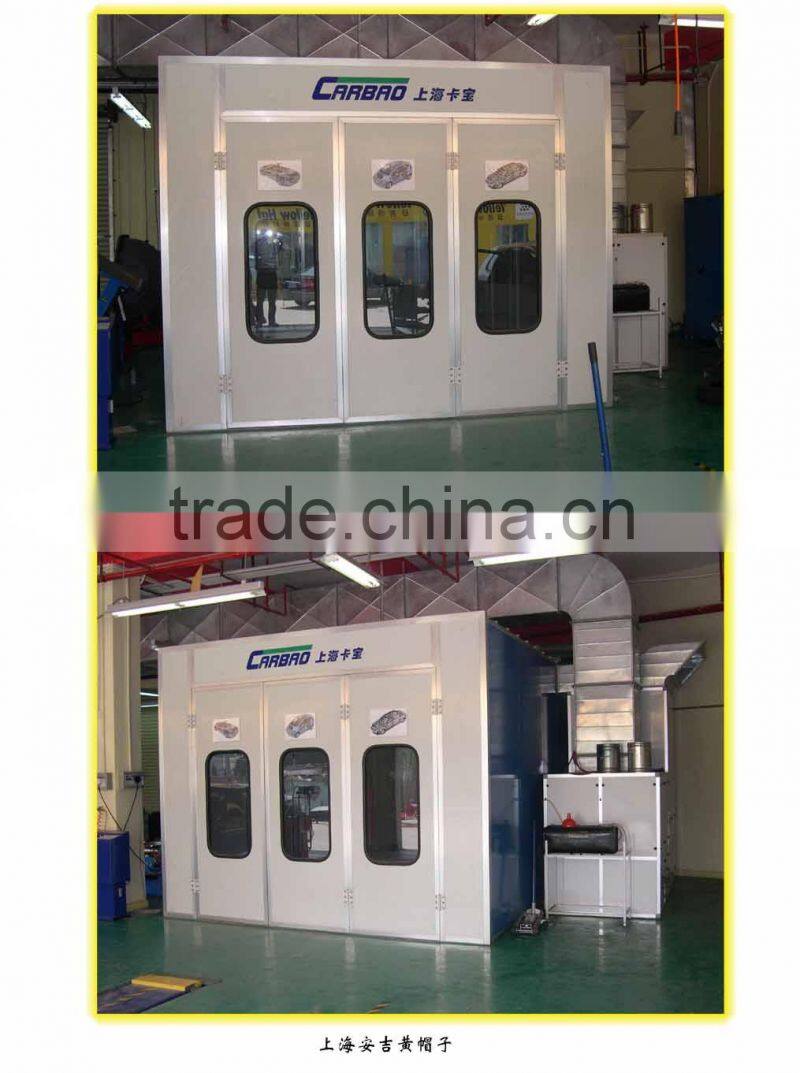

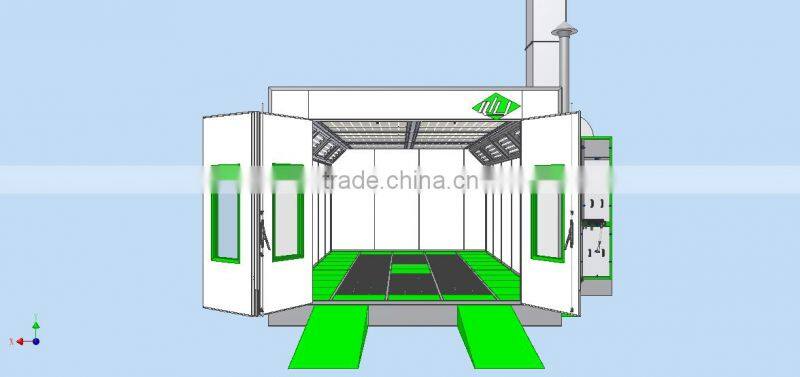

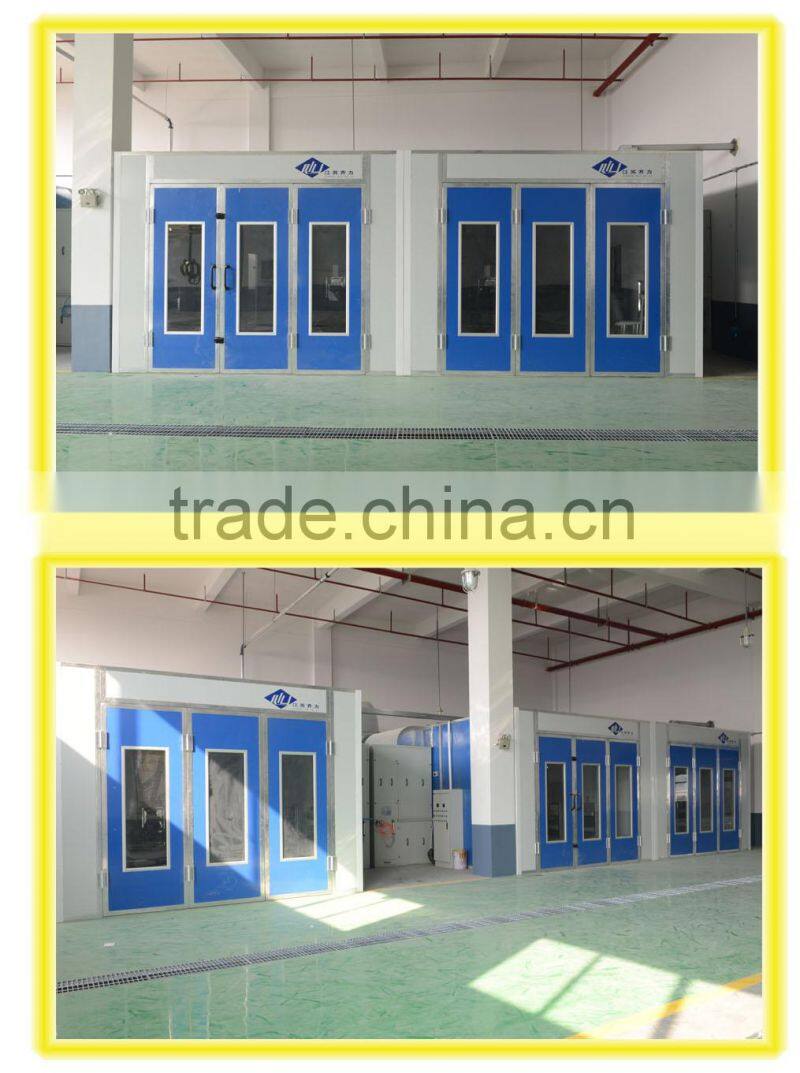

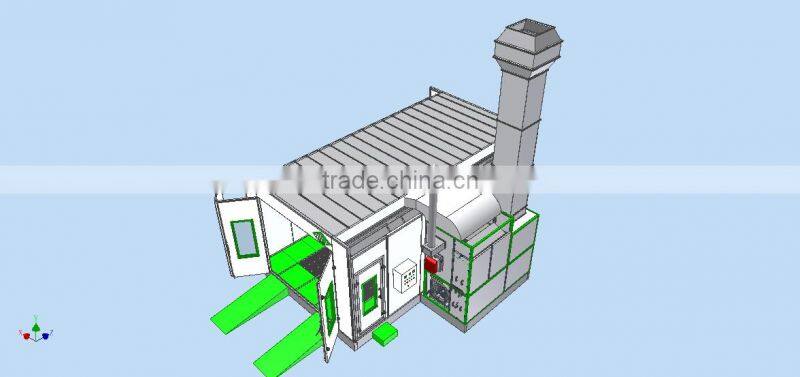

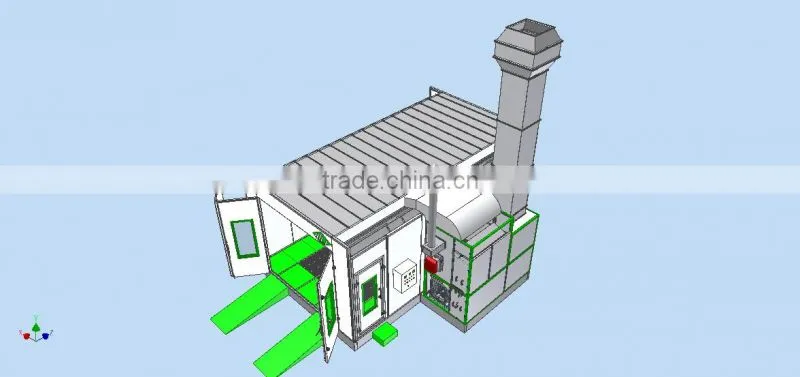

auto painting booth (CE,china)
No. |
Project name |
Technical requirement and related configuration |
1 |
External dimensions |
L7020×W4020×H3330 (mm) |
2 |
Internal dimension |
L6900×W3900×H2650(mm) |
3 |
Air volume |
22000 m³/h |
4 |
On-load wind speed |
0.25-0.3 m/s |
5 |
Air changes |
>220 times / h |
6 |
Max. working temperature |
50 °C |
7 |
Temperature rise time 20-60°C |
8-10 min |
8 |
Fuel consumption |
6-8 kg/times |
9 |
Total power |
30 KW |
10 |
Room materials |
Thickness: 60mm; width: 1170mm; internal and external 0.326 plain color coated sheet, double-sided sealing film and steel strip applied. |
11 |
Room insulation material |
EPS (weight of not less than 12g/cm3) |
12 |
Access door |
Flat plate door W3000*H2600 is adopted, with three 0.6 plain color coated sheets applied internally and externally, with Aluminum corners applied, and with nylon handles, concealed pins and cast steel hinges configured. |
13 |
Safety side door |
W750*H1800; one leaf, nylon handle and pressure lock are configured. |
14 |
Air induction and exhaust way |
Air induced at upper side and exhausted from upper rear |
15 |
Air supply and exhaust fan |
Two 3KW outer-rotor fans are applied to supply air and one 5.5KW series fan to exhaust air. |
16 |
Heated air circulation air damper |
Imported electric air damper |
17 |
Air duct |
Exhaust duct is made of 0.6mm galvanized plate and is of ribbing square structure of 600*600*1000, equipping with three sections of air exhaust straight ducts and one elbow |
18 |
Accessories |
Shell adopts 1.0mm galvanized plate internally and 0.5 mm galvanized plate externally; air intake fan is equipped with air intake filter at front, and adopts imported fuel burner, and stainless steel heat exchanger heating box, with oil tank, oil pipes, and oil tank brackets configured |
19 |
Base |
Its height is 280mm; galvanized sheet used to form a shape + rectangular tube is applied; frame around and longitudinal and lateral beams galvanized |
20 |
Ground screen and diamond plate |
Two rows of ground screens, 30*4 flat iron, 8mm twist steel electro galvanized, glass fiber filtering, and three rows of diamond plates are applied |
21 |
Slope platform |
Luxury slope platform painted completely (1800*750mm* two blocks) |
22 |
Overhead parts |
They are made of galvanized sheet; top screen C-shaped steel iron-through pipe is electrically galvanized; imported 600G top cotton is configured |
23 |
Top plate |
0.8 galvanized plate is used; top plate bracket is made of 40*80 square tube |
24 |
Lighting lamps |
Top side lamps consists of thirty-two 36W fluorescent tubes; waist lamp is composed of twelve 36W fluorescent tubes |
25 |
Structural parts |
Room corners are covered with aluminum alloy materials; all U-shaped grooves and slots are made of 1.2 galvanized sheet. |
26 |
Electric appliance control cabinet |
Paint spray, heating paint spray, drying temperature and time, power supply emergency stop, and temperature limit etc. are required |
27 |
Environmental protection device |
Dry activated carbon environmental protection device (optional) is used |
