Specifications
petitive price and assure quality2.CE and ISO approved
3. easier operate.

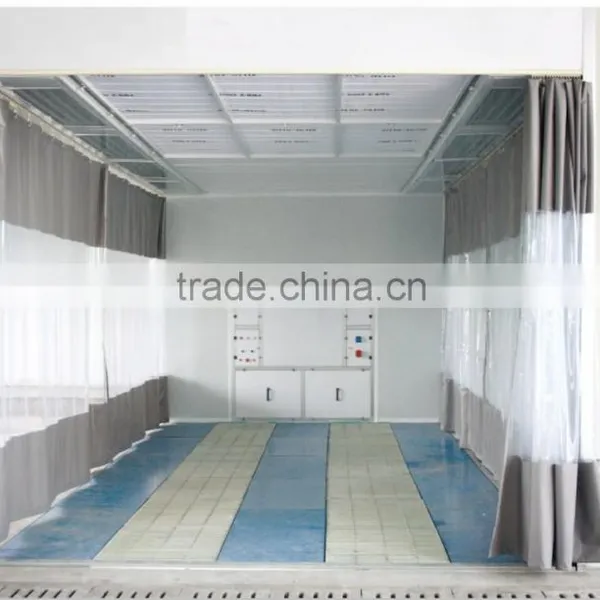

curtain paint booth (CE,china)
Features:
1. Air entersfrom filtered plenum, exhausted outside
2. The roof with filter holder and light
3. with ceiling, lighting, curtain, but w/o basement
4. do easy base painting . There is filter net and lights in the ceiling. Simple paint working can be operated. (Baking paint function is optional.)
5. Exhaust out through channel; with ceiling filter, lighting and curtain;
6. In the manner of going downward, the air is exhausts out through channel and filter;
Specification :
Type: YDW5.6M
1.Internal dimension(L*W*H)mm:7000*4000*2650 (Standard )
2.Air capacity : 20350 m3/h
3.Painting wind speed : 0.2m/s
4.Lighting:800 Lux . Top light illumination using the method, each eight lamp, this structure soft light, bright light, and the light intensity of 800Lux more. Panasonic lamp lighting lamps for lighting, ballast ballasts, stable performance and long service life.
5.Filtration efficiency:98%
6.Total power: 2*3 KW
7.Air pressure: 815 pa
8.Paint fog treatment methods :dry
9.Use of EPS colored steel composite flame retardant wall board
10.Flame retardant PVC materialmade with white curtains compartment, flexible and easily slid the envelope or artificialimplementing open.
11.Purification system : three purification filter , using the Italian system, flame resistance AR-600, can effectively capture dust diameter greater than 5um industry , the entire filtration system dust holding capacity, low resistance, long life, up to 95% filtration efficiency .
12.Air supply system : according to the spray booth sectional wind days at 0.2m / s requirements , Q = 20160m3 / h, taking into account the loss of air volume to take the total air volume of 20350 m3 / h, even considering wind farm and other factors, set up a set of air supply system , the blower with the introduction of the Siemens technology to produce the outer rotor , double inlet centrifugal fans , this fan with galvanized sheet molding, air volume, stable performance
13.Mist treatment system : using activated carbon adsorption filter and two glass fiber filter mat be mist , gas processing, so as to ensure compliance with the relevant national emissions standards .
14.Control system: electronic devices assembled using domestic intelligent control box , control box with high accuracy , full-featured , easy to operate, safe and reliable.
vide documentation:
Provide equipment manual, electrical schematics when commissioning and acceptance
16.Quality assurance:
Our manufactured products are rigorously tested. From the product design process, the assessment requirements, as well as the supply of raw materials, manufacturing, quality system according to the present sound ,installation and inspection of the implementation of the program file.
17. Service commitment:
The Company products year warranty and lifetime service, preferential wearing parts.
