Ceramic Roller Rod Extruder Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Weida
Model Number:
TCJ310
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiangtan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ground Tile ExtruderNegotiableMOQ: 1 Set -
Dental Handpiece, Mircomotor Handpiece, Brushless MircomotorNegotiableMOQ: 1 Set
-
Mircomotor Handpiece, Nail Beauty Machine, Nail Polish MachineNegotiableMOQ: 1 Set
-
Mircomotor Handpiece, Nail Beauty Machine, Nail Engrave Machine, Nail Polish MachineNegotiableMOQ: 1 Set
-
Vacuum Extruder for Roof Tile, Split BrickNegotiableMOQ: 1
Place of Origin
Hunan, China
Brand Name
Weida
Model Number
TCJ310
Specifications
1 Kiln roller making2 Special ceramic making
3 capacity 4-6T/H
4 Power:55KW

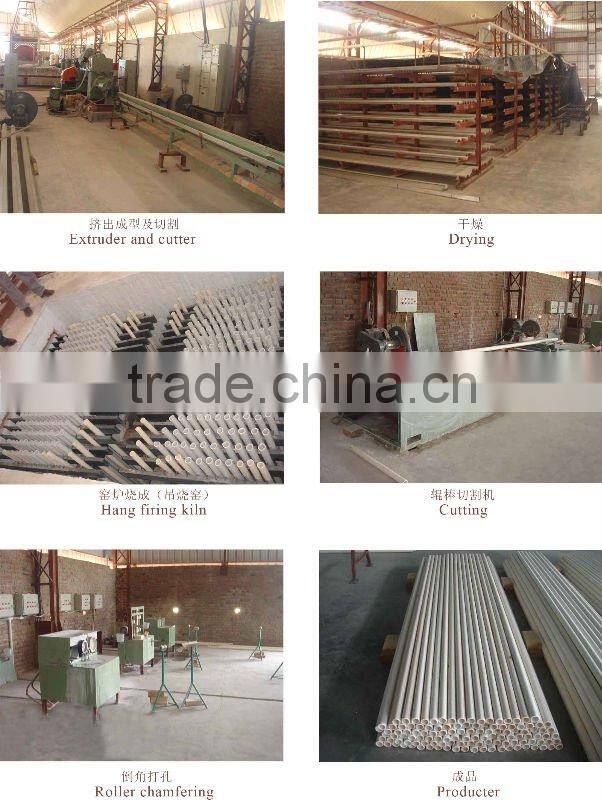

TCJ 350 vacuum extruder is our patent prodcut, used to produce ceramic roller rod, electric poclains, floor and wall tiles(split brick).; Load and unload hollow bricks, refrctory materials, waste water tubes, roofing tiles.
The machine is equipped with vacuum pump to removes the air from the clay, improve the plastic and elastic of clay. The R. P. M of mixing auger and extruding auger is driven by variable frequency variable speed motor respectively, the R. P. M is adjustable per your production's requirement.
| Data | Variable |
| Capacity | 4-6t/h |
| Diameter of extruding screw | φ350mm |
| Pressure of extudsion | ≥3MPa(adjustable) |
| air clutch working press | 0.5-0.8MPa |
| Vacuum degree | 98kpa |
| Motor power | 55kw |
| Overall size | About 4566×1950×1413mm |
| Net weight | 7000kg |
