Ground Tile Extruder
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Ground tile
Brick Raw Material:
Clay
Processing:
Brick Production Line
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiangtan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dental Handpiece, Mircomotor Handpiece, Brushless MircomotorNegotiableMOQ: 1 Set -
Mircomotor Handpiece, Nail Beauty Machine, Nail Polish MachineNegotiableMOQ: 1 Set
-
Mircomotor Handpiece, Nail Beauty Machine, Nail Engrave Machine, Nail Polish MachineNegotiableMOQ: 1 Set
-
Vacuum Extruder for Roof Tile, Split BrickNegotiableMOQ: 1
-
Combined Extruder for Red Brick (JK Series)US$ 888 - 8,888MOQ: 1 Set
Type
Other, Ground tile
Brick Raw Material
Clay
Processing
Brick Production Line
Method
Vacuum Extruder
Automatic
Yes
Capacity
4~6T/H
Place of Origin
Hunan, China
Brand Name
Weida
Model Number
TCJ350
Power
55
Specifications
1 Glazed tile extruder2 unqiue technology in China
3 split tile extruder extruder

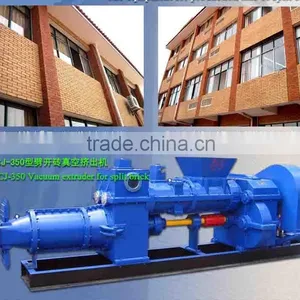

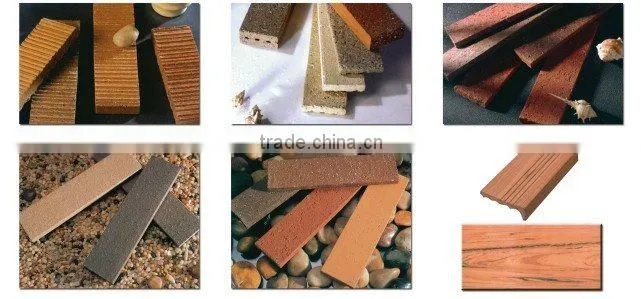

TCJ 350 vacuum extruder is our patent prodcut, used to produce groud tile such as brick paver, wood brick, wood tiles,brick flooring and so on.
The machine is equipped with vacuum pump to removes the air from the clay, improve the plastic and elastic of clay. The R. P. M of mixing auger and extruding auger is driven by variable frequency variable speed motor respectively, the R. P. M is adjustable per your production's requirement.
| Data | Variable |
| Capacity | 4-6t/h |
| Diameter of extruding screw | φ350mm |
| Pressure of extudsion | ≥3MPa(adjustable) |
| air clutch working press | 0.5-0.8MPa |
| Vacuum degree | 98kpa |
| Motor power | 55kw |
| Overall size | About 4566×1950×1413mm |
| Net weight | 7000kg |
