Help CenterCeramic Ball Machine
Related Products
Specifications
1 full auto operation2 high pressure
3 ceramci ball press
4 low energy consumption

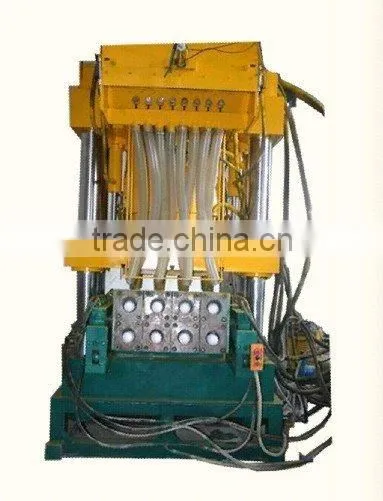

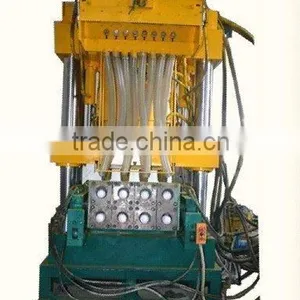

The machine used to press ceramic ball ,grinding ball ,high aluminum ball.
It's adopted 3 beam 4 colum bar sleeve structure with pre-tighten and compact structure.
Ejection device is adopted sngle cylinder 4 ejectors, controrlled by hydraulic press system. Well designed a adobe thickness inspect and adjusting device for more convenience and relaible running. Extremely large work plaform, could produce superior big size tiles or many normal tiles per time. Most key parts like full closed hydraulic system, cooling device, main sealing, hydrualic press component etc. Are daopted world famous brand products to gurantee the high quality and perfect performance.
The movement of the plunger under the servo closed-system control is steady and reliable. The high PLC conrol system and man-maching operation system enable working parameter and state adjust arbitary.
| Title | Unit | Parameters |
| nominal pressure | KN | 10000 |
| Max.die area | mm2 | 1400x800 |
| Ejector force | KN | 150 |
| Max. stroke of moving beam | mm | 150 |
| Clolumn clearance | mm | 1480 |
| Max. materil filling depth | mm | 40 |
| Max. working pressure of oil tank | Mpa | 30.1 |
| Hydraulic system working pressure | Mpa | 14.5 |
| Motor power | KW | 55 |
| Working cycle time | Time/min | ≤18 |
| pressurize time in working period | times | 2 or 3 |
| Weight | T | 35 |
