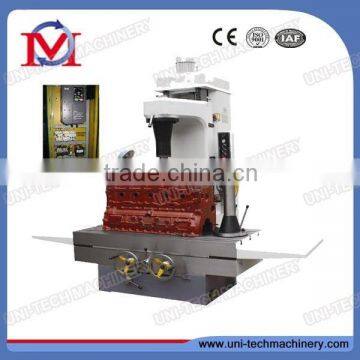

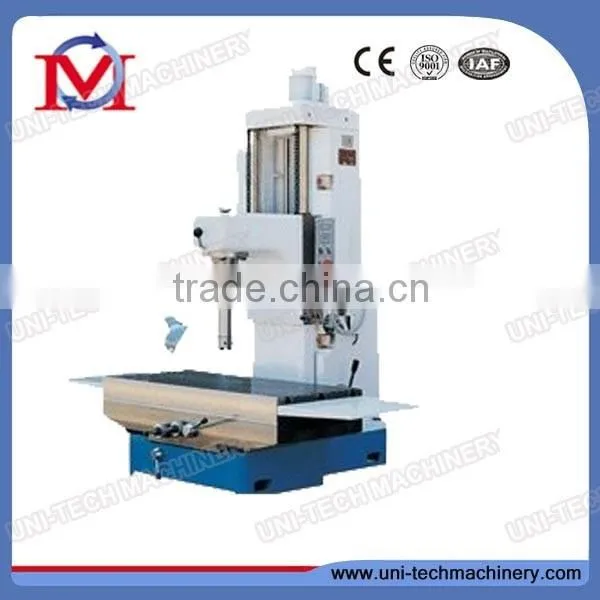

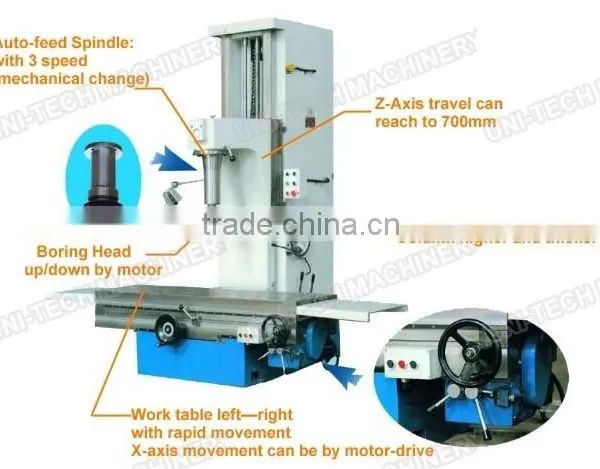

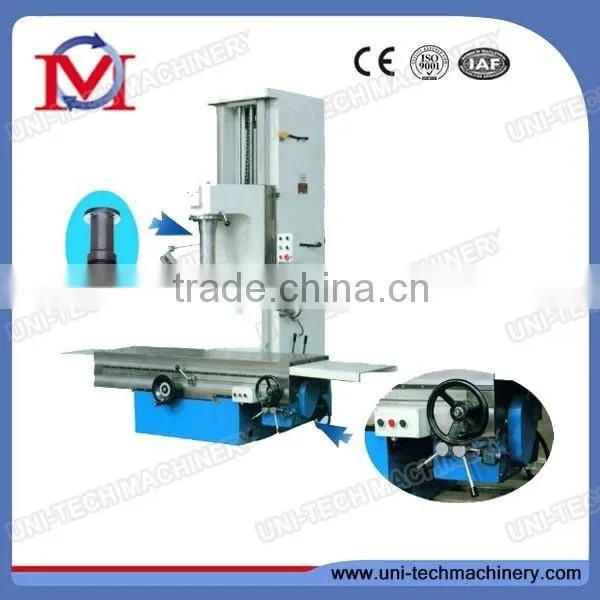

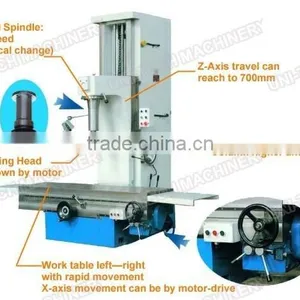

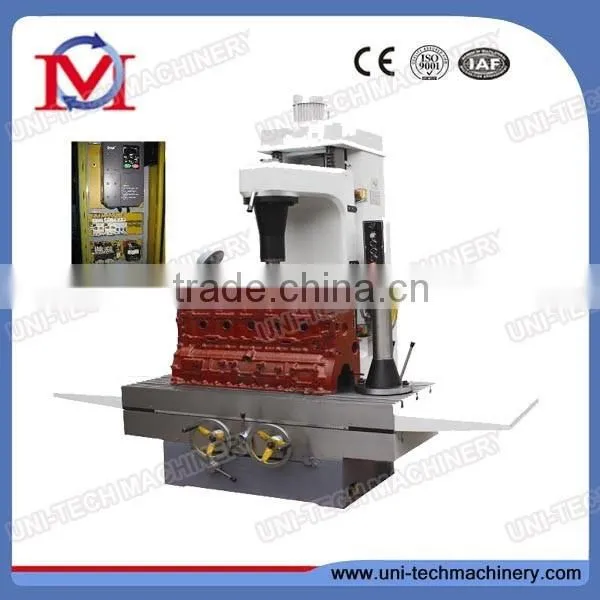

T8018A Cylinder boring machine
Main Features of T8018A Cylinder boring machine :
The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
1.boring cylinders of car,coach,tractor
2.Special milling function.
3.Longitudinal table motion.
Differences of three different models;
T8018A: mechanical-electronic drive and spindle speed frequency changed speed variation.
T8018B: mechanical drive.
T8018C: used for processing special heavy motor cylinders
Specification of T8018A Cylinder boring machine :
| Main Specifications | T8018A | T8018B | T8018C |
| Processing Diameter | 30-180 | 30-180 | Φ42-Φ180 mm |
| Max Boring Depth | 450 | 450 | 650mm |
| Spindle Speed r/min | Infinitely variable | 175,230,300,350,460,000 | 175,230,300,350,460,000 |
| Spindle Feed mm/r | 0.05,0.10,0.20 | 0.05,0.10,0.20 | 0.05,0.10,0.20 |
| Main Motor Power kw | 3.75 | 3.75 | 3.75 |
| Overall Dimensions mm(L x W x H) | 2000 x 1235 x 1920 | 2000 x 1235 x 1920 | 2680×1500×2325mm |
| Packing Dimensions mm(L x W x H) | 1400 x 1400 x 2250 | 1400 x 1400 x 2250 | 1578×1910×2575 mm |
| N.W/G.W kg | 2000/2200 | 2000/2200 | 3500/3700 |

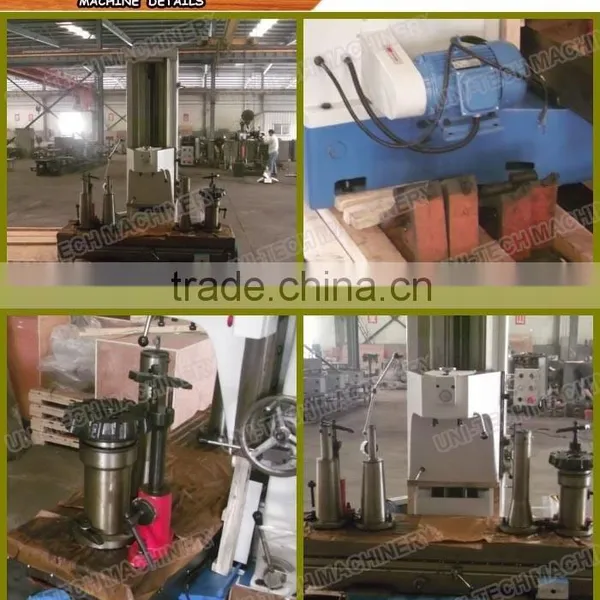

Machine details of T8018A Cylinder boring machine :
Production process of T8018A Cylinder boring machine :
Contact person:Anna Wang
SKYPE:annatech1
QQ:895433923
Phone: 0086-15163279908
Customized services
We accept customized services around the world
Afer-sale services
1.Technical support online service provided.
2.Technical files service provided.
3.Spare parts replacement and repair service provided.
4.Questions will be replied within 24 hours
Every month, we will export almost 500 sets machine in the worldwide. We think we can give you the most comprehensive support not only service but also techniques.Because we are a know-how machinery expert.
View more about
PAYMENTS:
1.T.T 30% before production, T.T 70% after the BL copy
2.L/C at sight.
COLOR, VOLOTAGE, POWER according to your requirements .
If you have any questions, please don't hesitate to contact me.
skype:live:linda_8858
Mobile: 15854684953
