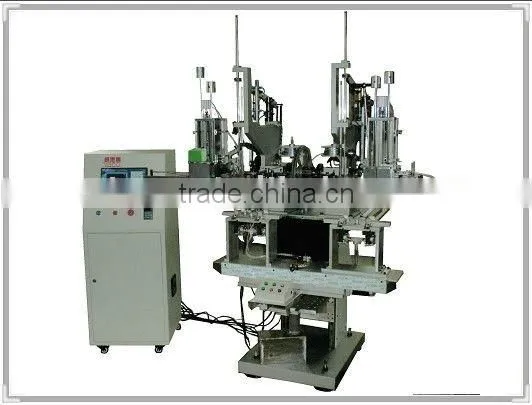

Aluminium Broom Making Machine VIP-4A2H003
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, cloth brush/toilet brush/other brush
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
xiaolan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Broom/brush Flagging and Trimming Machine VIP-ZDHP01NegotiableMOQ: 1 Piece -
4 Axis Broom Brush Tufting Machine, VIP-4A2H003NegotiableMOQ: 1 Piece
-
Automatic Flagging And Trimming Machine, VIP-ZDHP01NegotiableMOQ: 1 Piece
-
Machine for Making Plastic BroomsUS$ 8,000 - 15,000MOQ: 1 Piece
-
Brush Broom Plastic Machine for Making Brooms VIP-3A1H001 Quality ChoiceUS$ 8,000 - 15,000MOQ: 1 Piece
Condition
New
Product Type
Other, cloth brush/toilet brush/other brush
Place of Origin
Guangdong, China
Brand Name
VISCO
Model Number
VIP-4A2H003
Specifications
Aluminium Broom Making Machine 4-axis 2 tufting head,is used to make cloth brush, toilet brush and other brushAluminium Broom Making Machine VIP-4A2H003
| Standard Working Area of Working Table | X-Axis*Y-Axis=350mm*180mm,(Maximum size customized: 500mm*500mm) |
| The working table is composed of Straight-line guide rail and ball screw with high precision, which is quite stable and durable. | |
| Type of Brush Handle | cylindrical shape, with flat and curved surface. |
| Material of Brush Filaments | PP, Nylon, copper wire, stainless steel wire, bristle |
| Available Items | With 4-axis 2 tufting head,is used to make cloth brush, toilet brush and other brush with flat and curved surface. |
| Length of Filaments(Outside Holes) | 60mm-120mm |
| Diameter of Filaments | 0.08mm-1.2mm |
| Diameter of Holes | 3.5mm-7mm |
| Colors of Filaments | Either single color or 2 colors |
| Maximum Tufting Speed | 6 holes per second |
| Specifications of Machine Body | 1.5M*1.5M*2.0M |
| Motor(Power System) | With step-motor by default; also we could use servo-motor instead, if required by customer. |
| Data Input for Tufting Positions | Teach-Mode or Digits-Type |
| Touchable Screen | 5.7" single color LCD screen, could be available in various languages, as required by client; touch-switch with good feels, high reliability and long service life, and each switch function on the interface descripted in Chinese & English, which is quite simple and convenient. |
| Speed Ajusting | Frequency-conversion stepless-adjustable speed |
| Qty of Programs Saved | It saves totally 2000 programs 100,000holes for making different brushes |
| Weight | about 800kgs |
| Programming | Computer Integrated Digital Controll stysterm, exclusively delevoped for tufting with high precision,high stability and high storage, which is quite convenient. |
| Power Supply | 3-phase 380V,or single-phase 220V, 50-60Hz, 1.5KW |
| Replaceable Grippers | FMS type, Operator could make other kinds of brushes, as long as the changes clamps. |
| Tufting Method | "flat wire" or "staple" |
| Packing | Wooden case |
