4 Axis Broom Brush Tufting Machine, VIP-4A2H003

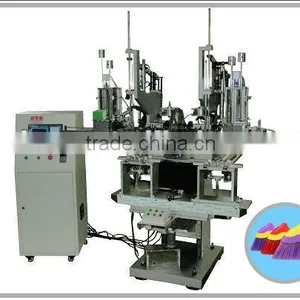

4 Axis Broom Brush Tufting Machine, VIP-4A2H003 thumbnail-1

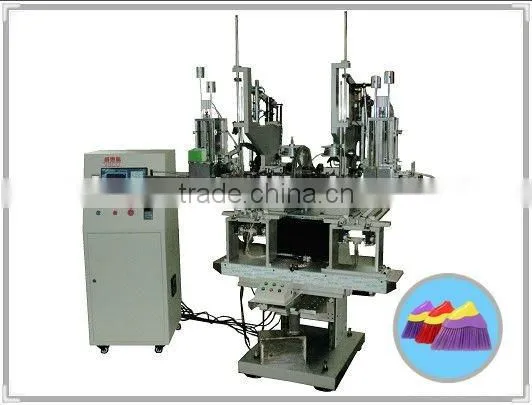

4 Axis Broom Brush Tufting Machine, VIP-4A2H003 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VISCO
Model Number:
VIP-4A2H003
Contact Supplier Request Quote Chat Now
Zhongshan Visco Commodity Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAOLAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name VISCO
Model Number VIP-4A2H003

Specifications

Broom Brush Tufting Machine
1. CNC Contral
2.Available In Various Languages
3. Two Working Table

  4 Axis Broom Brush Tufting Machine



Standard Working Area of Working Table x-Axis*Y-Axis=350mm*180mm,(Maximum size customized: 500mm*500mm)
The working table is composed of Straight-line guide rail and ball screw with high precision, which is quite stable and durable.
Type of Brush Handle cylindrical shape, with flat and curved surface.
Material of Brush Filaments PP, Nylon, copper wire, stainless steel wire, bristle
Available Items With 4-axis 2 tufting head,is used to make cloth brush, toilet brush and other brush with flat and curved surface.
Length of Filaments(Outside Holes) 60mm-120mm
Diameter of Filaments 0.08mm-1.2mm
Diameter of Holes 3.5mm-7mm
Colors of Filaments Either single color or 2 colors
Maximum Tufting Speed 6 holes per second

Specifications of Machine Body 1.5M*1.5M*2.0M
Motor(Power System) With step-motor by default; also we could use servo-motor instead, if required by customer.
Data Input for Tufting Positions Teach-Mode or Digits-Type
Touchable Screen 5.7" single color LCD screen, could be available in various languages, as required by client; touch-switch with good feels, high reliability and long service life, and each switch function on the interface descripted in Chinese & English, which is quite simple and convenient.
Speed Ajusting Frequency-conversion stepless-adjustable speed
Qty of Programs Saved It saves totally 2000 programs 100,000holes for making different brushes
Weight about 800kgs
Programming Computer Integrated Digital Controll stysterm, exclusively delevoped for tufting with high precision,high stability and high storage, which is quite convenient.
Power Supply 3-phase 380V,or single-phase 220V, 50-60Hz, 1.5KW
Replaceable Grippers FMS type, Operator could make other kinds of brushes, as long as the changes clamps.
Tufting Method “flat wire” or “staple”
Packing Wooden case
