Home > Manufacturing & Processing Machinery > Machinery for Garment, Shoes & Accessories > Sewing Machine > Yamato Industrial Sewing Machine

Yamato Industrial Sewing Machine

Name: Yamato Industrial Sewing Machine
Brand: qinme
SKU: 107260943
Availability: InStock

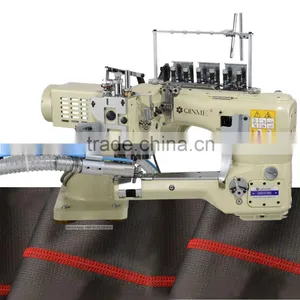

Yamato Industrial Sewing Machine thumbnail-1

Yamato Industrial Sewing Machine thumbnail-2

Yamato Industrial Sewing Machine thumbnail-3

Yamato Industrial Sewing Machine photo-1

Yamato Industrial Sewing Machine photo-2

Yamato Industrial Sewing Machine photo-3

US$ 1,999 - 3,500 MOQ: 2 Sets

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Industrial Sewing Machine, 4 needle 6 thread feed off the arm

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Qinme Sewing Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Industrial Sewing Machine, 4 needle 6 thread feed off the arm

Place of Origin Guangdong, China

Brand Name qinme

Model Number QM-6200-01MR

Stitch Formation Chain Stitch

Mechanical Configuration Off-the-Arm

Max. Sewing Speed 3800rmp

Max. Sewing Thickness 1-10mm

Stitch Length 4.8mm, 5.2mm, 5.6mm, 6.0mm

Power 550w

Overall Dimensions 420mm(L)*300mm(W)*410mm(H)

Feed Mechanism Multiple

Certification ISO9001:2008

After-sales Service Provided Overseas service center available

Dear visitors: please note this is not orignal yamato industrial sewing machines, we just learned the technology to improve a new sewing machine. We have 4 models for this your choose.

Model (6200series)	Material trimmer	Needle distance	Pressure Foot Lift
QM-6200-12MS	double	6.0mm(15/64 inches)	Max. 6mm at the highest point of needle clamp
QM-6200-01MR	single	5.2mm(13/64 inches)	Max.8mm
QM-6200-01MS	single	6.0mm(15/64 inches)	Max.8mm
QM-6200-12MR	double	5.2mm(13/64 inches)	Max. 6mm

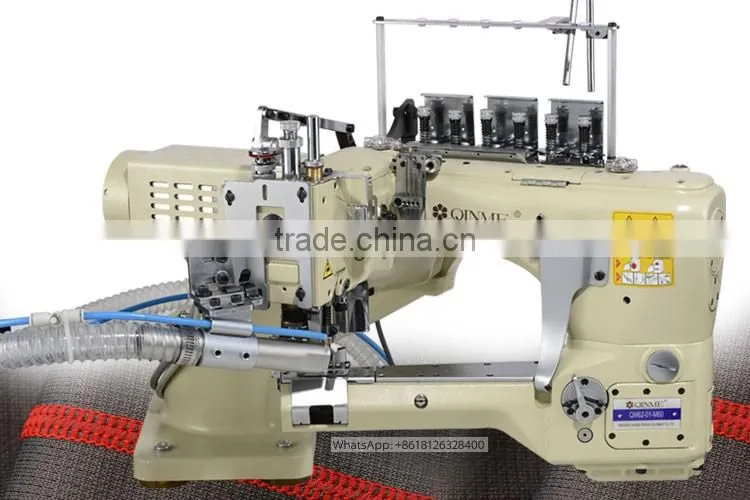

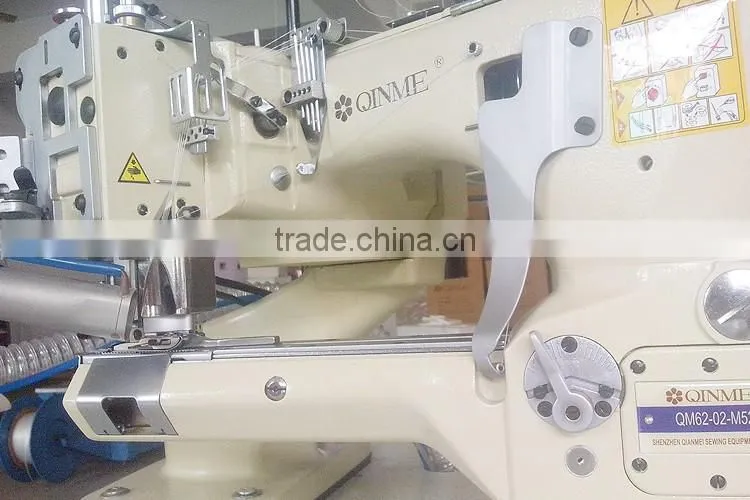

The following is QM-6200-01MR

Features:

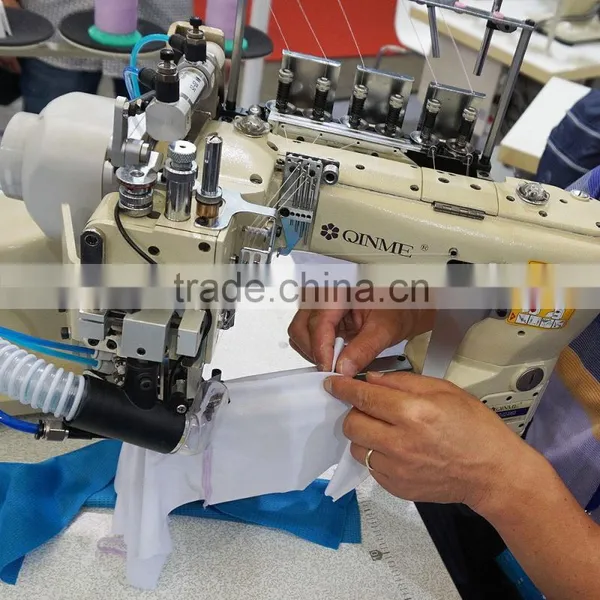

1. Its highly specialized in sewing sportswear and underwears,etc.

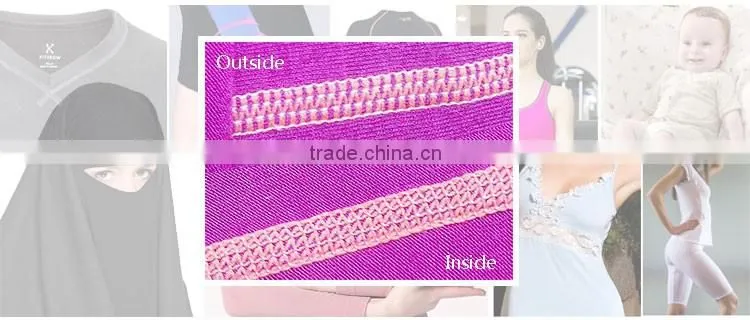

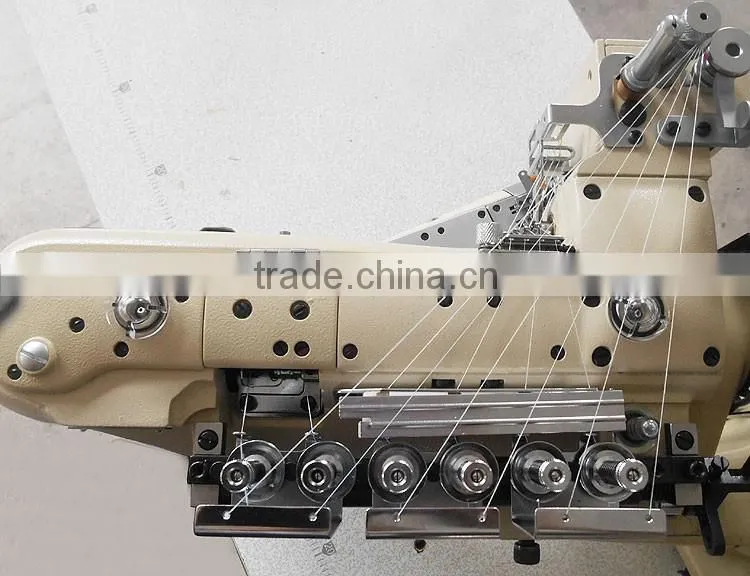

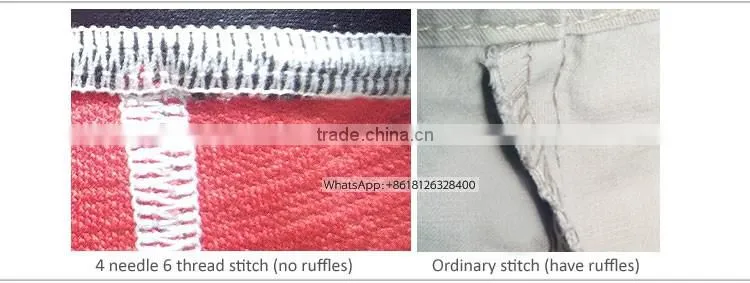

2. Its 4 needle 6 thread,can sewing exquisitely and artisticly.
3. With single or double cutting knife attached on machine,leftover materials can be cutted quickly and make edges neatly.
4. Its powerful,durability,precisely,and affordability.

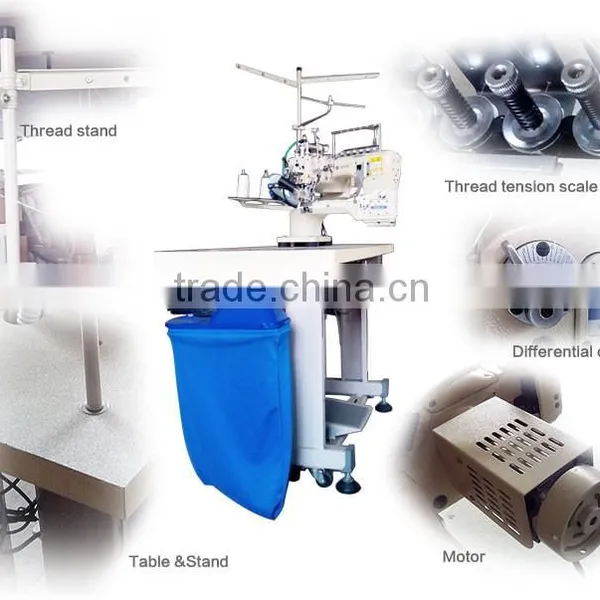

5. Taiwan shokei motor

Application:

Our machines are well designed for sewing sport clothing, canvas, shoes, handbag, anorak, bag, golf bag, swimming suit, belts, magic tape, skirt,underwear, mattresses, tents, and sails, as well as jeans and other garments.

Specifications:

Description: High speed feed-off-the-arm machine for flat seaming(oil-free)
Dimensions: 420mm(L)x300mm(W)x310mm(H)
Working space: Cylindrical shape of 210mm in front of needle drop
Weight: 23kg (machine head only)
Stitch Type: ISO 406, 605, 608
Sewing Speed: Up to 3800rmp, 3000rmp in usual
Stitch Length: 1.6-2.5mm The number of stitches 10-16 stitches per inch(25.4mm) 12-19 stitches per 30mm
Needle System: Sewing needle: Organ FL x 118GCS,, Groz-Beckert UY118GKS
Retainer needle: Organ FLG-1, FLF-8(with scarf)
Groz-Becket 36211.36211A(with scarf) Feed Regulation: By lever
Differential Ratio: Max. normal differential:1.0:1.5
Max. reverse differential: 1.0:0.7
Lubrication: Automatically by gear pump
Lubrication oil: OIL NO.68
Capacity of Oil reservoir : Frame: about 100c
Cylinder: about 100cc
Circumference of Cylinder: 148mm at needle drop
Differential Feed regulation: By dial
Knives of Fabric Cutting: Both upper and lower knives made of special steel

Why us:

1. We focus on researching and producing sewing machine since 1993.
2. We passed ISO9001:2008 quality management system certification.
3. 5 master technicians available during business hours if you have any Questions.
4. We offer special design services to meet your personal demands.
Gross Weight:98.00Kg CBM: 0.38m³ Packaged by hard foams inside, and cardboard box outside.

Gross Weight:98.00Kg CBM: 0.38m³ Packaged by hard foams inside, and cardboard box outside. (head,base,motor GW.:58.00kg)

Videos:

1. https://youtu.be/7fR0HQ-OT6A
2. https://youtu.be/CSaI4r8JT60
3.https://youtu.be/qOqUohLwWhI
About Qinme:
Established in 1993, Shenzhen qianmei sewing equipment co.,ltd has more than 50 educated workers and 6 rich experienced engineers, and advanced equipments to ensure the production successfully daily. We focus on researching and manufacturing industrial sewing machines beginning with parts machining to complete machines under strict standard. Today, we have series 6200, 35800, 36800 to meet the different demands of our clients globally, so we set up OT-Shenzhen qinme sewing equipment co.,ltd for oversea business. visit for more details. Or contact us in any of questions.
