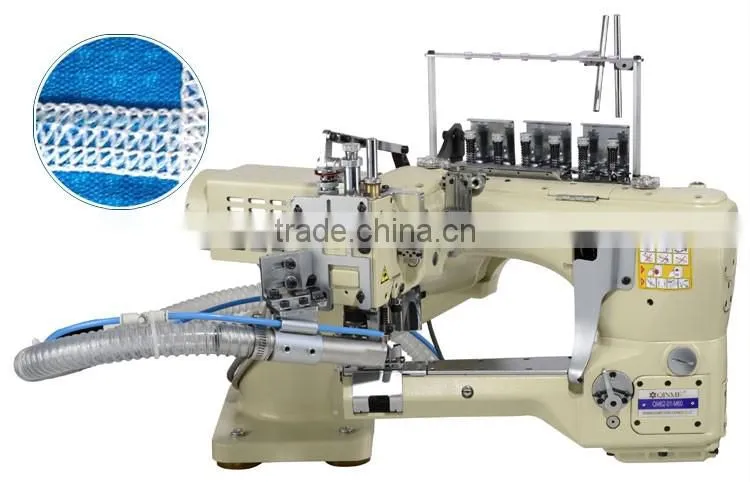

4 Needle 6 Thread off-the-arm Yamato 6200 Industrial Sewing Machine,Qinme industrial sewing machine
Model: 6200 series
(Including QM-6200-01MR, QM-6200-01MS, QM-6200-12MR, QM-6200-12MS) Four needle six threads, for light weight
materials, like sportswear, underwear.
Model: 35800SF1SF
Three needle six threads, heavy duty materials, Jeans, jackets, Taiwan Shokei motor

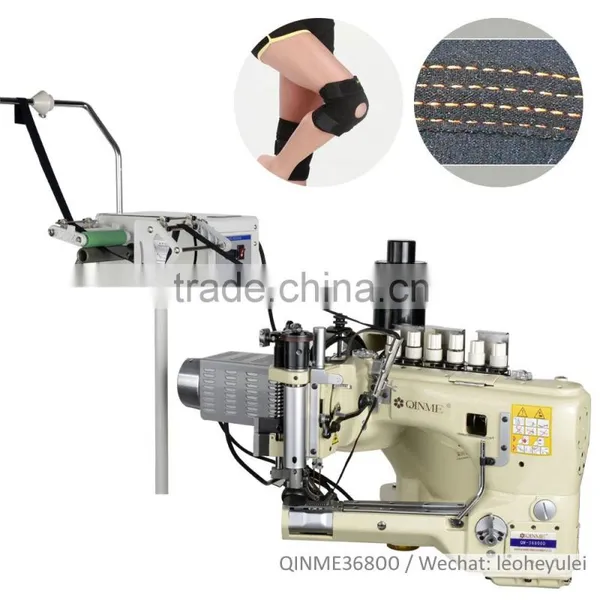

Model: 36800DF0SN
Four needle six threads, Presser foot lift Max 9mm, tape feeder available. For high thickness materials Jeans, labor
jacket, uniform.
Model: QM-6200-12MS
Four needle six thread sewing machine double fabric trimmer
Features:
1. Its highly specialized in sewing sportswear and underwears,etc.
2. Its 4 needle 6 thread,can sewing exquisitely and artisticly.
3. With single or double cutting knife attached on machine,leftover materials can be cutted quickly and make edges neatly.
4. Its powerful,durability,precisely,and affordability.
5. Taiwan shokei motor
Application:
Our machines are well designed for sewing sport clothing, canvas, shoes, handbag, anorak, bag, golf bag, swimming suit, belts, magic tape, skirt,underwear, mattresses, tents, and sails, as well as jeans and other garments.
Delivery time: within 3 working days
Warranty: 2 years
Specifications:
Description: High speed feed-off-the-arm machine for flat seaming(oil-free)
Dimensions: 420mm(L)x300mm(W)x310mm(H)
Working space: Cylindrical shape of 210mm in front of needle drop
Weight: 23kg (machine head only)
Stitch Type: ISO 406, 605, 608
Sewing Speed: Up to 3800rmp, 3000rmp in usual
Stitch Length: 1.6-2.5mm The number of stitches 10-16 stitches per inch(25.4mm) 12-19 stitches per 30mm
Needle System: Sewing needle: Organ FL x 118GCS,, Groz-Beckert UY118GKS
Retainer needle: Organ FLG-1, FLF-8(with scarf)
Groz-Becket 36211.36211A(with scarf)
Feed Regulation: By lever
Differential Ratio: Max. normal differential:1.0:1.5
Max. reverse differential: 1.0:0.7
Lubrication: Automatically by gear pump
Lubrication oil: OIL NO.68
Capacity of Oil reservoir : Frame: about 100c
Cylinder: about 100cc
Circumference of Cylinder: 148mm at needle drop
Differential Feed regulation: By dial
Knives of Fabric Cutting: Both upper and lower knives made of special steel
Model (6200series) |
Material trimmer |
Needle distance |
Pressure Foot Lift |
QM-6200-12MS |
double |
6.0mm(15/64 inches) |
Max. 6mm at the highest point of needle clamp |
QM-6200-01MR |
single |
5.2mm(13/64 inches) |
Max.8mm |
QM-6200-01MS |
single |
6.0mm(15/64 inches) |
Max.8mm |
QM-6200-12MR |
double |
5.2mm(15/64 inches) |
Max. 6mm |
Contact us Email: sales(at)
Gross Weight:98.00Kg CBM: 0.38m³ Packaged by hard foams inside, and cardboard box outside.
Videos:
1. https://youtu.be/7fR0HQ-OT6A
2. https://youtu.be/CSaI4r8JT60
3.https://youtu.be/qOqUohLwWhI
Our company
Established in 1993, Shenzhen qianmei sewing equipment co.,ltd has more than 50 educated workers and 6 rich experienced engineers, and advanced equipments to ensure the production successfully daily. We focus on researching and manufacturing industrial sewing machines beginning with parts machining to complete machines under strict standard. Today, we have series 6200, 35800, 36800 to meet the different demands of our clients globally, so we set up OT-Shenzhen qinme sewing equipment co.,ltd for oversea business. visit for more details. Or contact us in any of questions.
Contact
Ph/ whatsapp: +8618126328400
Wechat/skype: leoheyulei
Email:sales(at)
