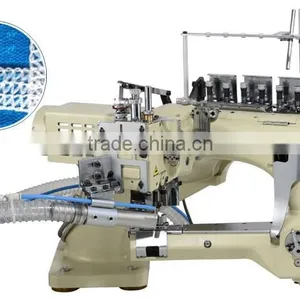

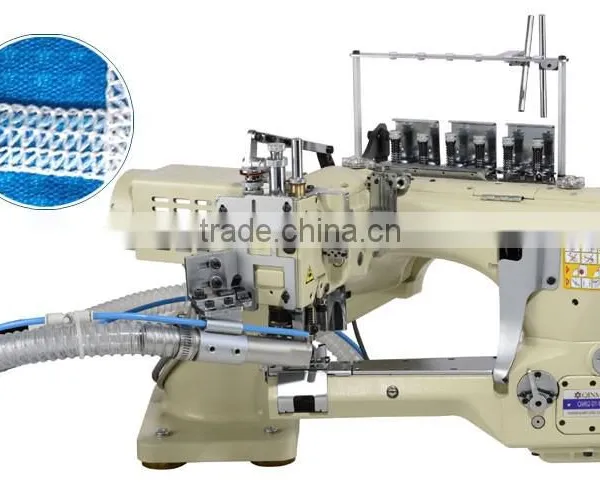

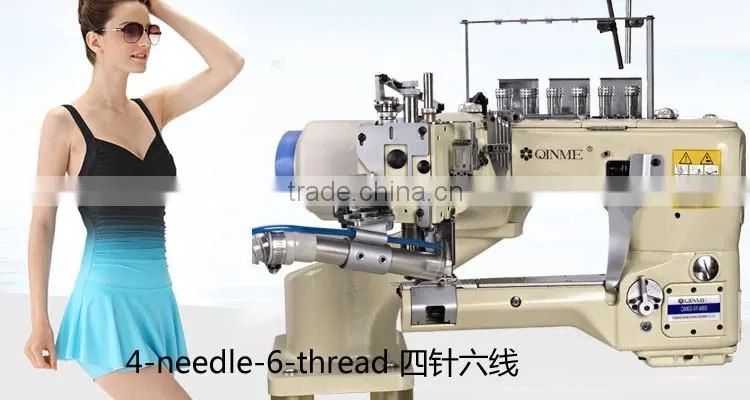

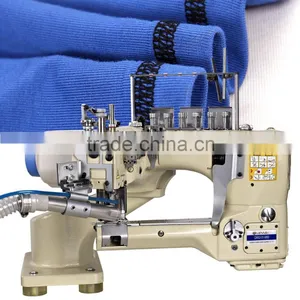

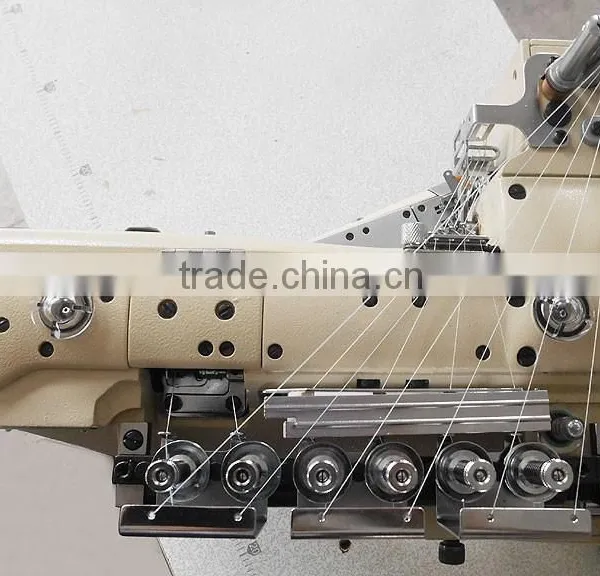

Yamato Industrial Sewing Machine 4 Needle 6 Thread Feed-off-the-arm
Four needle six thread sewing machine double trimmer
Model: QM62-01-M60
1. Its highly specialized in sewing sportswear and underwears,etc.
2. Its 4 needle 6 thread,can sewing exquisitely and artisticly.
3. With single or double cutting knife attached on machine,leftover materials can be cutted quickly and make edges neatly.
4. Its powerful,durability,precisely,and affordability.
Delivery time: within 3 working days
Warranty: 2 years
Specifications:
Model: QM62-01-M60
Description: High speed feed-off-the-arm machine for flat seaming(oil-free)
Dimensions: 420mm(L)x300mm(W)x310mm(H)
Working space: Cylindrical shape of 210mm in front of needle drop
Weight: 23kg(machine head only)
Stitch Type: ISO 406, 605, 608
Sewing Speed: Up to 3800rmp, 3000rmp in usual
Stitch Length: 1.6-2.5mm The number of stitches 10-16 stitches per inch(25.4mm) 12-19 stitches per 30mm
Needle System: Sewing needle: Organ FL x 118GCS,, Groz-Beckert UY118GKS
Retainer needle: Organ FLG-1, FLF-8(with scarf)
Groz-Becket 36211.36211A(with scarf)
Needle Distance: R:5.2mm(13/64inches) S: 6.0mm(15/64 inches)
Pressure Foot Lift: 01 03 15:Max.8mm, 03 07,12: Max. 6mm at the highest point of needle clamp
Feed Regulation: By lever
Differential Ratio: Max. normal differential:1.0:1.5
Max. reverse differential: 1.0:0.7
Lubrication: Automatically by gear pump
Lubrication oil: OIL NO.68
Capacity of Oil reservoir : Frame: about 100c
Cylinder: about 100cc
Circumference of Cylinder: 148mm at needle drop
Differential Feed regulation: By dial
Knives of Fabric Cutting: Both upper and lower knives made of special steel
Contact: Skype/Wechat: leoheyulei Ph/Whatsapp: +8618126328400
Package
Carton size: 67*37.5*49cm Gross Weight: 99.00Kg CBM: 0.38m³ Packaged by hard foams inside, and cardboard box outside.

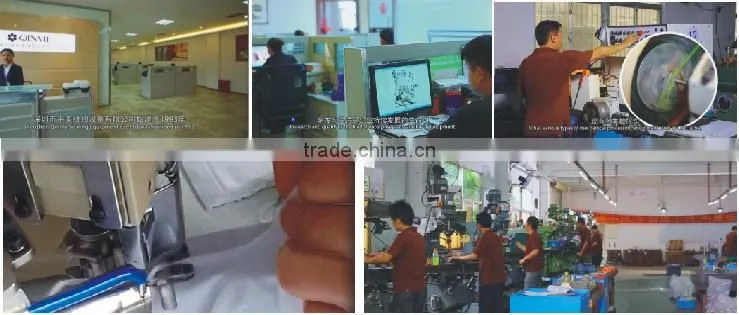

About us
Established in 1993, Shenzhen Qinme sewing equipment co.,ltd has been researching and manufacturing sewing machines for more than 20 years. Today, Qinme has one of the largest varieties of industrial, special equipment; from lockstitch machines for upholstery to specialty 4 needle 6 thread high speed interlock stitch machines for underwear, sports garments, curtains etc. Qinme has it all. Our heavy duty machines are well designed for sewing jeans,leather,canvas,webbing, parachutes,and tents,as well as other garments.
Qinme growing fast in recent years based on our R&D teams and CNC machining department which set up early. All our accessories and parts of sewing machine are produced by ourselves, we gained high reputation from clients. At the same time, We can offer CNC machining services to our customers if they need parts use for electronics,medical, aeronautical, automotive, even intelligent home.
With offices in Shenzhen China, Bangladesh, Pakistan, and agents throughout the world. QINME is able to supply and service the most reliable ,precisely and affordability machines and parts you need. We are looking for more agents from potential markets, welcome to visit us for Brand New High Copy 4 Needle 6 Thread off-the-arm Yamato 6200 Industrial Sewing Machine.
Contact
Ph/ whatsapp: +8618126328400
Wechat/skype: leoheyulei
sales(at)
