Home > Manufacturing & Processing Machinery > Machinery for Garment, Shoes & Accessories > Sewing Machine > Juki Sewing Machine

Juki Sewing Machine

Name: Juki Sewing Machine
Brand: juki
SKU: 107261021

US$ 1,000 - 6,000 MOQ: 5 Sets

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Industrial Sewing Machine, botton hole machine

Place of Origin:

Japan

Contact Supplier Request Quote Chat Now

Shenzhen Qinme Sewing Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

PORT OF SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Industrial Sewing Machine, botton hole machine

Place of Origin Japan

Brand Name juki

Model Number WK2036

Stitch Formation Other, Lock Stitch, differential

Mechanical Configuration Other, Flat-Bed, assemble

Max. Sewing Speed 4000rpm

Max. Sewing Thickness 5mm

Stitch Length 4mm

Power 550w

Overall Dimensions 40x40

Feed Mechanism Other, Other, feed arm off

Certification ISO9001:2008

After-sales Service Provided Overseas service center available

We have 3 models as following:

Model: 6200 series

(Including QM-6200-01MR, QM-6200-01MS, QM-6200-12MR, QM-6200-12MS) Four needle six threads, for light weight

materials, like sportswear, underwear.

Model: 35800SF1SF

Three needle six threads, heavy duty materials, Jeans, jackets, Taiwan Shokei motor

Model: 36800DF0SN

Four needle six threads, Presser foot lift Max 9mm, tape feeder available. For high thickness materials Jeans, labor

jacket, uniform.

Model: QM-6200-12MS

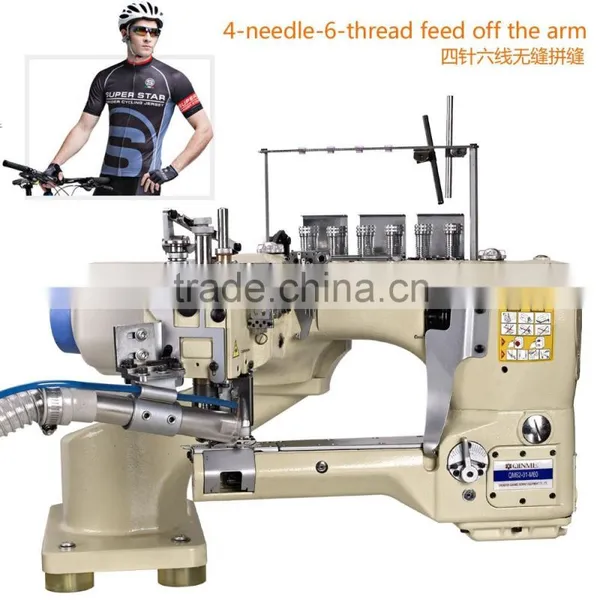

Four needle six thread sewing machine double fabric trimmer

Features:

1. Its highly specialized in sewing sportswear and underwears,etc.

2. Its 4 needle 6 thread,can sewing exquisitely and artisticly.

3. With single or double cutting knife attached on machine,leftover materials can be cutted quickly and make edges neatly.

4. Its powerful,durability,precisely,and affordability.

5. Taiwan shokei motor

Application:

Our machines are well designed for sewing sport clothing, canvas, shoes, handbag, anorak, bag, golf bag, swimming suit, belts, magic tape, skirt,underwear, mattresses, tents, and sails, as well as jeans and other garments.

Delivery time: within 3 working days

Warranty: 2 years

Specifications:

Description: High speed feed-off-the-arm machine for flat seaming(oil-free)

Dimensions: 420mm(L)x300mm(W)x310mm(H)

Working space: Cylindrical shape of 210mm in front of needle drop

Weight: 23kg (machine head only)

Stitch Type: ISO 406, 605, 608

Sewing Speed: Up to 3800rmp, 3000rmp in usual

Stitch Length: 1.6-2.5mm The number of stitches 10-16 stitches per inch(25.4mm) 12-19 stitches per 30mm

Needle System: Sewing needle: Organ FL x 118GCS,, Groz-Beckert UY118GKS

Retainer needle: Organ FLG-1, FLF-8(with scarf)

Groz-Becket 36211.36211A(with scarf)

Feed Regulation: By lever

Differential Ratio: Max. normal differential:1.0:1.5

Max. reverse differential: 1.0:0.7

Lubrication: Automatically by gear pump

Lubrication oil: OIL NO.68

Capacity of Oil reservoir : Frame: about 100c

Cylinder: about 100cc

Circumference of Cylinder: 148mm at needle drop

Differential Feed regulation: By dial

Knives of Fabric Cutting: Both upper and lower knives made of special steel

Model (6200series)	Material trimmer	Needle distance	Pressure Foot Lift
QM-6200-12MS	double	6.0mm(15/64 inches)	Max. 6mm at the highest point of needle clamp
QM-6200-01MR	single	5.2mm(13/64 inches)	Max.8mm
QM-6200-01MS	single	6.0mm(15/64 inches)	Max.8mm
QM-6200-12MR	double	5.2mm(15/64 inches)	Max. 6mm

Contact us Email: sales(at)

Gross Weight:98.00Kg CBM: 0.38m³ Packaged by hard foams inside, and cardboard box outside.

Videos:

1. https://youtu.be/7fR0HQ-OT6A

2. https://youtu.be/CSaI4r8JT60

3.https://youtu.be/qOqUohLwWhI

Our company

Established in 1993, Shenzhen qianmei sewing equipment co.,ltd has more than 50 educated workers and 6 rich experienced engineers, and advanced equipments to ensure the production successfully daily. We focus on researching and manufacturing industrial sewing machines beginning with parts machining to complete machines under strict standard. Today, we have series 6200, 35800, 36800 to meet the different demands of our clients globally, so we set up OT-Shenzhen qinme sewing equipment co.,ltd for oversea business. visit for more details. Or contact us in any of questions.

Contact

Ph/ whatsapp: +8618126328400

Wechat/skype: leoheyulei

Email:sales(at)
