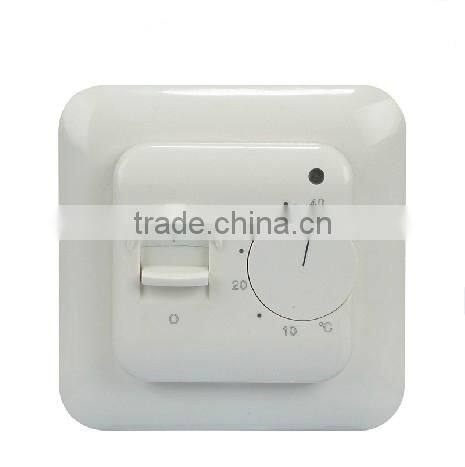

SAIPWELL SP-6000 Mechanical Floor Heating Thermostat

 SAIPWELL SP-6000 Mechanical Floor Heating Thermostat

 ♦Introduction

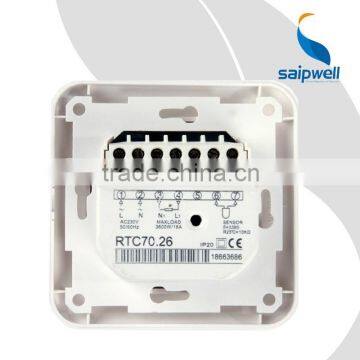

The RTC70.xx is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat. the thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

♦Application

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

♦Features

LED in dicator is light when heating is onwith manual switch and knob for easy operation On/off control output for heating device.

SAIPWELL SP-6000 Mechanical Floor Heating Thermostat

	Model	SP-6000
	Voltage	AC230V
	Power Consumption	5W
	Setting Range	4ºC ~ 45ºC
	Switching Differential	±0.5K
	Ambient Temperature	-5ºC ~ 50°C
	Protective Housing	IP20
	Housing Material	Self-exting uishing PC
	Floor Sensor	Rubber-thermoplastic NTC sensor
	The External Sensor	Cable length is 3m

  SAIPWELL SP-6000 Mechanical Floor Heating Thermostat

  SAIPWELL SP-6000 Mechanical Floor Heating Thermostat

SAIPWELL SP-6000 Mechanical Floor Heating Thermostat
