Product Details
| Place of Origin | Zhejiang, China | Brand Name | SAIPWELL | |
| Model Number | KTO11 | Usage | Other, Industrial, room thermostat | |
| Theory | Temperature Controller | Accuracy | 99.98% | |
| Temperature Range | 0-80 |
Product Description
Saipwell User-friendly room thermostat
Specification:
The cobinet bimetal thermostat for enclosure is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Technical Date:
| PIC | TECH OF Saipwell User-friendly room thermostat | |
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal | |
| Contact type | snap-action contact | |
| Contact resistance | < 10mOhm | |
| Service life | > 100 000 cycles | |
| Max. switching capacity | 250VAC, 10 (2) A | |
| 120VAC, 15 (2) A | ||
| DC 30W | ||
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 | |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² | |
| Mounting | clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series) | |
| Casing | plastic according to UL94 V-0, light grey | |
| Dimensions | 67*56*46mm | |
| Weight | approx. 90g | |
| Fitting position | variable | |
| Operating/Storage temperature | -20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F) | |
| Protection type | IP20 | |
If you want other temperature :
| Art. No | Seting range | Seting range | ||
| 01172.0-00 | contact breaker, normally closed | 0 to +60 °C | contact maker, normally open | 0 to +60 °C |
| 01172.0-01 | contact breaker, normally closed | -32 to +140°F | contact maker, normally open | -32 to +140°F |
| 01175.0-00 | contact breaker, normally closed | -10 to +50 °C | contact maker, normally open | -20 to +80 °C |
| 01175.0-01 | contact breaker, normally closed | -14 to +122°F | contact maker, normally open | -68 to +176°F |
| 01176.0-00* | contact maker, normally open | 0 to +60 °C | contact maker, normally open | 0 to +60 °C |
| 01176.0-01* | contact maker, normally open | -32 to +140°F | contact maker, normally open | -32 to +140°F |

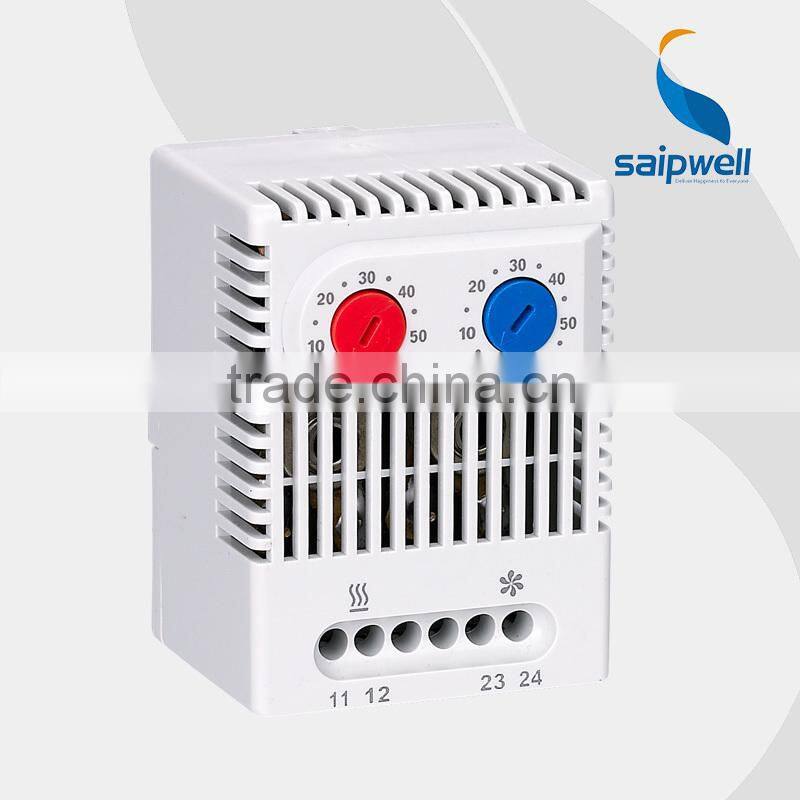

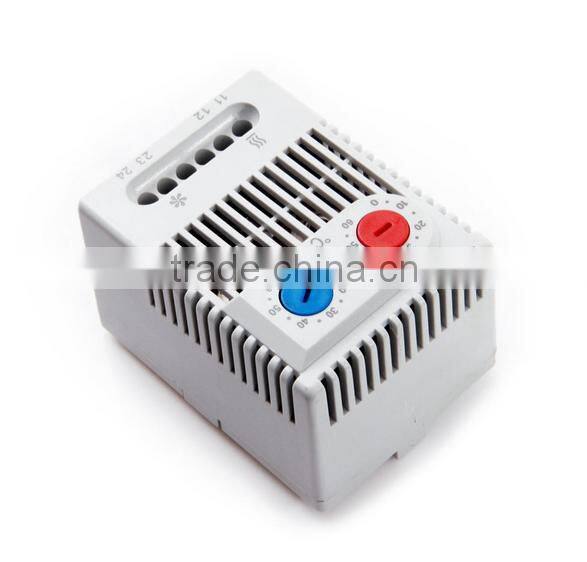

Product show:

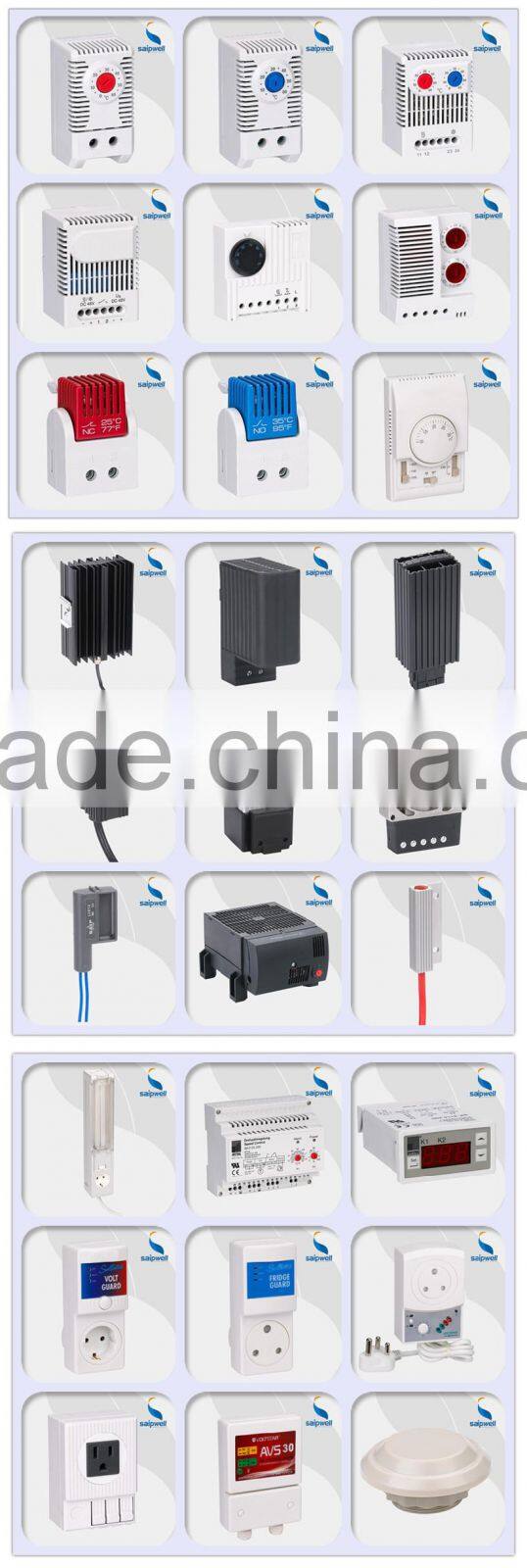

Similar Products:
Certificate:
Saipwell User-friendly room thermostat
Our company:
Shanghai Saipwell Electric Co., Ltd. is a manufacturer of Saipwell User-friendly room thermostat ,waterproof box and all kinds of waterproof boxes with wellequipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries.
Business Principle: To conduct business in a simple straightforward manner.
To manufacture, innovative products that bring convenience to its users.
