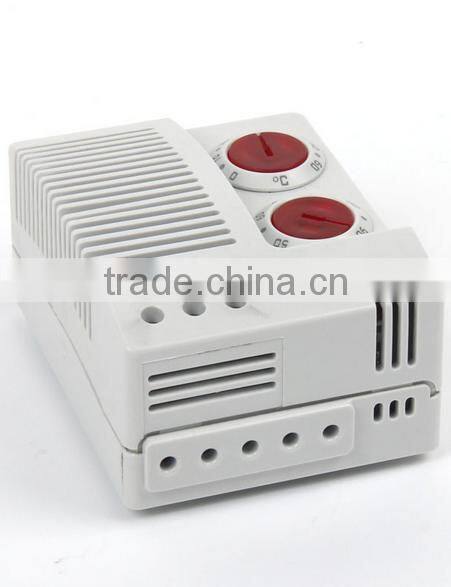

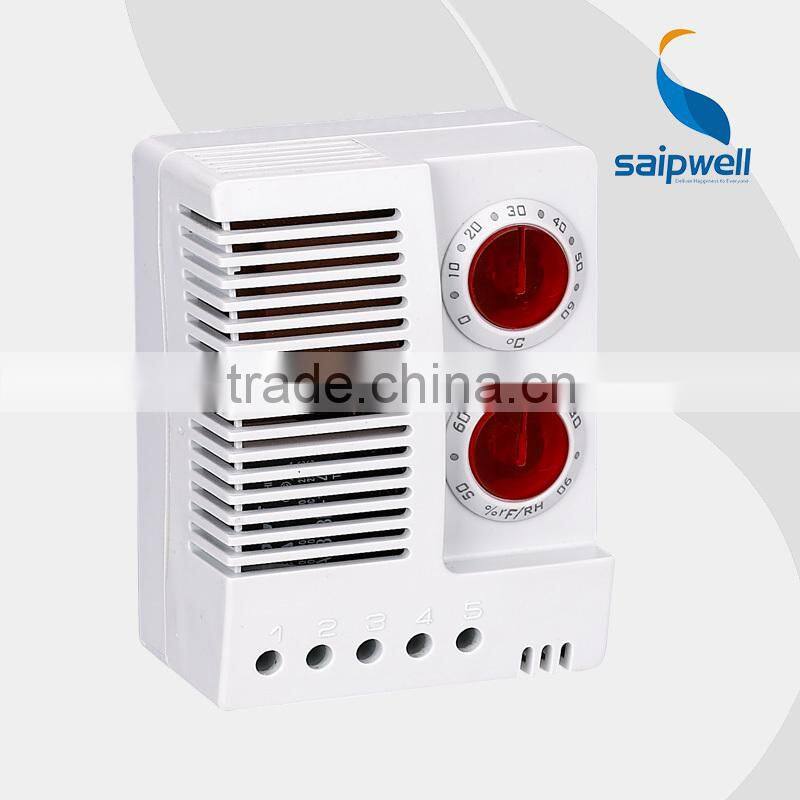

Saip/Saipwell high quality ETF012 electric Temperature Controller
We have variety of ETF012 electric Temperature Controller and we can try our best to meet all your needs.
Business Principle: To conduct budiness in a simple straightforward manner.
To manufacture,innovative products that bring converience to itsusers.
Specification:
electric Temperature Controller
Thermostat contact breaker for regulating heater.
Temperature and humidity controller contact maker for regulating of filter fans and heat exchangers or for switching singal devised when temperature limit has been exceeded.
The electric Temperature Controller and relative humidity in an enclosure with electric/electronic components, and turns on a heater (or alternatively, a fan) at either set point, helping prevent the formation of condensation in the enclosure.
The LED integrated in the adjustment knob on the active controller is lit when the
connected device is in operation.
Technical Date:
| PIC | TECH OF ETF012 electric Temperature Controller | |
|
Switch temperature difference |
7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal | |
| Contact type | snap-action contact | |
| Contact resistance | < 10mOhm | |
| Service life | > 100 000 cycles | |
| Max. switching capacity | 250VAC, 10 (2) A | |
| 120VAC, 15 (2) A | ||
| DC 30W | ||
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 | |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² | |
| Mounting | clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series) | |
| Casing | plastic according to UL94 V-0, light grey | |
| Dimensions | 64.5x42x38mm | |
| Weight | approx. 90g | |
| Fitting position | variable | |
| Operating/Storage temperature | 0 to +60°C (+32 to +140°F) / -45 to +80°C (-49 to +176°F) | |
| Protection type | IP20 | |
If you want other temperature :
| Art. No | Seting range | Seting range | ||
| 01172.0-00 | contact breaker, normally closed | 0 to +60 °C | contact maker, normally open | 0 to +60 °C |
| 01172.0-01 | contact breaker, normally closed | -32 to +140°F | contact maker, normally open | -32 to +140°F |
| 01175.0-00 | contact breaker, normally closed | -10 to +50 °C | contact maker, normally open | -20 to +80 °C |
| 01175.0-01 | contact breaker, normally closed | -14 to +122°F | contact maker, normally open | -68 to +176°F |
| 01176.0-00* | contact maker, normally open | 0 to +60 °C | contact maker, normally open | 0 to +60 °C |
| 01176.0-01* | contact maker, normally open | -32 to +140°F | contact maker, normally open | -32 to +140°F |
