Compact Industrial Thermal Camera With 640×512 Resolution and -20°C to +550°C Measurement Range
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
1 year
Transport Package:
Other
Specification:
56mm×51mm×119mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Electric-Focus Thermal Imaging Camera With 0.48mrad IFOV and 12μm Pixel Pitch for Precision MonitoringNegotiableMOQ: 50 Pieces -
Portable High-Accuracy Thermal Camera With Gigabit Ethernet, POE Power, and RS485 Communication SupportNegotiableMOQ: 50 Pieces
-
Multi-Protocol Thermal Camera With H.265 Video, 1–8× Digital Zoom, and Alarm Output OptionNegotiableMOQ: 50 Pieces
-
Smart Thermal Imaging Device With 640×512 Sensor, 12 Measurement Zones, and Isotherm ControlNegotiableMOQ: 50 Pieces
-
Smart Thermal Imaging Device With 640×512 Sensor, 12 Measurement Zones, and Isotherm ControlNegotiableMOQ: 50 Pieces
Warranty
1 year
Transport Package
Other
Specification
56mm×51mm×119mm
Trademark
Raythink
Origin
Yantai

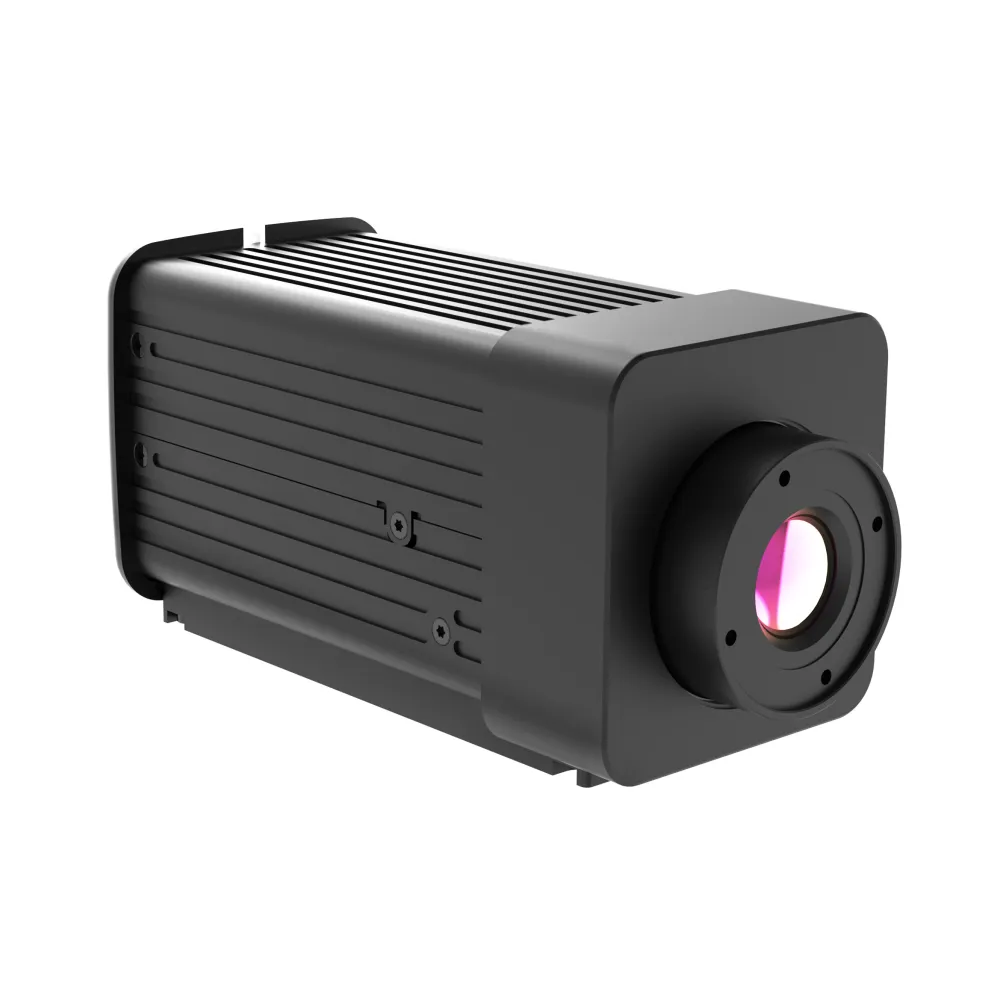

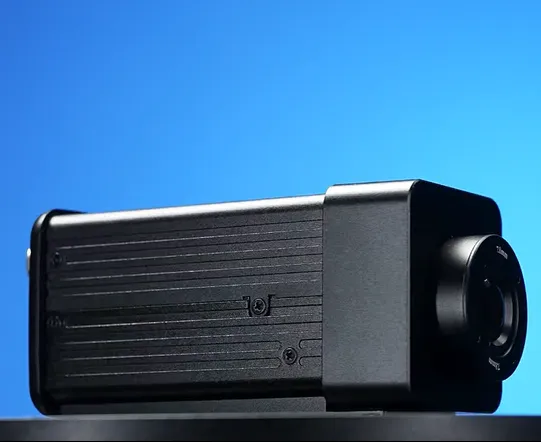

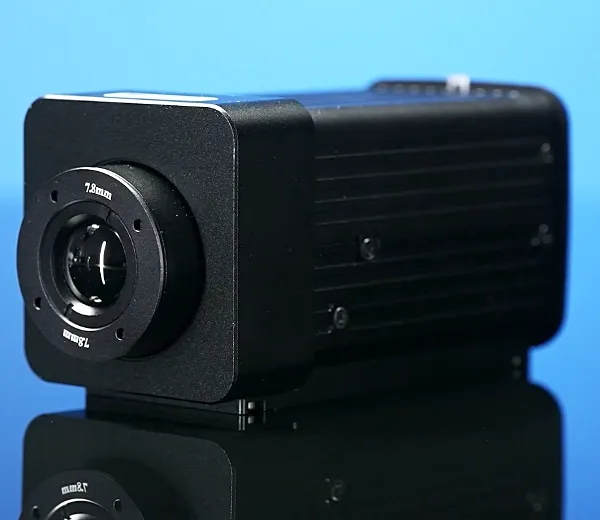

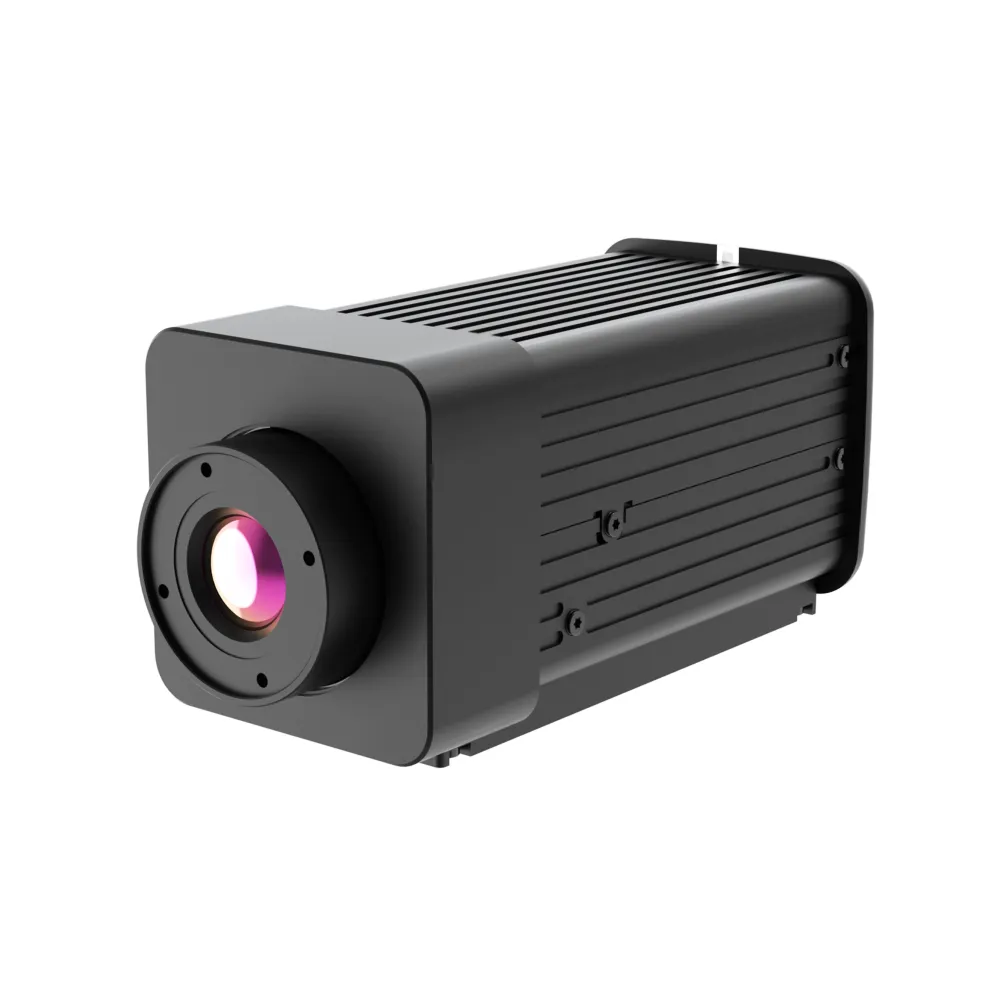

AT61 Motorized Focusing Thermal Camera
AT61 is a high-performance and high-precision electrically adjustable temperature measurement thermal imager that uses a uncooled focal plane detector and offers multiple lens options.
Supporting multiple protocols such as RTSP and Onvif, equipped with professional application software and universal SDK development package.
It is ideal choice for fields such as electronic circuits, education and research, and industrial automation.
Feature
High-Quality Image Output
AT31 can accurately transmit on-site temperature data. Its electric focusing lens design enables the observations of multiple depth-of-field targets using the same lens, thus providing more accurate temperature measurements.
The device can output high-quality infrared images with a resolution of 384×288, supporting rapid temperature data analysis and determination.
High-speed Frame Rate and Real-time Data Transmission
With an image and temperature frame rate of up to 50Hz, AT31 can capture temperature changes at a very high speed. It is very suitable for applications requiring real-time monitoring of temperature changes. Equipped with a Gigabit network interface, the device also supports real-time transmission of on-site status temperature data, allowing for image monitoring and temperature data analysis at anytime.
Wide Measurement Range and Temperature Compensation Algorithm
With a wide measurement range from -20°C to +550°C, AT31 is suitable for industrial scenarios with various high-temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.
Specification
| Thermal Imaging Parameters | |
|---|---|
| DetectorUncooled VOx detectorInfrared Resolution384×288Pixel pitch17μmSpectral Band8μm~14μmThermal Sensitivity (NETD) | |
| Temperature Measurement Function | |
| Measurement Range-20℃~+150℃,0℃~550℃Measurement Accuracy±2°C or ±2% of readings, whichever is greater.Temperature Measurement CorrectionReflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distanceMeasurement ToolSettings of measurement rules for a total of 12 points, lines, and areas Supports isotherm settingTemperature Width StretchSupport temperature width stretch | |
| Image and Video | |
| Frame Rate50HzPalettes18 color palettes including black-hot, white-hot, iron red, rainbow, etc.Video StandardsH.264, H.265Thermal Image CaptureSupport thermal image capture and secondary analysisMirror ImageHorizontal/Vertical/DiagonalDigital Zoom1.0~8.0 continuous zoom (step size: 0.1) | |
| System Interface | |

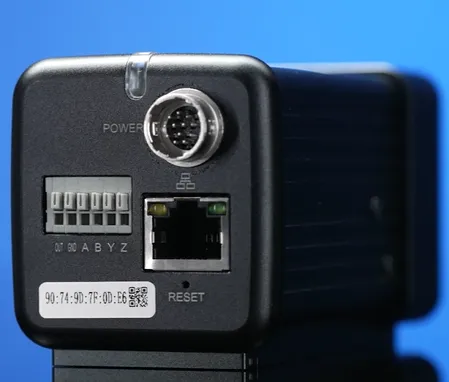

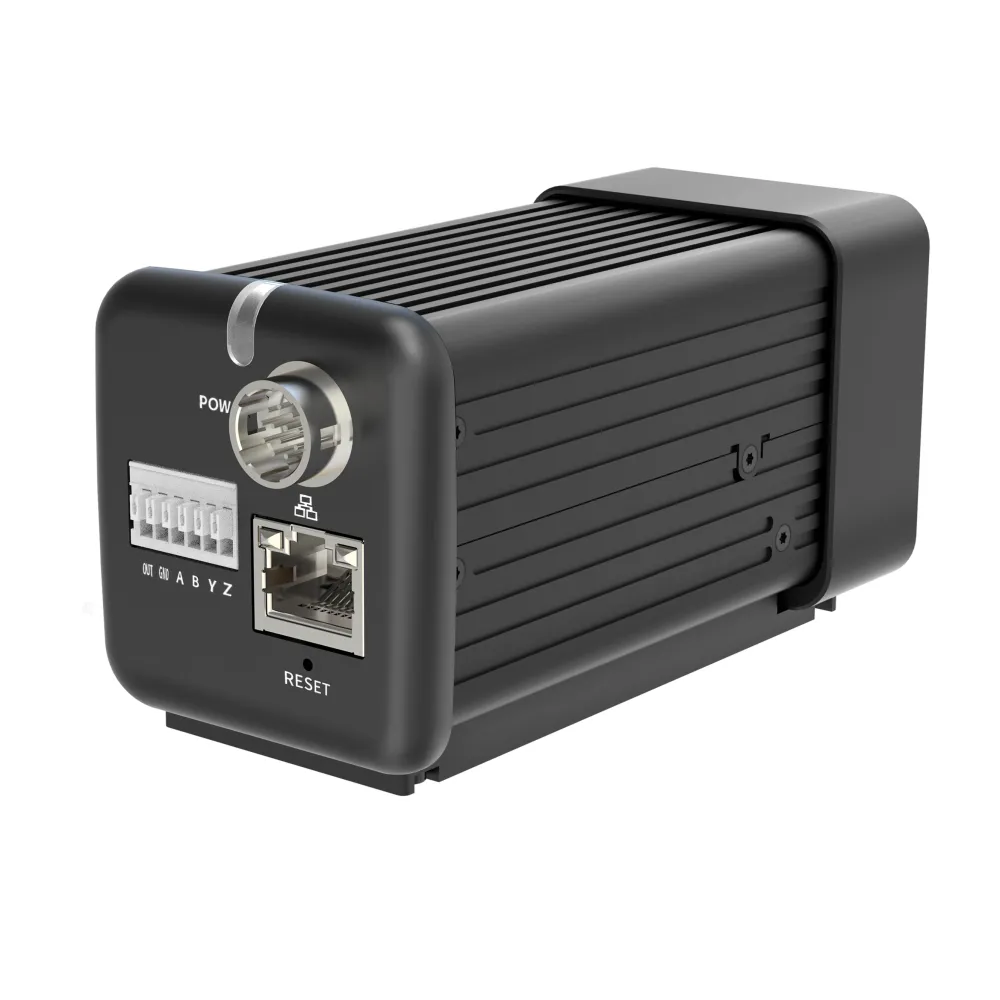

| Communication interfaceRJ45，supporting Gigabit network and customized RS485 for Pecol-D protocol.Video Interface1-channel analog videoAlarm Interface1-channel alarm output (optional)Network ProtocolTCP, UDP, ICMP, DHCP, RTSPInterface ProtocolONVIF, GB28181 | |
| Device Specifications | |
| Operating Temperature-20℃~+60℃Power supply mode10~36V DC, POETypical Power Consumption3WDimensions56mm×51mm×119mmWeightAbout 430g | |
Application Scenarios
|
Education and Research |
Industrial Manufacturing |
Machine Vision |
Power Monitoring |
