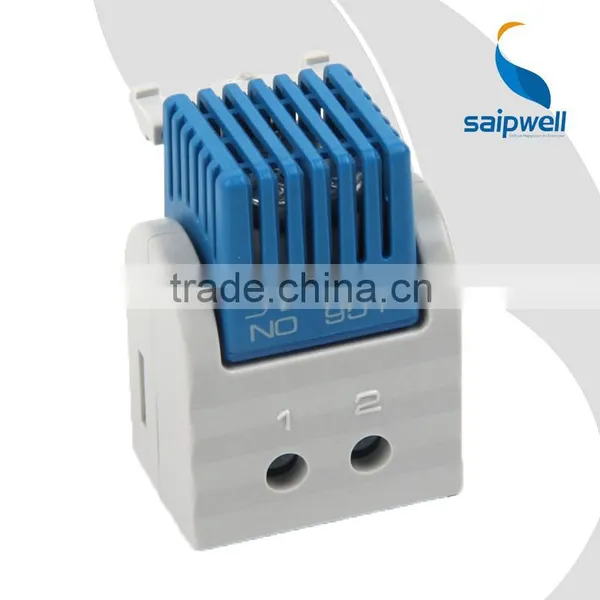

SAIPWELL FTS 011 Default Temperature Setting Fan Thermostat
FTS 011 Thermostat Feature:
1.Small size
2.Default temperature settings
3.Easy to install
4.High switching tolerance
5.CE&RoHS
SAIPWELL FTS 011 Default Temperature Setting Fan Thermostat
Specification:

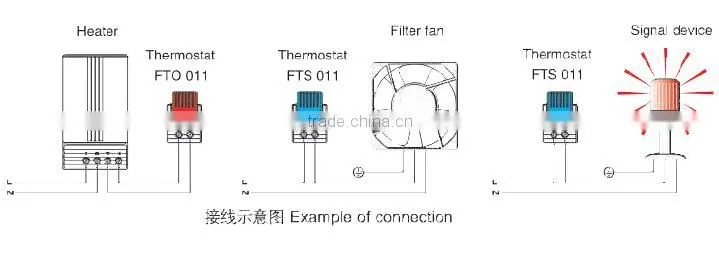

FTO 011/FTS 011 Thermostat:
Tamperproof (Pre-set) Thermostat FTO 011
Contact breaker/NC(red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value.The contact opens when temperature is rising.
Tamperproof (Pre-set) Thermostat FTS 011
Contact maker/NO (blue casing) for regulating filter fans,heat exchangers,cooling devices or for switching signal devices when temperature limit has been exceeded.The contact closes when temperature is rising.
SAIPWELL FTS 011 Default Temperature Setting Fan Thermostat
Technical Data:
Sensor element |
thermostatic bimetal |
Contact type |
snap-action contact |
Contact resistance |
< 20mΩ |
Service life |
> 100,000 cycles |
Max. Switching capacity |
250V AC, 5 (1.6)A |
120V AC, 10 (2)A | |
DC 30W | |
Max. inrush current |
AC 10A |
EMC |
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection |
2-pole terminal for 2.5mm2,torque 0.8Nm max. |

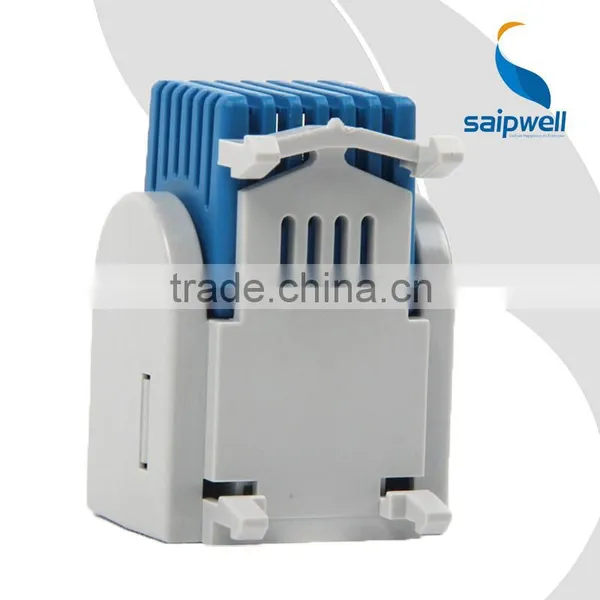

Mounting |
clip for 35mm DIN rail, EN 60715 or for exit filter EF 118 Series |
Casing |
plastic according to UL94 V-0, light grey |
Dimensions |
47 x 33 x 33mm |
Weight |
approx. 23g |
Fitting position |
variable |
Operating/Storage temperature |
-20 to+80°C(-4 to +176°F) /-45 to+80°C(-49 to +176°F ) |
Protection type |
IP20 |
Art. No. |
Contact type |
Switch-off temperature |
Switch-on temperature |
01160.0-00 |
Contact breaker (NC) |
+15°C / +59°F (± 5K tolerance) |
+5°C / +41°F (± 5K tolerance) |
01160.0-01 |
Contact breaker (NC) |
+25°C / +77°F (± 5K tolerance) |
+15°C / +59°F (± 5K tolerance) |
|
|
Switch-on temperature |
Switch-off temperature |
01161.0-00 |
Contact maker (NO) |
+50°C / +122°F (± 6K tolerance) |
+40°C / +104°F (± 7K tolerance) |
01161.0-01 |
Contact maker (NO) |
+60°C / +140°F (± 6K tolerance) |
+50°C / +122°F (± 7K tolerance) |
01161.0-02 |
Contact maker (NO) |
+35°C / + 95°F (± 6K tolerance) |
+25°C / +77°F (± 7K tolerance) |
SAIPWELL FTS 011 Default Temperature Setting Fan Thermostat
SAIPWELL FTS 011 Default Temperature Setting Fan Thermostat
SAIPWELL FTS 011 Default Temperature Setting Fan Thermostatr
