SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Saip/Saipwell/Stego
Model Number:
ET 011
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SAIPWELL FZK 011 Adjustable Temperature Heating And Cooling Cabinet ThermostatNegotiableMOQ: 1 Piece -
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For FanNegotiableMOQ: 1 Piece
-
SAIPWELL ZR 011 Industrial Fan And Heater Control Dual ThermostatNegotiableMOQ: 1 Piece
-
SAIPWELL FTO 011 Fixed Temperature Thermostat For HeaterNegotiableMOQ: 1 Piece
-
SAIPWELL MFR 012 35%-95% RH Mechanical Hygrometer ThermostatNegotiableMOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
Saip/Saipwell/Stego
Model Number
ET 011
Usage
Industrial
Theory
Temperature Controller
SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat
ET 011 Electronic Thermostat Feature:
1.High DC breaking capacity
2.Low hysteresis
3.Adjustable temperature
4.Change-over contact
5.Clip fixing
6.CE&RoHS
SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat
Specification:
ET 011 Electronic Thermostat:

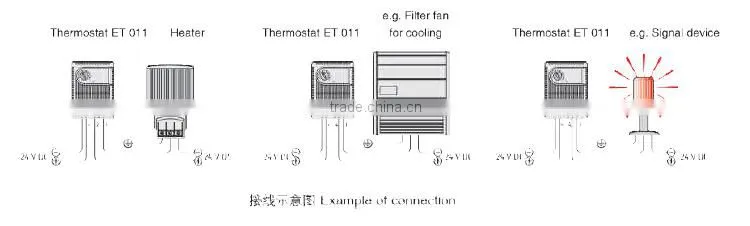

Electronic thermostat for regulating high performance DC 24V equipment. Heating or cooling appliances as well as signal devices can be switched via the potential free change-over contact. In comparison to mechanical thermostats, the ET 011 has a low hysteresis making the switching point and setting accuracy more precise.
SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat
Technical Data:
| Switch temperature difference | Approx.3K |
| Sensor element | PTC |
| Contact type | Change-over |
| Contact resistance | <10mΩ |
| Service life | >100,000 cycles |
| Max. switching capacity | 28VDC, 16A |
| EMC | acc. To EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail,EN60715 or fox exit filter EF118 Series |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 67 x 50 x 46mm |
| Weight | Approx.80g |
| Fitting position | variable |
| Operating/Storage temperature | 0 to +60°C (32 to +140°F) / -45 to +80°C (-49 to +176°F) |
| Protection type | IP20 |
| Art. No. | Operating voltage | Setting range |
| 01190.0-00 | 24VDC (20-28VDC) | 0 to +60°C |
SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat

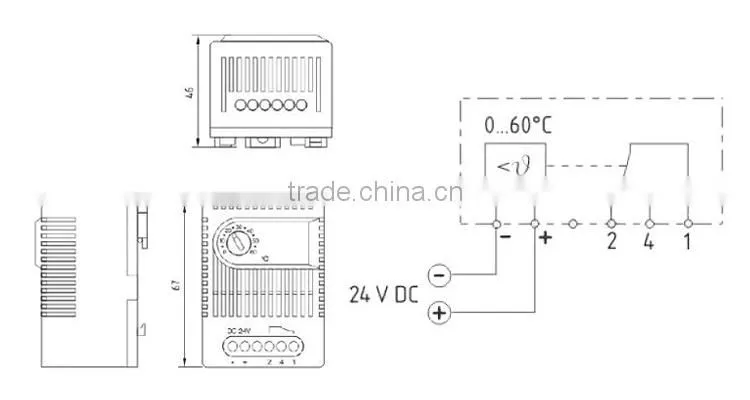

Technical Drawing:
SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat

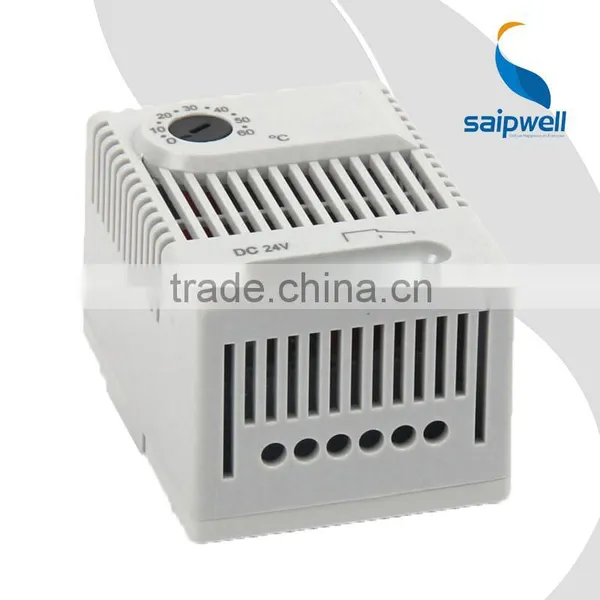

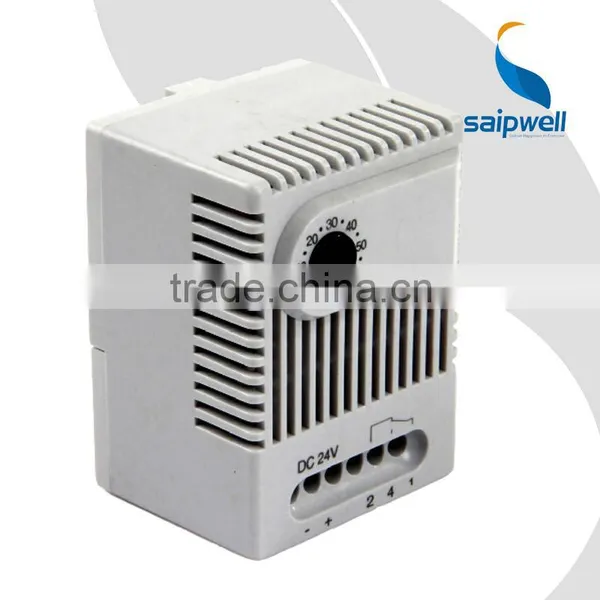

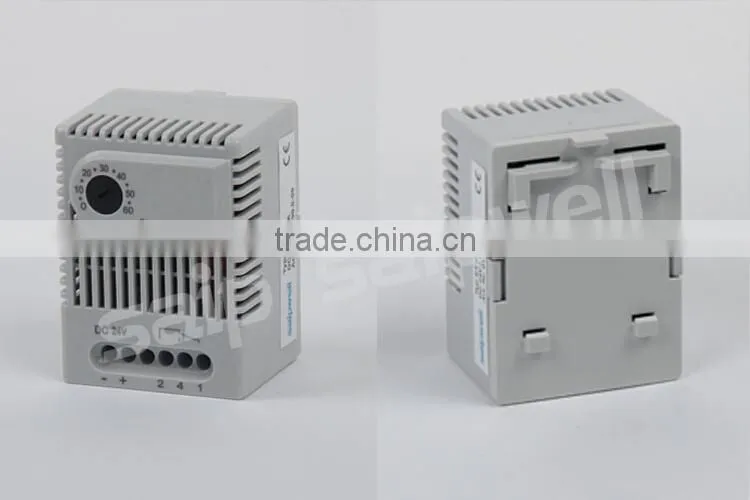

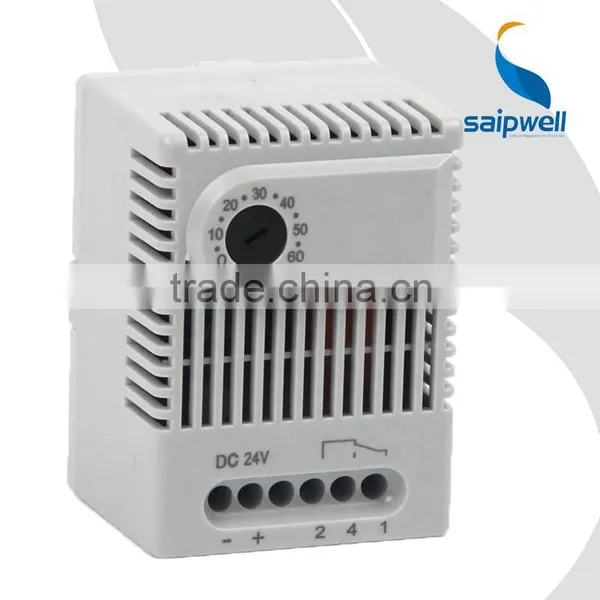

Picture Show:
SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat
Thermostat And Heater Series:
SAIPWELL ET 011 Electronic PTC Change-over Fan Heater Thermostat
Our Company:
Shanghai Saipwell Electric Co., Ltd. is a manufacturer of PTC heaters, Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
We have variety of thermostats and we can try our best to meet all your needs. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.

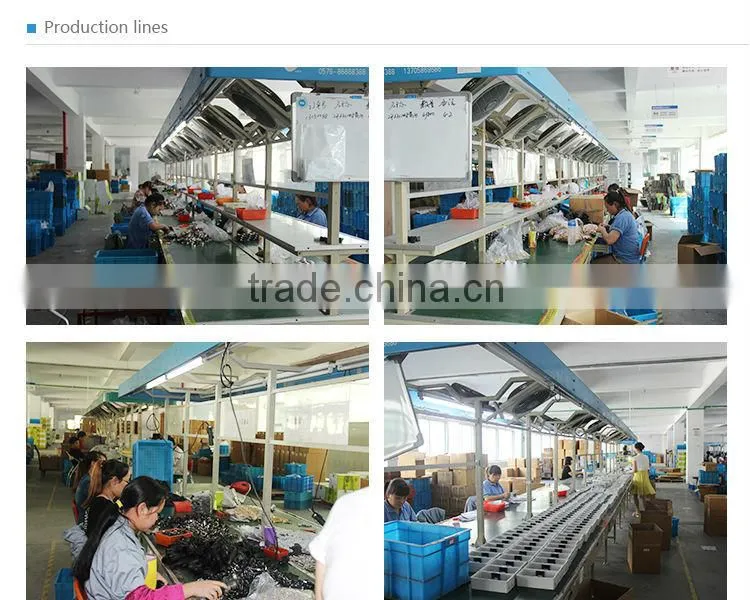

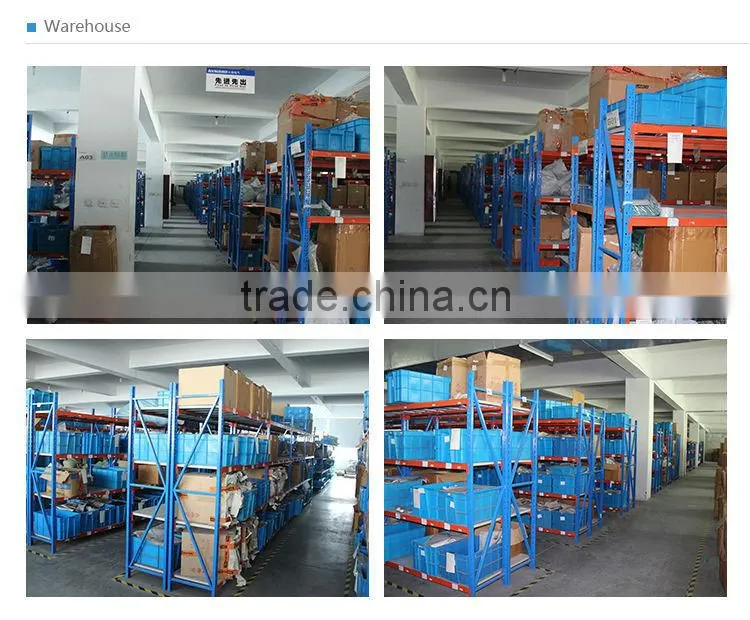

Our Factory:
Shipping:
