Home > Products > Cabinet Thermostat > SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan
Negotiable
/ Piece
1 Piece(Min. Order)
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SAIPWELL ZR 011 Industrial Fan And Heater Control Dual Thermostat
-
SAIPWELL FTO 011 Fixed Temperature Thermostat For Heater
-
SAIPWELL MFR 012 35%-95% RH Mechanical Hygrometer Thermostat
-
SAIPWELL LC 013 Fan Airflow Monitor Without Protective Grille
-
SAIPWELL ETF 012 Electronic Temperature And Humidity Adjustable Hygrothermostat
-
SAIPWELL SM 010 DC 24V/48V Electronic Relay
Product Details
| Place of Origin | Shanghai, China | Brand Name | Saip/Saipwell | |
| Model Number | KTS 011 | Usage | Industrial | |
| Theory | Temperature Controller |
Product Description
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan
KTS 011 Thermostat Feature:
1.Large setting range
2.Small size
3.Simple to mount
4.High switching performance
5.CE&RoHS
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan
Specification:
KTO 011:Thermostat (Normally Closed),contact breaker for regulating heaters.

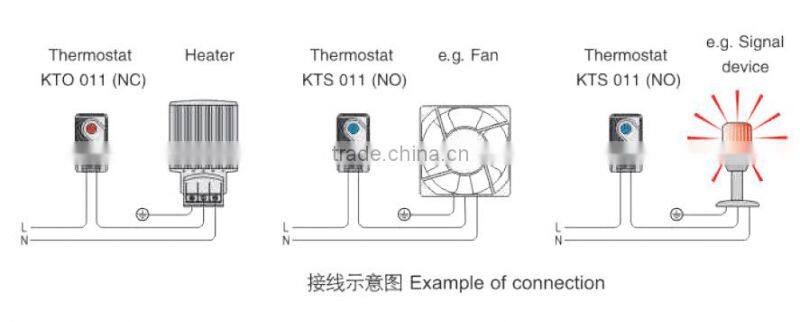

KTS 011:Thermostat (Normally Open),contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan
Technical Data:
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Contact resistance | < 10mΩ |
| Service life | > 100,000 cycles |
| Max. switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 60 x 33 x 43mm |
| Weight | approx. 40g |
| Fitting position | variable |
| Operating/Storage temperature | -20 to +80°C (-4 to +176°F) |
| Protection type | IP20 |
Setting range | Art. No. Contact Breaker (NC) | Art. No. Contact Maker (NO) |
0 to +60°C | 01140.0-00 | 01141.0-00 |
-10 to +50°C | 01142.0-00 | 01143.0-00 |
+20 to +80°C | 01159.0-00 | 01158.0-00 |
+32 to +140°C | 01140.9-00 | 01141.9-00 |
+14 to +122°F | 01142.9-00 | 01143.9-00 |
0 to +60°C | 01146.9-00 | 01147.9-00 |
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan

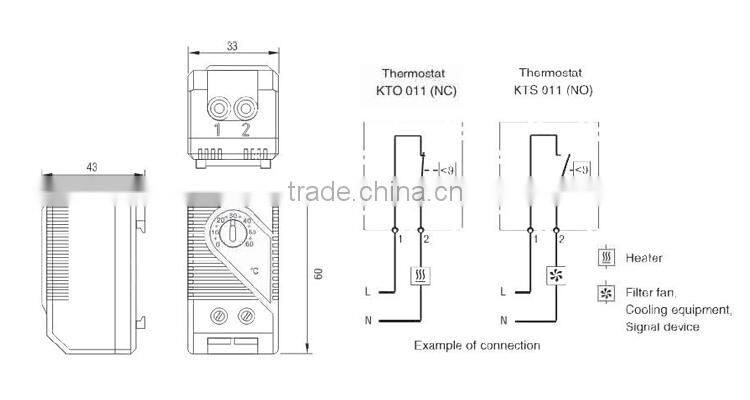

Technical Drawing:
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan

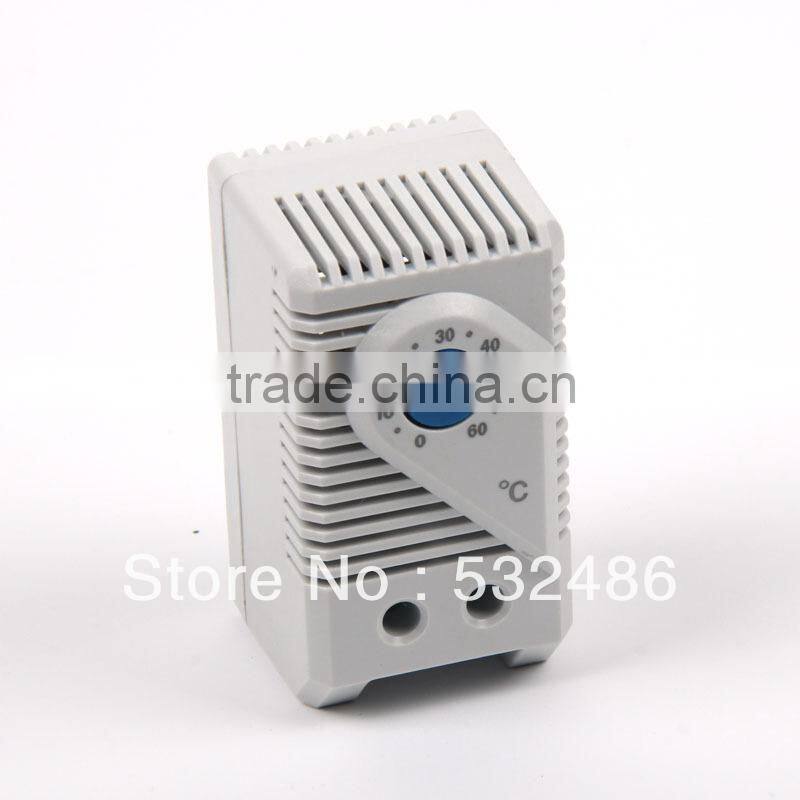

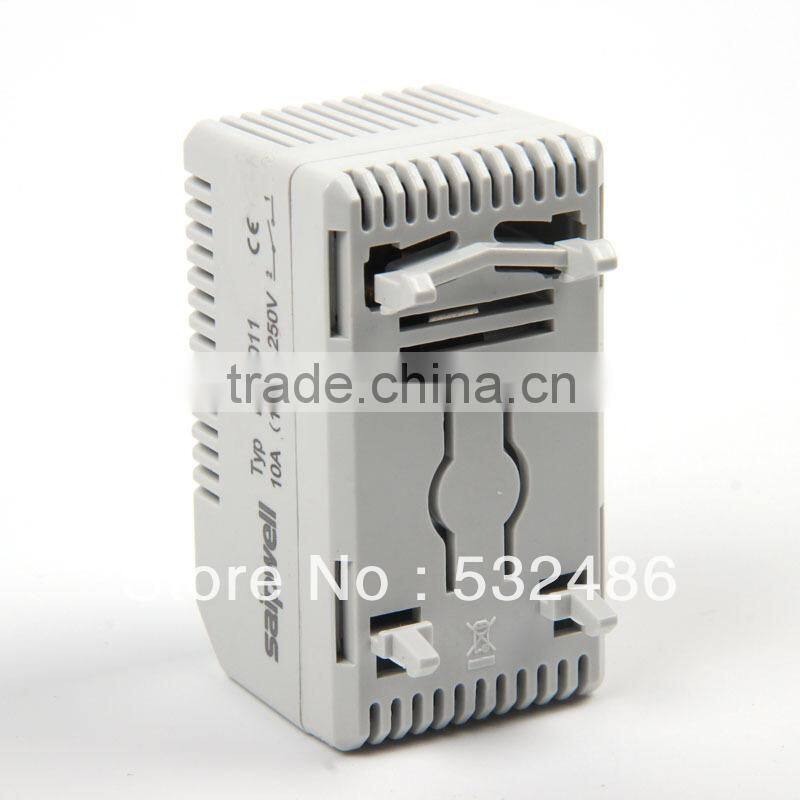

Picture Show:
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan
Thermostat And Heater Series:
SAIPWELL KTS 011 Cabinet Snap-action Thermostat For Fan
Our Company:
Shanghai Saipwell Electric Co., Ltd. is a manufacturer of PTC heaters, Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
We have variety of thermostats and we can try our best to meet all your needs. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
