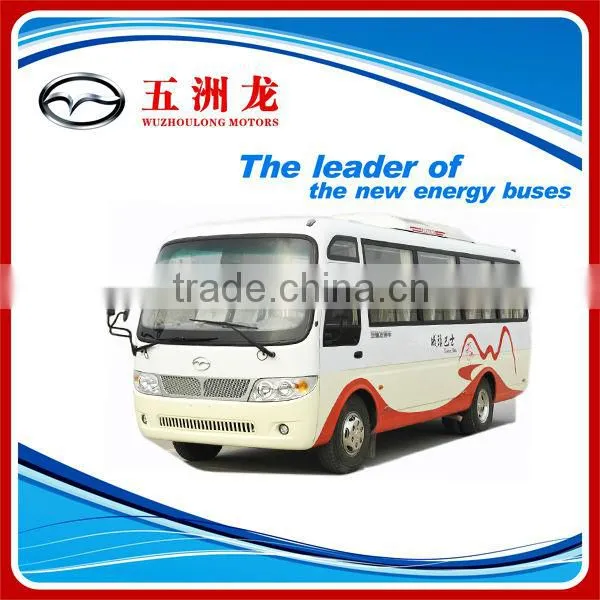

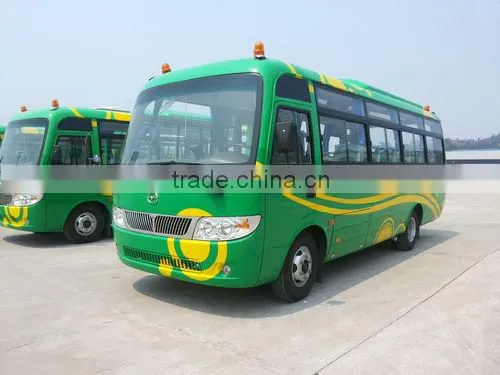

Help Center7.2m 10-25 Seats Town Bus
Related Products
Specifications
Dimension: 7235*2260*2810mmGross weight: 7700kg
It can be used for transportation or tourist purpose.
Our products can be customized
Small order is also acceptable.
WZL6720AT3 Specification
Overall Parameter | |||
Overall length(mm) |
7235 |
||
Overall width (mm) |
2260 |
||
Overall height (mm) |
2810/2980 |
||
Wheelbase(mm) |
3800 |
||
Front/Rear overhang (mm) |
1200/2235 |
||
Approach/departure angle(°) |
18/9 |
||
Front/Rear Tread ((mm) |
1860/1610 |
||
Gross Weight(kg) |
7700 |
||
Rated Passengers |
24-27 |
||
Engine Parameter | |||
Engine Model |
YC4D130-30 |
||
Engine Position/Fuel |
Front/Diesel |
||
Type |
Inline cylinders,4 strokes,water-cooling,turbocharger-intercoller, electricity control |
||
Max Power(kw/r/min) |
96/2800 |
||
Max Torque(N.m/r/min) |
420/1400-1800 |
||
Displacement (L) |
4.214 |
||
Top Speed (km/h) |
100 |
||
Emission standard |
Euro Ⅲ |
||
Chassis Parameter | |||
Chassis Mode/Manufacture |
EQ6690K3AC |
||
Transmission |
DF5S550 |
||
Charging generator |
120Ah×2/100A 28V |
||
Clutch |
φ350 , single,dry style , diaphragm spring,Clutch booster |
||
Front axle |
''H" section forged modeling 3T |
||
Driving axle |
Integral Casting 5T , Main reduce radio 4.875 |
||
Suspension |
Leaf Spring(multi leaf) |
||
Steering |
Power steering |
||
Brake |
Dual-circuit drum braking system, air-cut brake. |
||
Tyre |
7.50R16 |
||
Tank |
90L |
||
Other |
Hoof piece of clearance automatic slack adjusters Copper water tank |
||
Body | |||
Frame Structure |
Semi-monocoque |
||

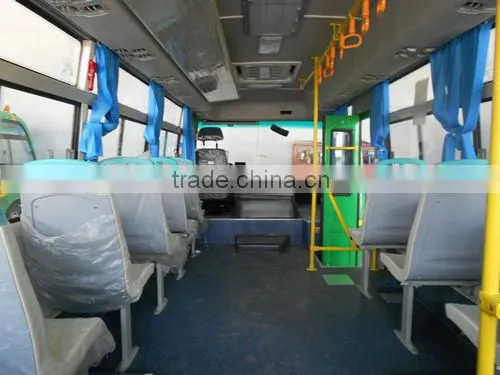

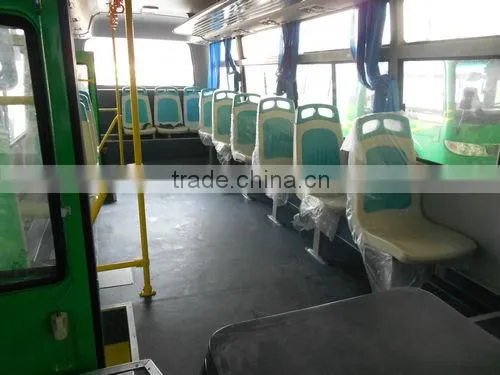

Interior trim |
Integrated module inner decoration(Outlet without reading light), side wall panels for fiberboard, a bar on roof |
||
Door/Door pump |
Driver's door, Center pneumatic folding passenger door,glass guardrail |
||
Window / Windshield |
Panoramic laminated front windshield, Aluminum sliding side windows, Black window frames, toughened glass |
||
Rear view |
Manual bracket-style rear view mirror/inner mirror |
||
A/C |
Top fixed refrigerating capacity 16000kcal/h(generator should be changed) |
||
Defrost system |
Water-heating |
||
Audio-Video System |
MP3 |
||
Lamp |
Front & Rear combination lamp, Rectangle dome light |
||
Wiper |
Opposite scrap wiper with syringe |
||
Seats |
26+1 passenger seat/ Adjustable driver seat/ seat belts |
||
Floor leather |
Bamboo plywood floor/Domestic antiskid floor leather |
||
Lacquer |
Chinese solid lacquer |
||
Others |
Drive door pillaring a handle,a vice-drive door handle,Fire Extinguisher(4kgx1),Front windshield demi-shades,Folding side curtains,Electronic clock,tachograph ( including GPS ),Passenger door handle,Five - seat fence |
||

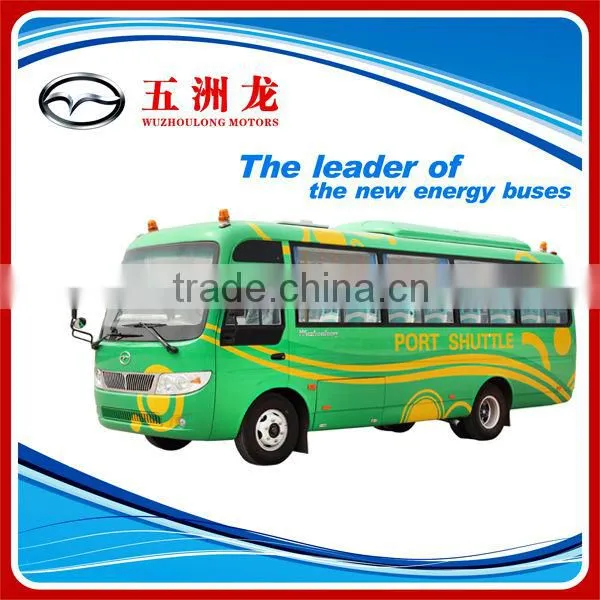

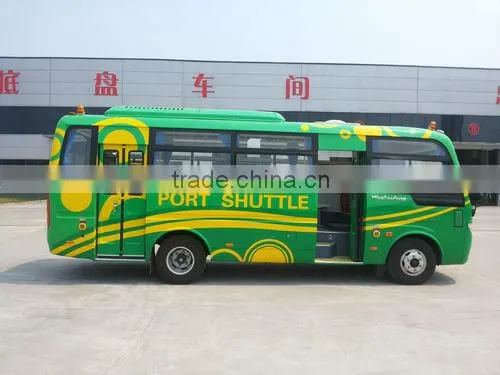

Different painting:
Wuzhoulong, the leader of new energy automobile
We also provide you
1 Hybrid bus (CNG & battery)
2 Pure electric bus battery
3 Safety school bus
4 Mini bus
5 Inner city bus
6 Tourist bus
7 Luxury bus
8 Coach
