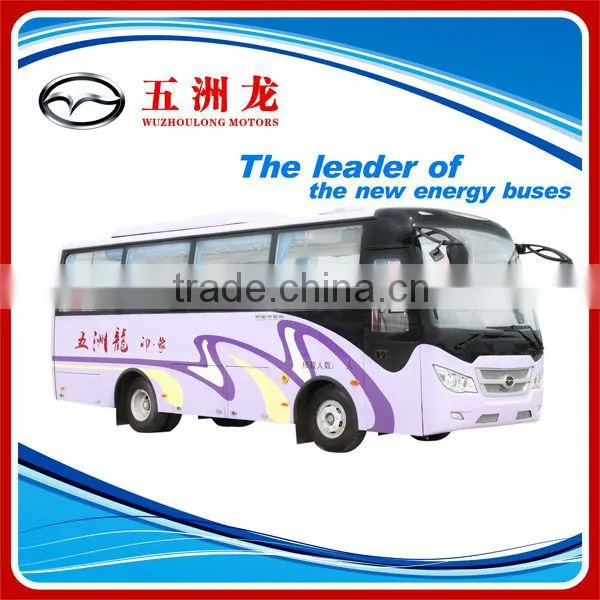

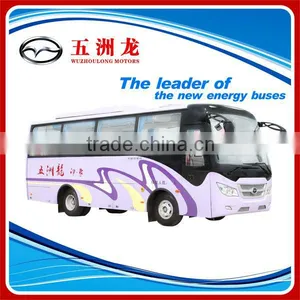

7.8m 24-30 Seats Tourist Bus

Name: 7.8m 24-30 Seats Tourist Bus
Brand: Wuzhoulong
SKU: 107168161
Availability: InStock

US$ 39,700 - 44,000 MOQ: 1 Unit

Key Specifications

Seats:

Other, 24-31

Emission Standard:

Euro 4

Transmission Type:

Manual

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Seats Other, 24-31

Emission Standard Euro 4

Transmission Type Manual

Condition New

Engine Capacity 4 - 6L

Fuel Type Gasoline

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number WZL6781NAT4

Specifications

7.8m 24-30 Seats Tourist Bus
Size: 7840*2420*3240mm
Gross weight: 9000kg
Top speed:100km/h

Our products can be customized,

small order quantity is acceptable.

7.8m 24-30 Seats Tourist Bus

Engine Parameter
Engine model	NQ160N4
Manufacture	Nanchong
Position/fuel	Front/CNG
Type	Inline/4 strokes/water cooling/in cold/electronic charge
Max power (ps/r/min)	160/2800
Max torque (N.m/ r/min)	450/1400~1600
Displacement (L)	5.975
Emission standard	Euro IV

Chassis Parameter

Model	EQ6733TN4AC
Transmission	WLY5T55L,manul 5 speed
Clutch	φ 350 monolithic dry diaphragm spring, hydraulic remote control, gas booster
Front axel	"H"type section, 5.5T/huqiao
Driving axel	Punching-welding bridge housing/4.33 speed,5.5T
Suspension	Leaf pring, F9/R11
Steering	Integral power steering
Brake	Dual circuit air brake with ECE standard,drum brake
Gas cylinder	5 CylindersX80L
Tyre	8.25R16-6PR 6pcs
Battery/generator	120Ah×2/100A 28V
Other	Braking gap automatic adjustable arm, copper water tank

Body
Structure	The semi-integral, cold-formed steel framing, lateral tension skin
Inner decoration	Integrated AC decoration, Molding duct with rack, PVC top board, side fiber boardl
Door&Door pump	Front pneumatic aluminum outer swing door, iron frame aluminum skin over the swing door, back door.
Window	Panoramic laminated windscreen, tempered windshield, adhesive side window, the last left & right window is sliding window.
Floor	Bamboo board and country origin board leather

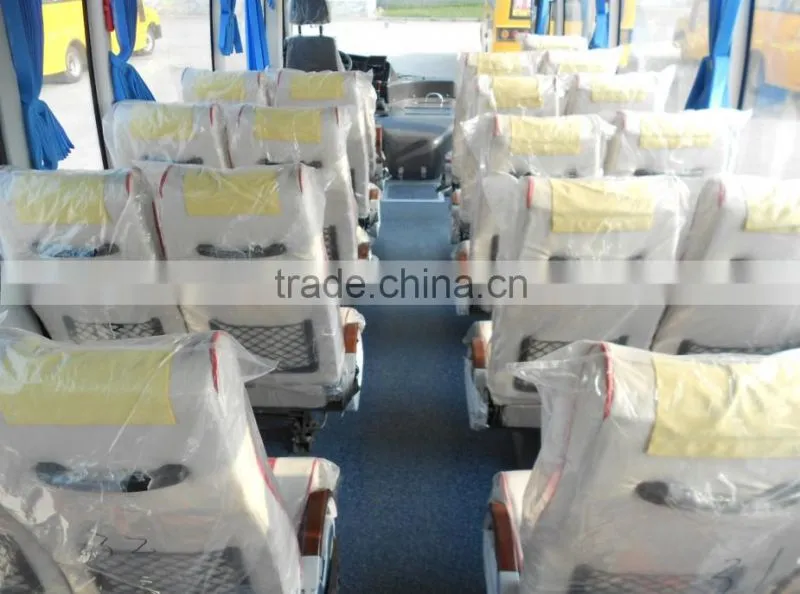

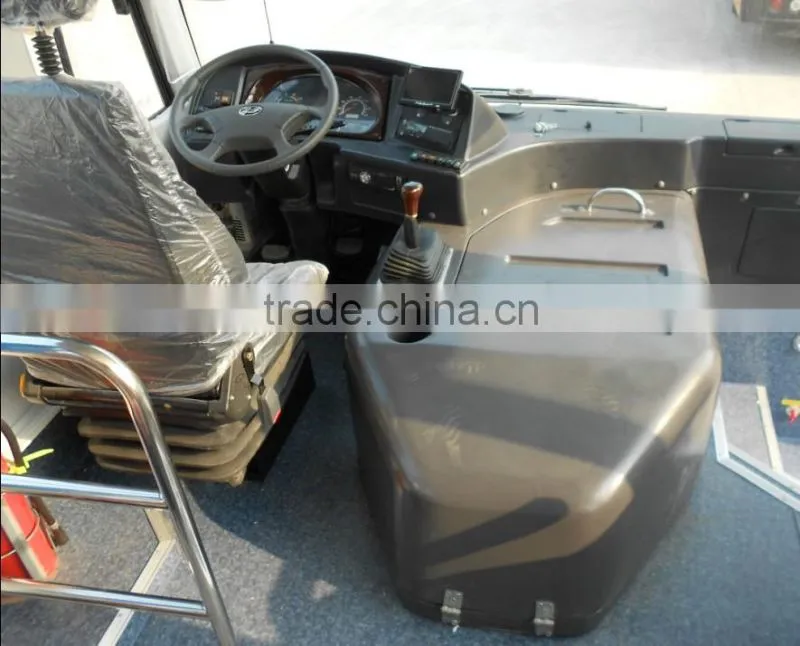

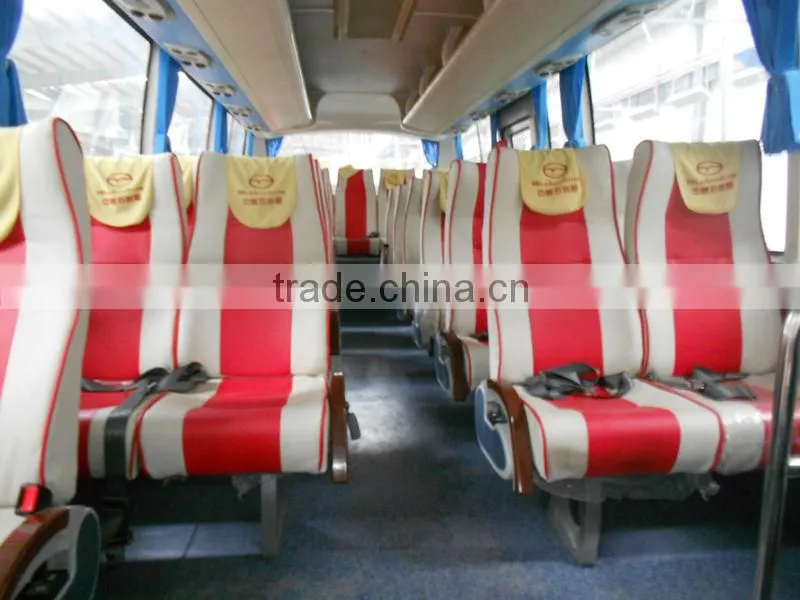

Seat	adjustable driver seat, 30+1 passenger seats can be adjusted front & back.

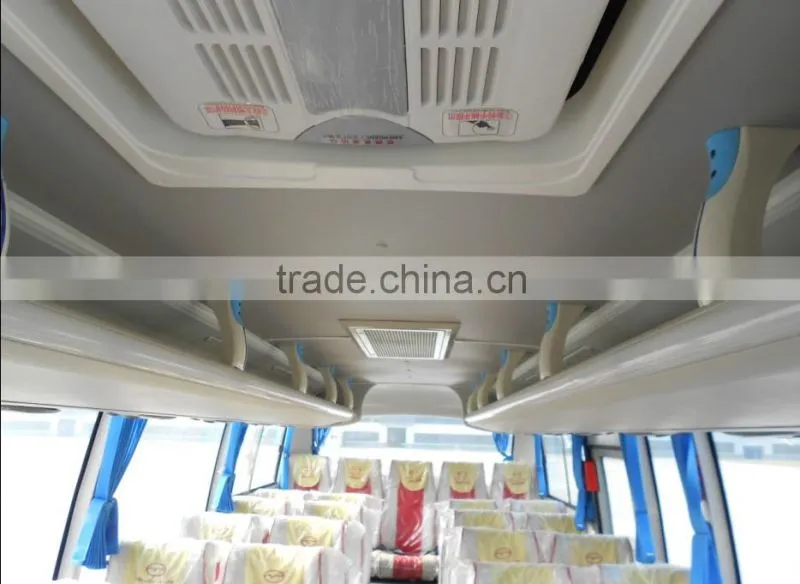

A/C	18000kcal/h Top type,18000kcal/h
Heating system	Water heating defrost
Video/Audio system	MP3
Review system	Manual rabbit type review mirror,inner view mirror
Lamp	Front group lamp ,Rear group lamp
Wiper	Opposite type wiper with detergent
Lacquer	Chinese lacquer
Others	Electronic clock,Fire Extinguisher(4KgX1),Warning triangle,emergency hammer with alarms(4pcs), travel recorder, GPS, colorful reversing monitor, aluminum alloy wheel half-cover. front visor curtain, the driver side curtains, side curtains, left & right passengers guardrail, turn -over iron cabin door, rear cabin door, 920B safety top window, water groove.
