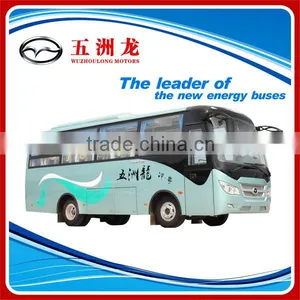

7.8m 24-30 Seats Front Engine Diesel Bus Coach

Name: 7.8m 24-30 Seats Front Engine Diesel Bus Coach
Brand: Wuzhoulong
SKU: 107168165
Availability: InStock

US$ 38,000 - 44,000 MOQ: 1 Unit

Key Specifications

Seats:

Other, 24-31

Emission Standard:

Euro 4

Transmission Type:

Manual

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Seats Other, 24-31

Emission Standard Euro 4

Transmission Type Manual

Condition New

Engine Capacity 4 - 6L

Fuel Type Diesel

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number WZL6781AT4

Specifications

7.8m 24-30 Seats Front Engine Diesel bus Coach
Size: 7840*2420*3240mm
Rated passenger:24-31
Top speed:100km/h

Our products can be customized,

small order quantity is acceptable.

<This product can be diesel or natural gas fuel>

7.8m 24-30 Seats Front Engine Diesel Bus Coach

Engine Parameter
Engine model	YC4D140-45
Manufacture	Yuchai
Position/fuel	Front/diesel
Type	Inter cylinder,4 strokes ,water cooling,electricity control
Max power (ps/r/min)	140/2800
Max torque (N.m/ r/min)	450
Displacement (L)	4.214
Emission standard	Euro IV

Chassis Parameter

Model	EQ6733T4AC
Transmission	WLY5T45L,5 speed manul transmission /ZheJiang wanliyang
Clutch	Single dry diaphragm springφ350, Hydraulic long-distance manipulation,air power
Front axel	Two fist-end type beam, bearing the 3.5T/ Lake Bridge
Driving axel	Punching-welding bridge housing / ratio 5.29, Lake Bridge
Suspension	Leaf pring, F9/R11
Steering	Integral power steering
Brake	Dual circuit air brake with ECE standard,drum brake
Oil tank	135L
Tyre	8.25R16-16PR 6pcs
Battery/generator	120Ah×2/100A 28V
Other	Auto adjustable arm, copper water tank

Body
Frame Structure	Semi-monocoque,cold-formed steel framing , lateral tension skin
Inner decoration	Integrated AC decoration, Molding duct with rack, PVC top board, side fiber board
Door&door pump	Center pneumatic aluminum outer swing door, iron frame aluminum skin over the swing door, back door.
Window	Panoramic laminated windscreen, tempered windshield, adhesive side window, the last left & right window is sliding window.
Floor	Domestic anti-slip floor leather
Seats	Adjustable driver seat, 30+1 passenger seats can be adjusted front & back.
A/C	Top type,18000kcal/h
Heating system	Water heating defrost
Video&audio system	MP3
Rear view	Manual rabbit ears type rear view mirror,inner view mirror
Lamp	Front group lamps,behind group lamps
Wiper	Opposite type wiper with detergent
Lacquer	Chinese solid lacquer
Others	Electronic clock,Fire Extinguisher(4KgX1),Warning triangle,emergency hammer with alarms(4pcs), travel recorder, GPS, colorful reversing monitor, aluminum alloy wheel half-cover. front visor curtain, the driver side curtains, side curtains, left & right passengers guardrail, turn -over iron cabin door, rear cabin door, 920B safety top window, water groove.
