Specifications

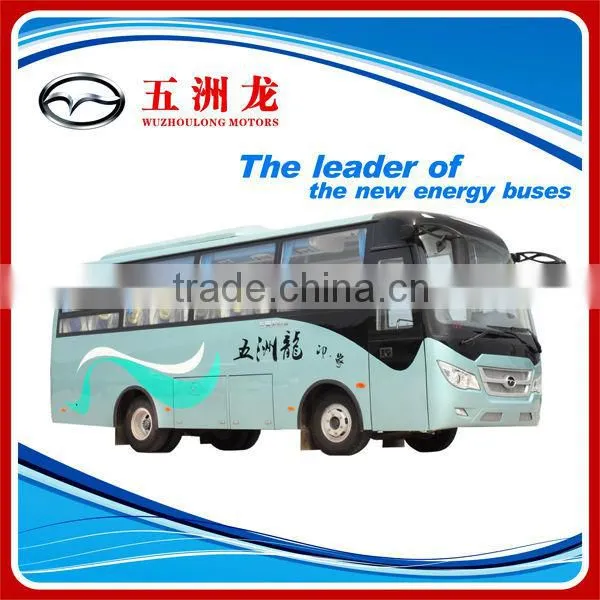

31 Seats Diesel BusSize: 7840*2420*3240mm
Gross weight: 8580kg
With good quality and best price.
7.8m 31 Seats Passenger Bus
Overall Parameter | |||
Overall length (mm) |
7840 |
||
Overall width (mm) |
2420 |
||
Overall height (mm) |
3240 |
||
Wheel base (mm) |
3650 |
||
Front/rear overhang (mm) |
1840/2350 |
||
Approach/departure angle(°) |
13/10 |
||
Front/rear thread (mm) |
1860/1628 |
||
Gross weight(kg) |
8580 |
||
Rated passengers |
24-31 |
||
Top speed (km/h) |
100 |
||
Engine Parameter | |||
Engine model |
YC4D140-45 |
||
Manufacture |
Yuchai |
||
Position/fuel |
Front/diesel |
||
Type |
Inter cylinder,4 strokes ,water cooling,electricity control |
||
Max power (ps/r/min) |
140/2800r/min |
||
Max torque (N.m/ r/min) |
450 |
||
Displacement(L) |
4.214 |
||
Emission standard |
Euro IV |
||
Chassis Parameter | |||
Model |
EQ6733T4AC/ |
||
Transmission |
WLY5T45L,5 speed manul transmission /ZheJiang wanliyang |
||
Clutch |
single dry diaphragm springφ350, Hydraulic long-distance manipulation,air power |
||
Front axel |
Two fist-end type beam, bearing the 3.5T/ Lake Bridge |
||
Driving axel |
Punching-welding bridge housing / ratio 5.29, Lake Bridge |
||
Suspension |
leaf spring suspension |
||
Steering |
Integral power |
||
Brake |
Dual circuit air brake with ECE standard,drum brake |
||
Oil tank |
135L |
||
Tyre |
8.25R16-16PR 6pcs |
||
Battery/generator |
120Ah×2/100A 28V |
||
Other |
auto adjustable arm copper water tank |
||
Body | |||
Frame Structure |
Semi-monocoque,cold-formed steel framing , lateral tension skin |
||
Inner decoration |
Integrated AC decoration, Molding duct with rack, PVC top board, side fiber board |
||
Door&door pump |
Center pneumatic aluminum outer swing door, iron frame aluminum skin over the swing door, back door. |
||
Window |
Panoramic laminated windscreen, tempered windshield, adhesive side window, the last left & right window is sliding window. |
||
Floor |
Domestic anti-slip floor leather |
||
Seats |
adjustable driver seat, 30+1 passenger seats can be adjusted front & back. |
||
A/C |
Top type,18000kcal/h |
||
Heating system |
Water heating defrost |
||
Video&audio system |
MP3 |
||
Rear view |
Manual rabbit ears type rear view mirror,inner view mirror |
||
lamp |
Front group lamps,behind group lamps |
||
Wiper |
Opposite type wiper with detergent |
||
Lacquer |
Chinese metallic lacquer |
||
|
Others |
Electronic clock,Fire Extinguisher(4KgX1),Warning triangle,emergency hammer with alarms(4pcs), travel recorder, GPS, colorful reversing monitor, aluminum alloy wheel half-cover. front visor curtain, the driver side curtains, side curtains, left & right passengers guardrail, turn -over iron cabin door, rear cabin door, 920B safety top window, water groove. |
||
