49 Seats Tourist Bus

49 Seats Tourist Bus photo-1
US$ 84,500 - 95,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Seats:
Other, 24-49
Emission Standard:
Euro 4
Transmission Type:
Manual
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Seats Other, 24-49
Emission Standard Euro 4
Transmission Type Manual
Condition New
Fuel Type Diesel
Place of Origin Chongqing, China
Brand Name Wuzhoulong
Model Number WZL6110A4-1

Specifications

11m 49 Seats Luxury Bus
1) Luxury appearance
2) Good quality
3) Best price

Our products can be customized,

small order quantity is acceptable.





                                                            11m 49 Seats Luxury Bus



                                         Overall Parameter

Overall length(mm) 10990
Overall width  (mm) 2500
Overall height  (mm) 3600
Wheelbase(mm) 5350
Front/Rear overhang  (mm) 2350/3290
Approach/departure angle(°) 10/9
Front/Rear Tread(mm) 2035/1860
Gross Weight(kg) 16500
Rated Passengers  24-49
Top Speed   (km/h) ≤100



                                        Engine Parameter

  Engine Model   YC6L280-42
  Engine man   Yuchai
  Engine Position/Fuel   real /  diesel
  Type   Inline cylinders,6 strokes, High pressure common rail electric jet
  Max Power (ps/r/min)   280/2200rpm
  Max Torque (N.m/ r/min)   1100 N.m /1200~1700 rpm
  Displacement(L)   8.424
  Emission standard   Euro IV



                                       Chassis Parameter

 Chassis Mode/Manufacture SX6114LM93
Transmission Qijiang  QJS6-90,Three soft shaft long-distance manipulation
Clutch single dry diaphragm springφ420,  Hydraulic long-distance manipulation,  air power
Front axle 5.5T Dongfeng Dana,  disc brake
Driving axle 11T Dongfeng Dana,  speed ratio 4.10,  drum brake
Suspension air suspension
steering power steering, double gimbal adjustable steering shaft, adjustable steering wheel, steering wheel diameterφ500
Brake Fit ECE standard dual-circuit air braking system, front disc brake and rear drum brake, Energy storage spring in car brake.
Tank 400L
Tyre 11R22.5-14PR, 6pcs
Charging generator 200Ah×2/150A 28V
others Copper water tank with electromagnetic clutch fan,



                                                Body

Frame Structure Semi-monocoque
Interior trim Molding soft interior trim,  top board 5mm and fabric,  PVC side plate,  Molding duct with rack,  Softening instrument desk.

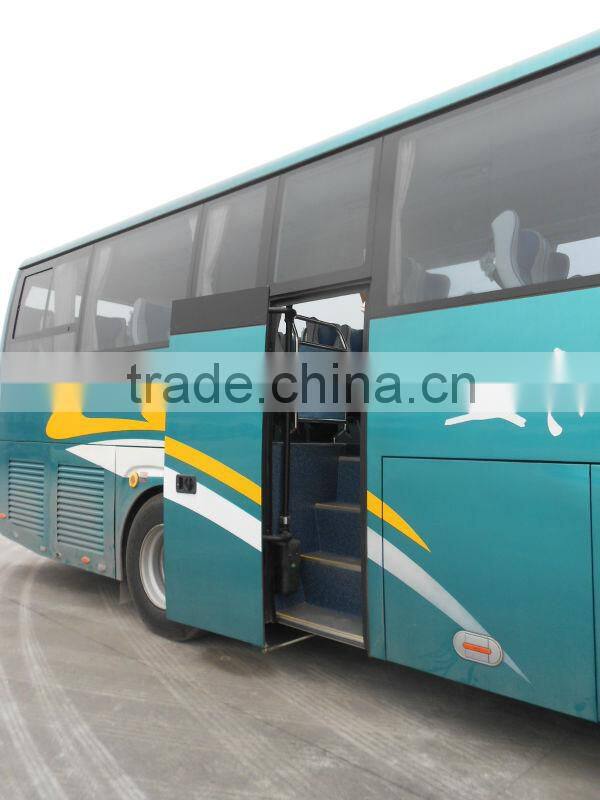

Door/Door pump Front & middle single pneumatic folding outside passenger door,  telecontrol.
Window / Windshield Panoramic laminated front windshield, adhesive side window
Rear view Electric rabbit ears type rear view mirror
defrost system independent water-heating, 4 forced radiator.
Audio-Video System MP3

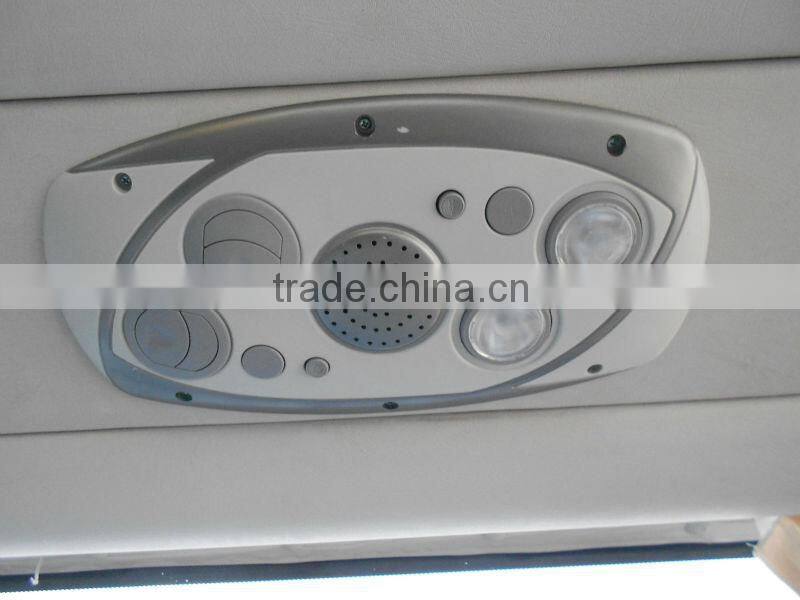

lamp Front & Rear combination lamp, Breakthrough type LED dome light, air flue with reading light.
Wiper Opposite scrap wiper with syringe
Seats 47+1+1luxury road bus seats, adjustable from left to right and front to rear , adjustable driver seat.
Floor leather resistant floor leather
Lacquer metallic lacquer
A/C independent dome style, cool capacity 28000kcal/h.
bin gate Over type aluminum alloy bin gate.
handrail There is a guide seat behind driver seat tailgate, middle passenger door flap, getting on handrail, softening foaming.
others Electronic clock,

Folding side curtains , front windshield , the driver window sunshade,  Aluminum alloy wheel covers ( semi- cover ),  Fire extinguisher,  Warning triangle 1pcs ,  Security hammer with alarm function 4 pcs,

Color reversing monitor,bus monitor(2 cameras),  Driving recorder with GPS function,

Engine compartment automatic fire extinguisher with alarm functionThe 920B type with ventilator skylights 1 PCS



 49 Seats Tourist Bus49 Seats Tourist Bus49 Seats Tourist Bus49 Seats Tourist Bus



Recommend similar products: 8.2 meters in length, with 35 seats.

49 Seats Tourist Bus
