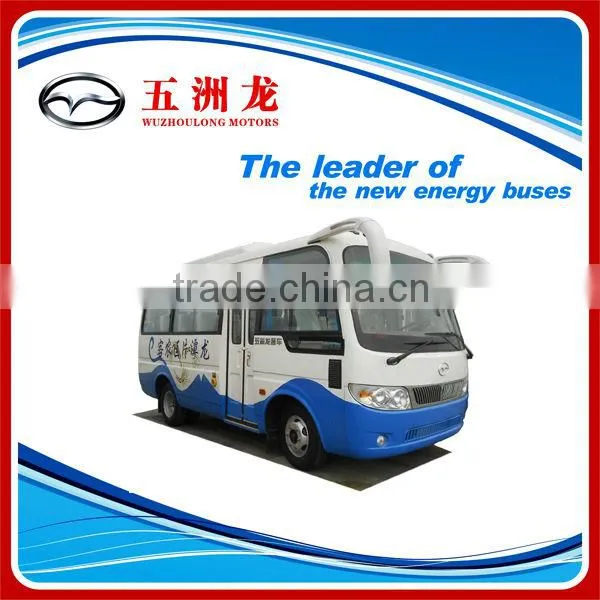

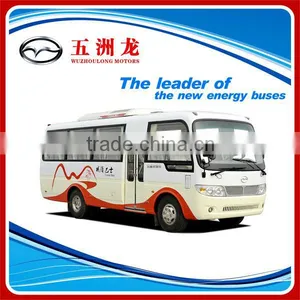

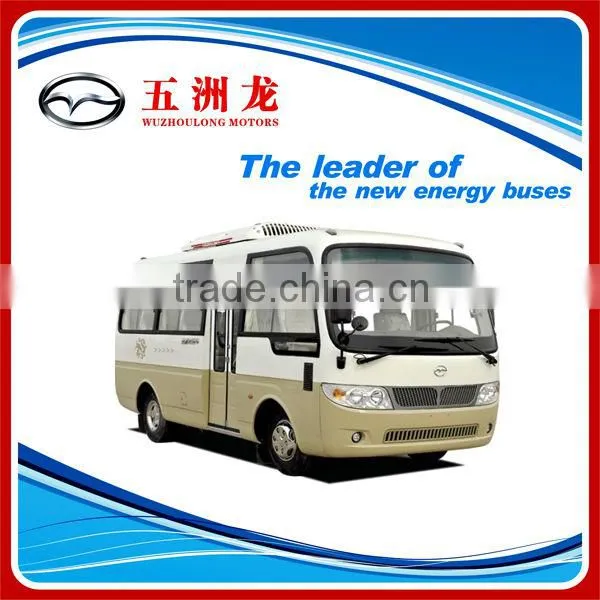

Wuzhoulong 26 Seats Mini Bus

Specifications

Wuzhoulong 26 Seats Mini Bus
Size: 7235*2260*2810/2980mm
Gross weight: 7700kg
Good quality, economy and afforable.

Our products can be customized

Small order is also acceptable.



Wuzhoulong, the leader of new energy automobile



We also provide you



1 Hybrid bus

2 Pure electric bus

3 Safety school bus

4 Mini bus

5 Inner city bus

6 Tourist bus

7 Luxury bus

8 Coach



of different configuration.



                        Wuzhoulong 26 Seats Mini  Bus



                                              Overall Parameter

Overall length(mm)	7235
Overall width  (mm)	2260
Overall height  (mm)	2810/2980
Wheelbase(mm)	3800
Front/Rear overhang  (mm)	1200/2235
Approach/departure angle(°)	18/9
Front/Rear Tread   (mm)	1860/1610
Gross Weight(kg)	7700
Rated Passengers	24-27
Top Speed (km/h)	100



                                              Engine Parameter

Engine Model	YC4D130-30
Engine Position/Fuel	Front/Diesel
Type	Inline cylinders,4 strokes,water-cooling,turbocharger-intercoller, electricity control
Max Power (kw/r/min)	96/2800
Max Torque (N.m/r/min)	420/1400-1800
Displacement	4.214L
Emission standard	Euro Ⅲ



                                              Chassis Parameter

Chassis Mode/Manufacture	EQ6690K3AC
Transmission	DF5S550
Charging generator	120Ah×2/100A 28V
Clutch	φ350 single,dry style , diaphragm spring,Clutch booster
Front axle	''H" section forged modeling 3T
Driving axle	Integral Casting 5T , Main reduce radio 4.875
Suspension	Leaf Spring(multi leaf)
Steering	Power steering
Brake	Dual-circuit drum braking system, air-cut brake.
Tyre	7.50R16    6pcs
Other	Hoof piece of clearance automatic slack adjusters,  Copper water tank



                                                       Body

Frame Structure	Semi-monocoque

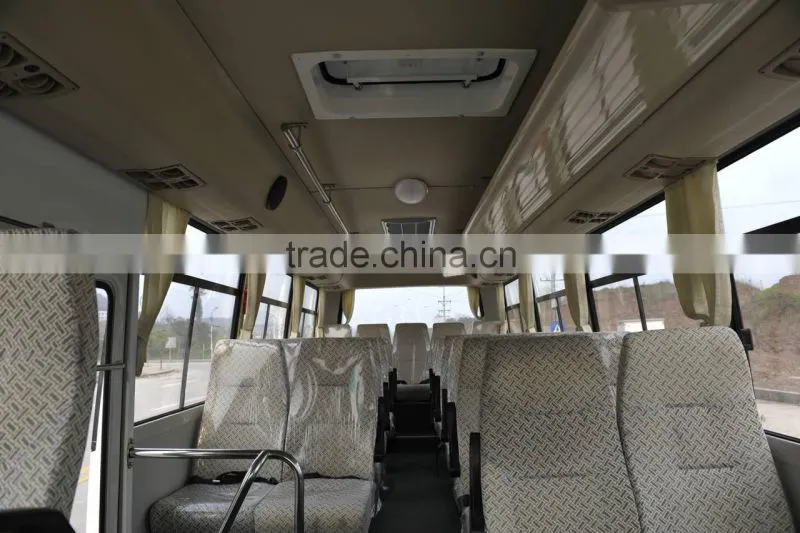

Interior trim	Integrated module inner decoration(Outlet without reading light), side wall panels for fiberboard, a bar on roof

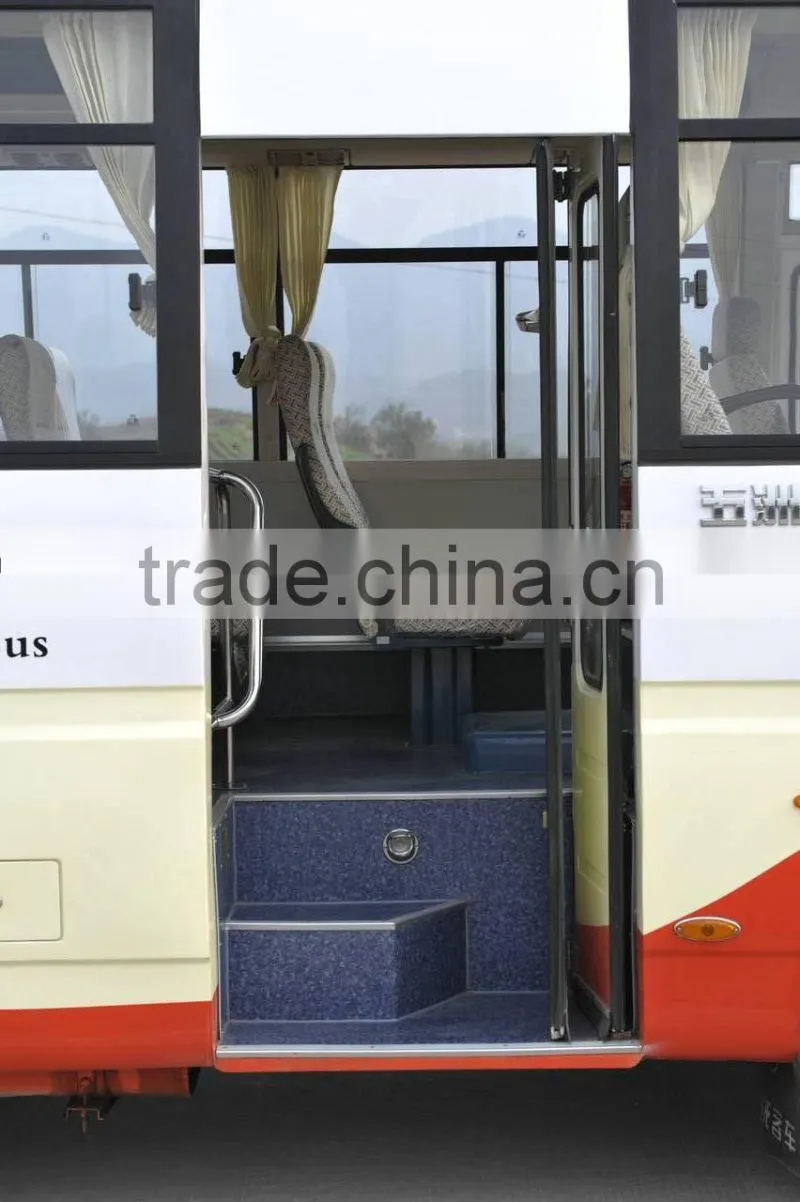

Door/Door pump	Driver's door, Center pneumatic folding passenger door,glass guardrail
Window / Windshield	Panoramic laminated front windshield, Aluminum sliding side windows, Black window frames, toughened glass
Rear view	Manual bracket-style rear view mirror/inner mirror
A/C	Top fixed refrigerating capacity 16000kcal/h
defrost system	Water-heating
Audio-Video System	MP3
Lamp	Front & Rear combination lamp,  Rectangle dome light
Wiper	Opposite scrap wiper with syringe
Seats	passenger seat/ Adjustable driver seat/ seat belts
Floor leather	Bamboo plywood floor/Domestic antiskid floor leather
Lacquer	solid lacquer
Others	Drive door pillaring a handle,a vice-drive door handle,Fire Extinguisher(4kgx1),Front windshield demi-shades,Folding side curtains,Electronic clock,tachograph ( including GPS ),Passenger door handle,Five - seat fence





Recommend similar product: Model WZL6600AT3, With 19 seats.



Manufacturer process:



Wuzhoulong factory overview:
