Specifications
L*W*H: 8990*2500*3580mmRated passenger: 24-39
Top speed:100km/h
With good quality and best price.

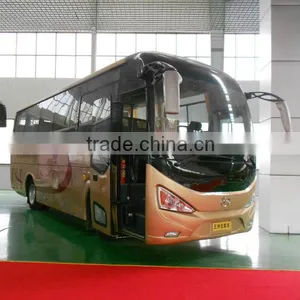

39 Seats Tourist Bus
Overall Parameter | ||||
Over all length (mm) |
8990 |
|||
Over all width (mm) |
2500 |
|||
Over all height (mm) |
3580 |
|||
Wheel base (mm) |
4300 |
|||
Front/rear overhang (mm) |
1940/2750 |
|||
Approach/departure angle(°) |
10/9 |
|||
Front /rear thread (mm) |
1940/1800 |
|||
Gross weight(kg) |
12200 |
|||
Rated passenger |
24~39 |
|||
Top speed(km/h) |
≤100 |
|||
Engine Parameter | ||||
Model |
YC6J220-42 |
|||
Manufacture |
Yuchai |
|||
Position/fuel |
Rear/diesel |
|||
Type |
Inline, 6 cylinder, 4 strokes, high pressure common rail electronic injection. |
|||
Max power (ps/r/min) |
220/2200r/min |
|||
Max torque (N.m/ r/min) |
800N.M/1200-1700r/min |
|||
Displacement (L) |
6.494 |
|||
Emission |
Euro.IV |
|||
Chassis Parameter | ||||
Type/manufacture |
Dongfeng Xiangyang EQ6870R4AC |
|||
Transmission |
ZD.F5S800, flexible manipulation (Ningbo high) |
|||
Cultch |
Monolithic dry diaphragm spring, driven disc diameter φ 395, remote control, gas booster. |
|||
Front axle |
Dongfeng DENA, 4200kg load capacity, drum brake. |
|||
Drive axle |
Dongfeng DENA, 8000kg load capacity, 4.33 speed, drum brake. |
|||
Suspension |
Multi Spring ,front9/rear 11 |
|||
Steering |
Power steering, dual gimbal adjustable steering axle, steering wheel on the front and adjustable, steering wheel diameterφ 500 |
|||
Brake |
In line with the ECE standard dual circuit brake, front and rear drum brake, the energy storage spring parking brake. |
|||
Oil tank |
200L |
|||
Tyre |
9R22.5-14PR 6PCS (Trangle brand ) |
|||
Battery/generator |
150Ah×2/150A 28V |
|||
others |
Copper water tanks, ABS, in self adjustment arm, gas control system. |
|||
Body | ||||
Structure |
Half bearing |
|||
Inner decoration |
Molding soft interior, for 5mm top plank+fabric (snow white), side PVC plate, forming duct tape luggage rack, the softening instrument station( take a pair of station and the armrest.) |
|||
Door&door pump |
Anterior single out, electric starting gate pump, remote control door lock, the safety door on the left side. |
|||
|
Windshield&side window |
Panoramic laminated front windshield, tempered after stalls, side window for fixing glass(window, rear window driving around for the aluminum alloy frame sliding window) |
|||
Review system |
Manual rabbit ear type rear view mirror. |
|||
Heating system |
Water heating |
|||
Video&audio system |
MP3, reading lamp with a trumpet, 17 inch manual type LCD TV |
|||
Lamp |
Front combination lamp, combined rear lamp, through type lamp strip of the inner dome light, the wind with reading lamp, aisle lights. |
|||
wiper |
Opposite type wiper with washer. |
|||

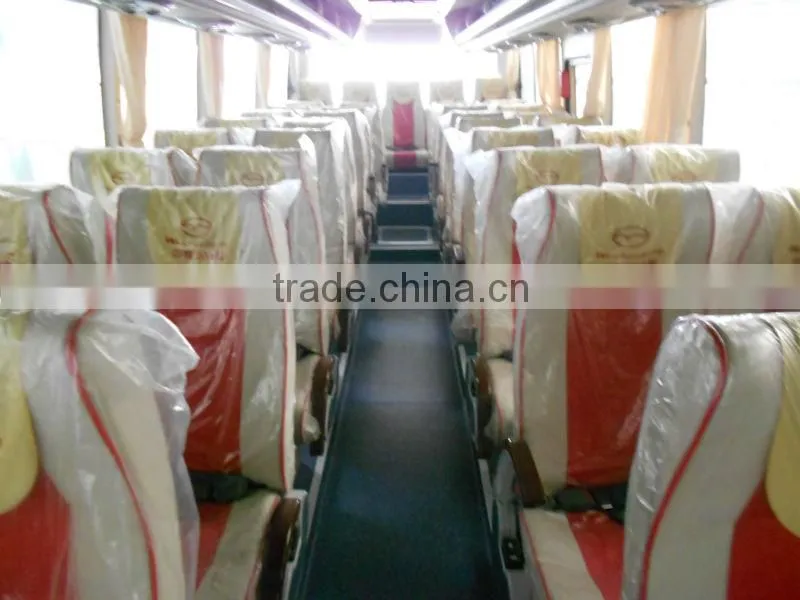

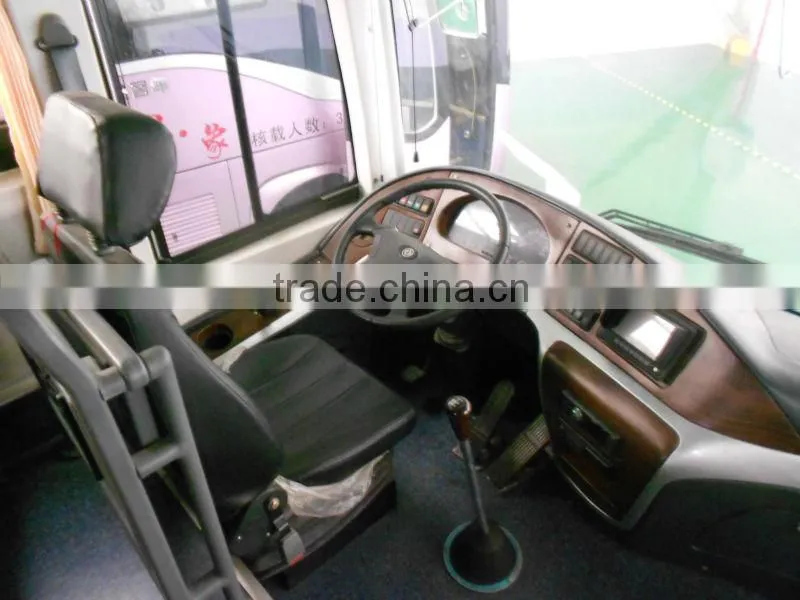

Seat |
Vehicle 37+1+1. Luxury road car seat, adjustable backrest, safety door with a turnover type double chair, before and after, height backrest of adjustable driver seat. |
|||
Floor leather |
Chinese driver seat. |
|||
Lacquer |
Chinese lacquer |
|||
A/C |
independent overhead air-conditioning refrigeration capacity: 24000kcal/h, model BFFD-04. |
|||
Bin door |
Aluminum alloy doors, turn type. |
|||
Hand rail |
The tailgate, front passenger door baffle, fired softening. |
|||
Others |
Electronic clock, Folding side curtains , front windshield , the driver window sunshade, Aluminum alloy wheel covers ( semi- cover ), (4Kg×1)Fire extinguisher, Warning triangle 1pcs, Security hammer with alarm function 4 pcs,Color reversing monitor,bus monitor(2 cameras), Driving recorder with GPS function, Engine compartment automatic fire extinguisher with alarm function, The 920B type with ventilator skylights 1pcs |
|||
Recommend similar products: Model WZL6110A4, with 49 seats.
