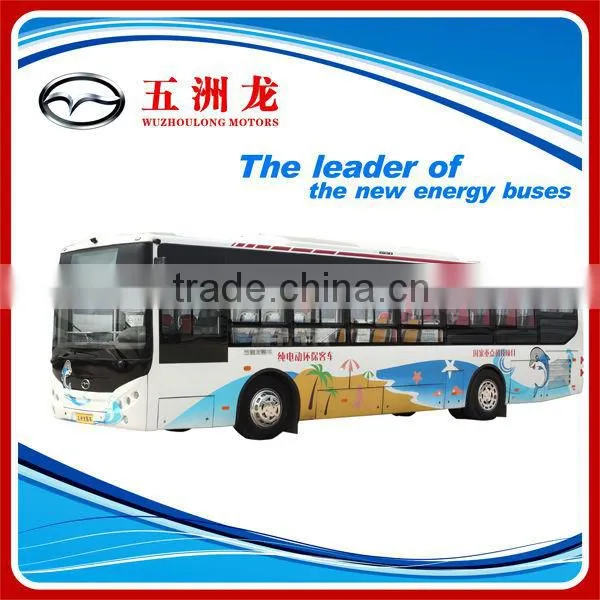

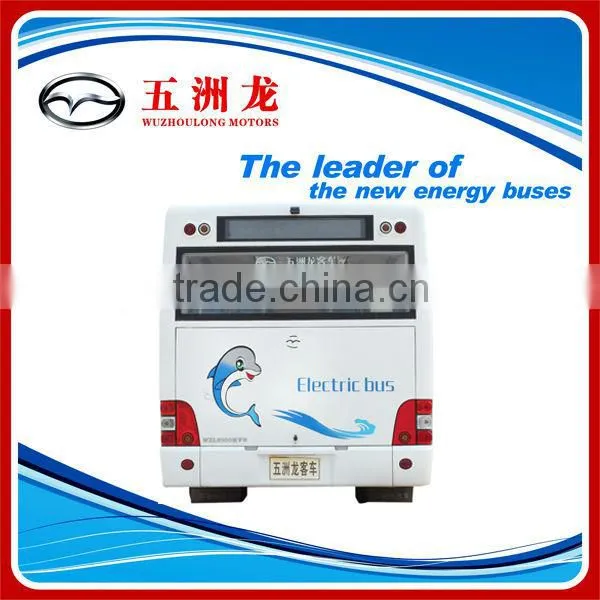

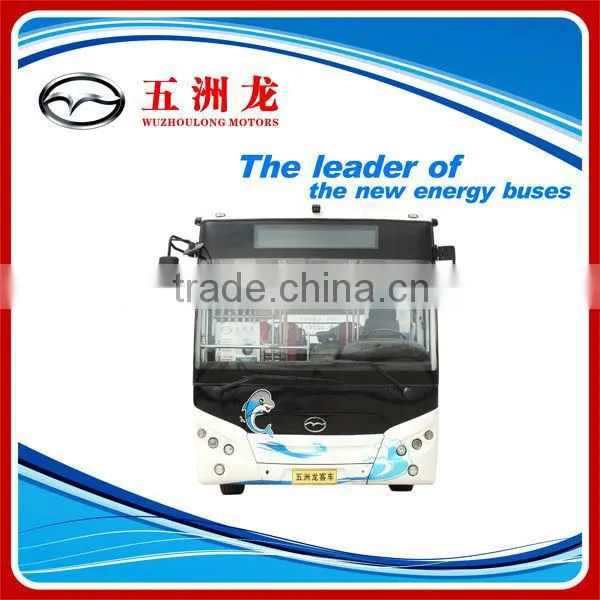

Wuzhoulong 10.5M Electric City Bus for SAle

Name: Wuzhoulong 10.5M Electric City Bus for SAle
Brand: Wuzhoulong
SKU: 107166343
Availability: InStock

US$ 232,000 - 285,000 MOQ: 1 Unit

Key Specifications

Seats:

21 - 40

Emission Standard:

Other, zero emission

Transmission Type:

Automatic

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Other, zero emission

Transmission Type Automatic

Max Speed 51 - 70 km/h

Steering Position LHD

Fuel Type Electric

Dimensions (L x W x H) (mm) 10490*2480*3235mm

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number WZL6100EVG

Specifications

10.5m Pure Electric Intercity Bus
Size: 10490x2480x3235mm
Rated passenger: 61/25-39
Top speed: 69km/h

Our products can be customized,

small order quantity is acceptable.

10.5m Pure Electric city bus Configuration

Overall Parameter

Electric Motor Parameter

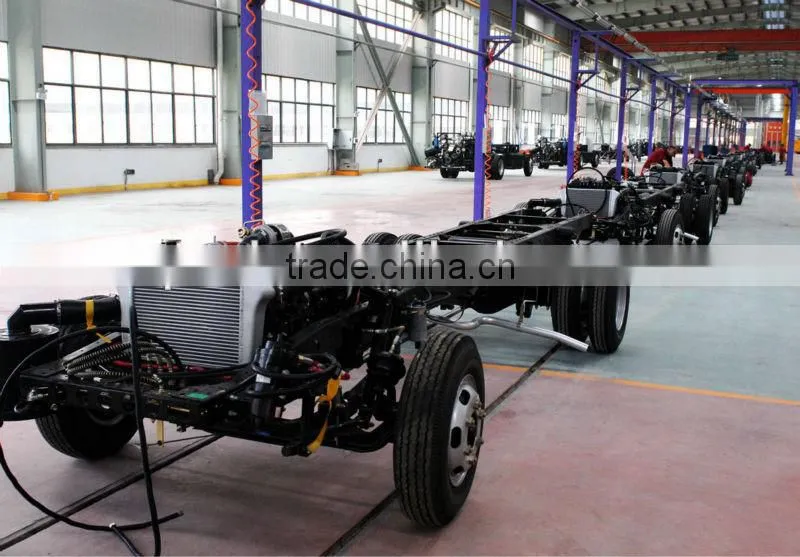

Chassis Parameter

Chassis Mode/Manufacture	WZL6100DEVR /Chongqing Wuzhoulong
Battery/Manu.	EV346V600Ah, Guangdong Power Technology Co., Ltd. Wuzhou Dragon
Transmission	QJ1205
Clutch	φ395 ,Electric control ,single .dry style , diaphragm spring
Front axle	EQ153 , Forged module, “H”type section, two fist-end type
Driving axle	EQ153 Single-grade reduction, hyperbolic gear
Suspension	Leaf Spring,3/4
steering	power steering
Brake	Dual-circuit drum braking system according with ECE standard .Automatically air-cut brake.
Tyre	275/70R22.5 6pcs
Storage battery	165A.hx2/110A+140A 28 V

Body

Frame Structure	Semi-monocoque

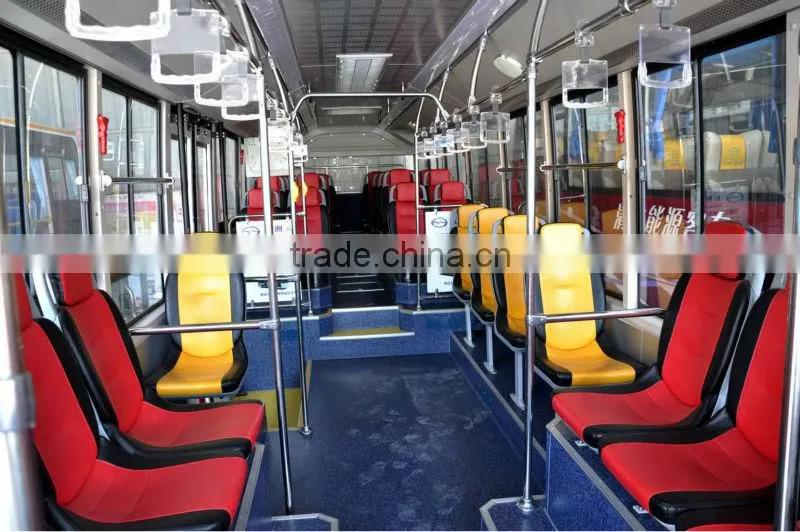

Interior trim	Integral molding intenerate interior trim, Yellow spray roller spend handrails, Hang Ring 16 pcs
door&pump	Front single Phenetic inner-swing passenger door, rear double inner-swing passenger door
Window & Windshield	Whole view laminated front windscreen/ Adhesive side window, sliding side window at rear
Rear-view / Inner view System	Pole shape rear view mirror & inner view mirror, The Inner monitor for Rearing the bus.
A/C	Roof style , cool capacity 26000Kcal/h
Defrost system	Electric defrosting
Audio-Video System	MP3
Lamp	Front&Rear combination lamp, Long Box Light .
Wiper	Opposite scrap wiper with syringe

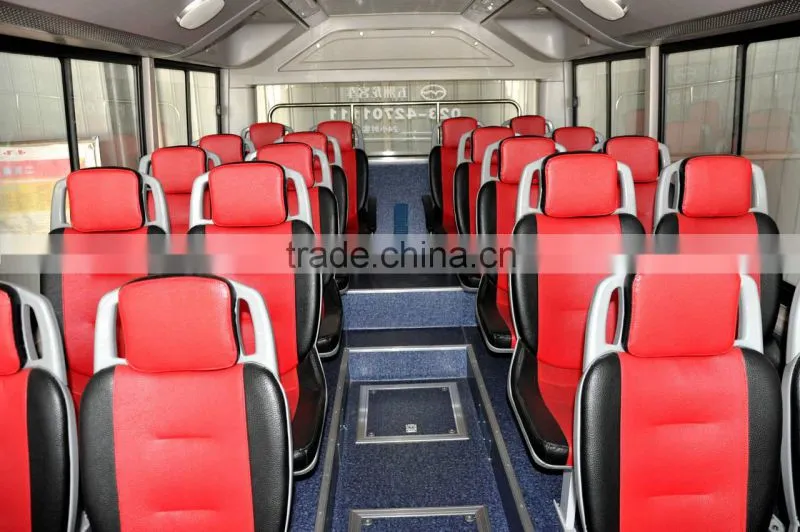

Seats	32+1 Injection Molding with soft cushioning Public city bus seats Adjustable driver seats .
Floor leather	Anti-sliding floor leather
Lacquer	Solid lacquer
Others	Extinguisher,(4Kg×2), 2 auto distinguishers in engine compartment, froth rail ,Half driver sun-visor, 4 Safety hammers, Air filter access door, Front & Rear luminescence Road Line, Colorful Rearing Monitor, Electric Clock.
