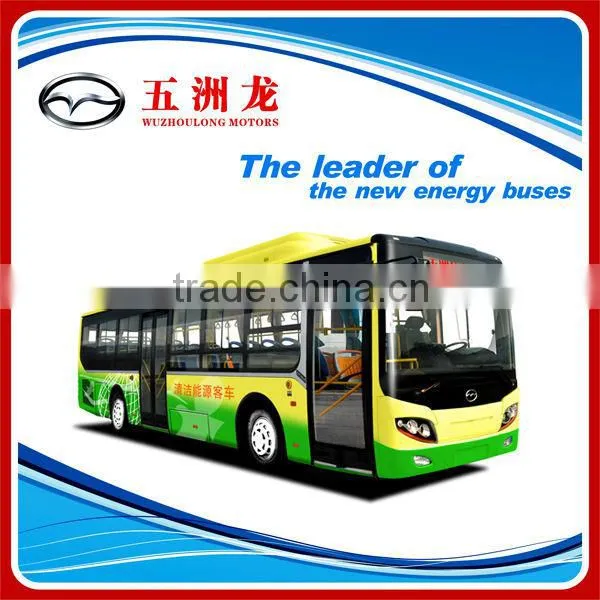

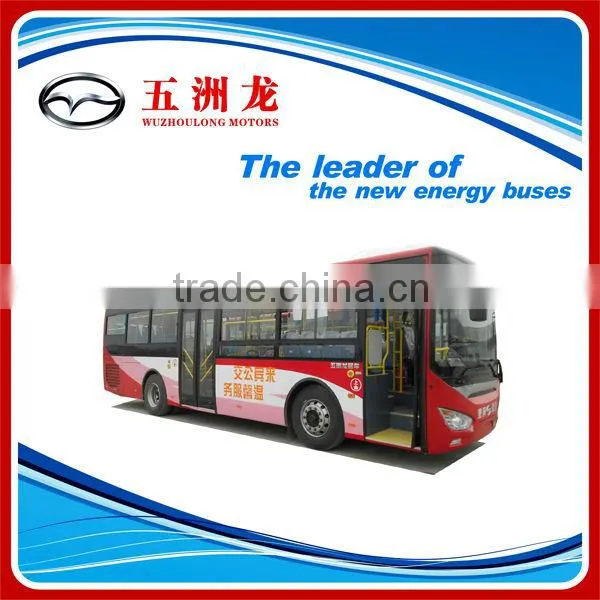

Help CenterWZL6100NG4 CNG City Bus
Related Products
Specifications
Fuel can be Diesel or CNG.Engine standard can be Euro III/Euro IV
With good quality and best price.
Specification
Overall Parameter | ||
Overall Length (mm) |
10490 |
|
Overall Width (mm) |
2480 |
|
Overall Height (mm) |
3380 |
|
Wheelbase (mm) |
5000 |
|
Front/Rear Overhang(mm) |
2250/1860 |
|
Approaching/Departure Angle(°) |
9°/8° |
|
Front/Rear Tread (mm) |
2040/1860 |
|
Max. Weight(kg) |
15000 |
|
Rated Passenger |
70/24-40 |
|
Top Speed(km/h) |
90(km/h) |
|
Engine Parameter | ||
Model |
YC6G230N-40 |
|
Manufacturer |
YUCHAI |
|
Position/Fuel type |
Rear/ CNG |
|
Type |
CNG inline, 6cylinders, 4 Stokes, CNG,water, inter-cooling, four stroke |
|
Max Power (kw/r/min) |
170/2300 |
|
Max Torque (N.m/r/min) |
850/1400 |
|
Displacement (L) |
7.8 |
|
Emission Standard |
Euro IV |
|
Chassis Parameter | ||
Model |
NJ6101YBC1/Nianqi |
|
Gear box |
QJ805 5 speed. |
|
Clutch |
φ395 diaphragm spring clutch. |
|
Front Axle |
Forged module, “H”type section, two fist-end type 5.5T |
|
Drive Axle |
Single-grade reduction, hyperbolic gear 11T |
|
Suspension |
Leaf spring 5/5 |
|
Steering |
Integrated power steering |
|
Brake |
ECE standards, dual-circuit pneumatic, drum braking., Snuff brake |
|
cylinders |
(80X6)480L |
|
Tyre |
10.00-20 6pcs |
|
Motor /battery |
150Ah×2/70A 28V |
|
Body | ||
Body constructure |
Semi-monocoque |
|

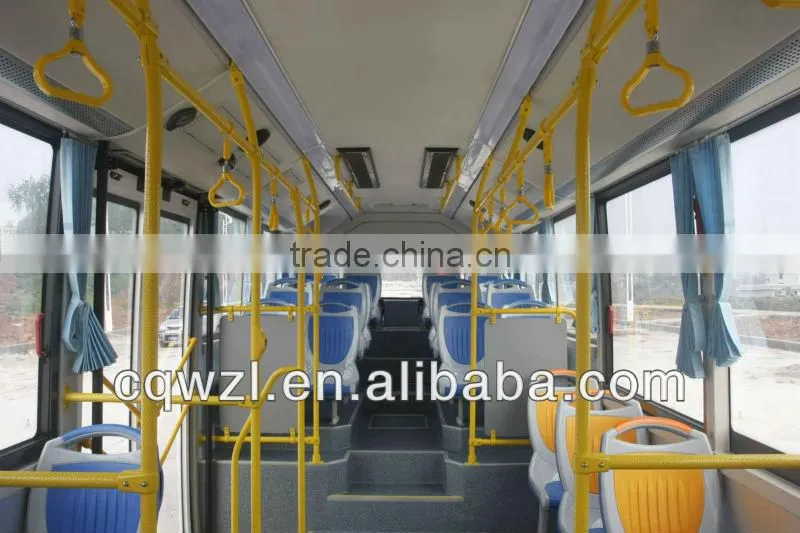

Interior Trim |
Pvc Roof Board ,side wall board is fiber BoardYellow spray roller spend handrails,16 wish rings |
|

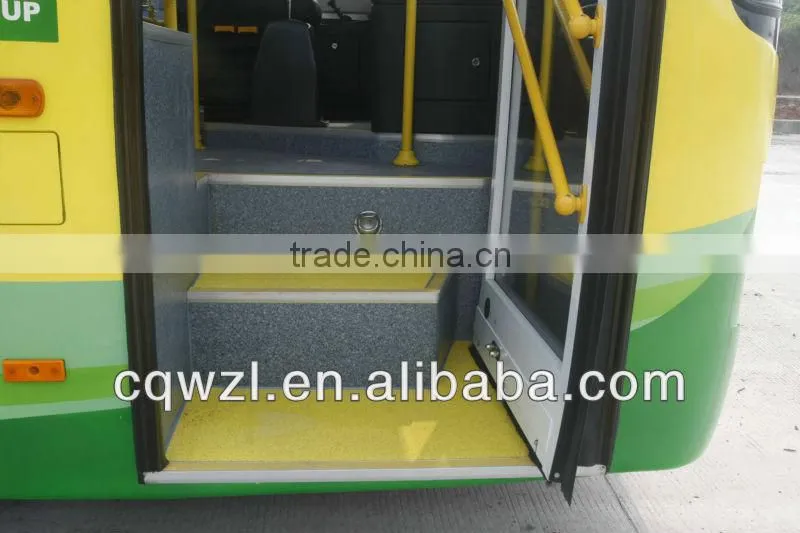

Door |
Front single, Rear double pneumatic folding passenger door |
|
port door |
swinging port steel door. |
|
Window and wind screen |
Full-view laminated windscreen, alloy aluminum sliding side windows. |
|
Rearview system |
Lever rearview mirror, rear view mirror, inside view mirror. |
|

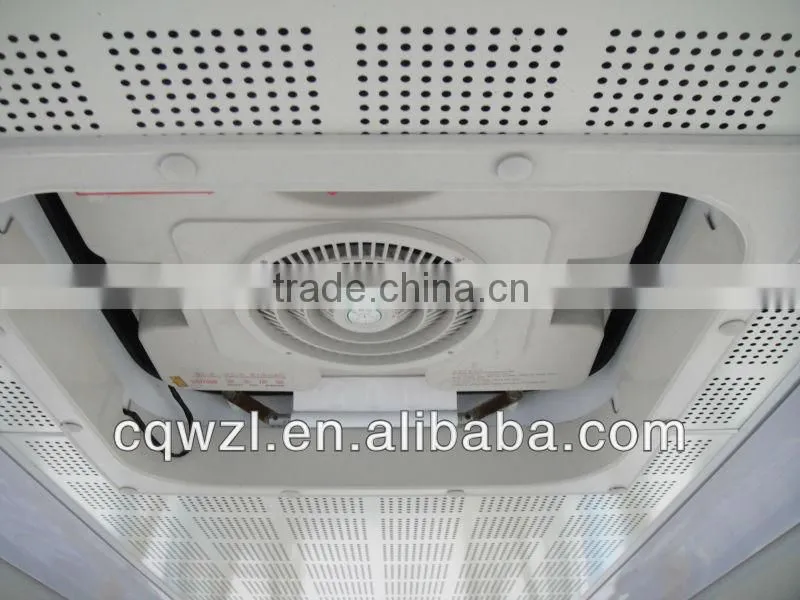

A/C |
26000kcal/h top fixed |
|
Heating system/ defrost |
water-heating defrost system |
|
Auto Video system |
MP3 |
|
Lamp |
Integral high and low headlamp, rear combined lamps,3 roof lamps |
|
Rain wiper |
opposed wiper with detergent. |
|
seats |
Plastic bus seats, Standard seats 23+1, multifunctional adjustable driver seat |
|
Handrail |
Spraying plastic knurling handrail . |
|
blanket |
China leather |
|
Lacquer |
solid Lacquer |
|
others |
1.extinguisher 2.froth rail sun-visor 3.Half driver sun-visor 4.4 Safety hammers 5.Air filter access door 6.Front / rear COLE LIHJT got Line 7.inductive fire extinguisher in engine compartment(2pc) 8.electric clock |
|
Recommend similar product: Model WZL6100G4, diesel fuel.
