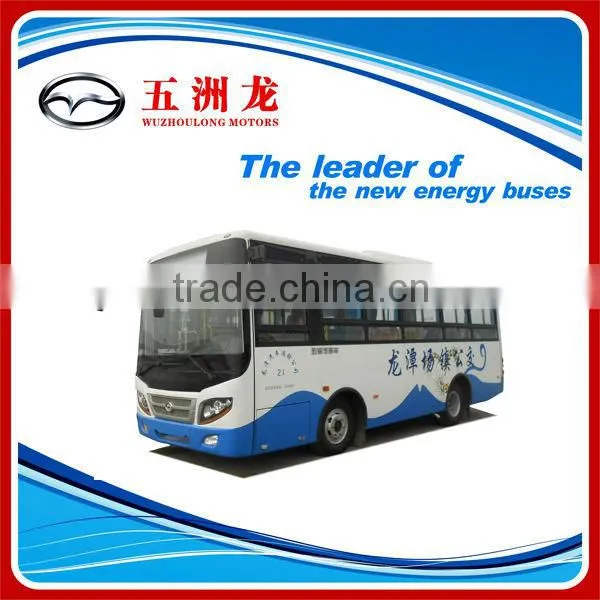

7.3m 16-25 Seats Inner City Diesel Bus1 front engine
2 strong power output
Our products can be customized,
small order quantity is acceptable.
7.3m 16-25 Seats Inter City Diesel Bus
Overall Parameter | ||||
Overall length (mm) |
7340 |
|||
Overall width (mm) |
2380 |
|||
Overall height (mm) |
2970, 3050 |
|||
Wheelbase (mm) |
3300 |
|||
Front/Rear overhang (mm) |
1910/2130 |
|||
Approach angle/ departure angle (°) |
11/11 |
|||
Front/rear tread (mm) |
1860/1612 |
|||
Gross weight(kg) |
9000 |
|||
Rated passenger |
40/16-25 |
|||
Top speed (km/h) |
75 |
|||
Engine Parameter | ||||
Engine model |
YC4FA130-40 |
|||
Engine manufacturer |
YUCHAI |
|||
Engine position/ fuel |
Front/diesel |
|||
Engine type |
Inline cylinders,4 strokes ,water-cooling ,turbo-intercool, |
|||
Max power(kw/r/min) |
95/3200 |
|||
Max torque(N.m/ r/min) |
340/1600~2400 |
|||
Displacement(L) |
2.982 |
|||
Emission standard |
Euro. IV |
|||
Chassis Parameter | ||||
|
Chassis model /manufacturer |
EQ6693T4AC Xiangfan |
|||
Transmission |
DF5S410 Dofeng Manual five files with synchronizer |
|||
Clutch |
single dry spring , Driven plate diameter , φ480,Hydraulic long-distance manipulation ,gas power |
|||
Front axle |
''H" section forged modeling,with stand 3.5T |
|||
Driving axle |
Integrate punching Shell , 5 T, gear ratio 4.88 |
|||
Suspension |
More pieces of steel plate spring (front nine /rear 11), level 3 step |
|||
Steering |
power steering |
|||
Braking |
Accord with standard double loop ECE air brake, drum brakes, energy storage spring in car brake |
|||
Oil tank |
135L |
|||
Tyre |
8.25-16 6pcs |
|||
Charging / generation |
120Ah×2/55A 28V |
|||
Body | ||||
Body construction |
Semi-Monocoque |
|||
Interior Trim |
Molding soften the interior ,roof-PVC , side plate- fibre board,Bus rings |
|||
Door and pump |
Front single ,rear double inner swing |
|||
Windblock ,side window |
Panoramic laminated front windshield ,tempering rear windshield, side window arealuminium alloy sliding window |
|||
Rearview system |
Insert the rearview mirror, endoscopes |
|||
Warm wind/defrosting |
Plumbing defrosting |
|||
Audio system |
MP3 |
|||
Lights |
Combination headlight,Combination rearlight,3 rectangle top lights |
|||
windscreen wiper |
Scrape type of wiper with scrubber |
|||

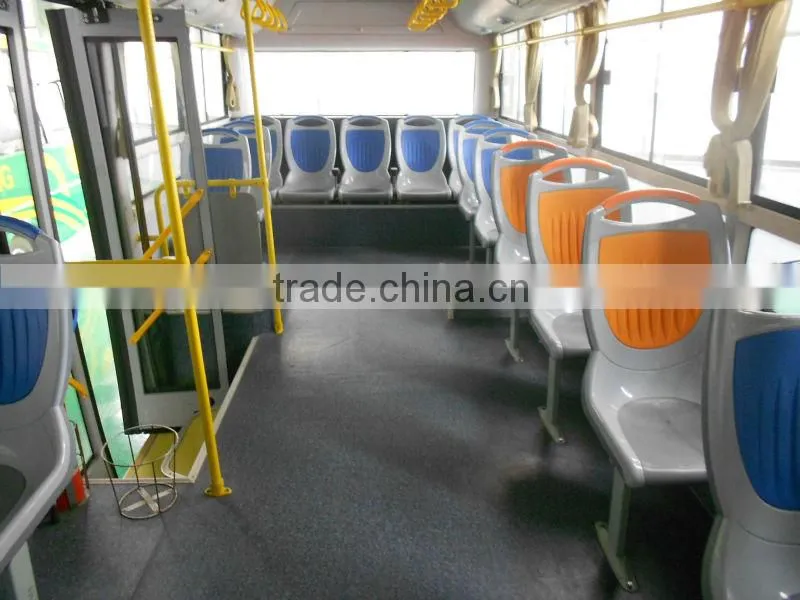

Seats |
Plastic seats,15+1,adjustable driver seat |
|||
Ffloor leather |
China floor leather |
|||
Lacquer |
China lacquer |
|||
A/C |
16000kcal/h top fixed |
|||
Luggage door |
Turn tilting iron hatch |
|||
Handle |
Yellow plastic spraying roller spend steel tube armrest |
|||
Others |
fronthalf block of type curtain curtain driver abat vent,fire extinguisher (4Kg×2),front/mid/rear light box guideboard,tye, safe hammer 4 pcs |
|||
