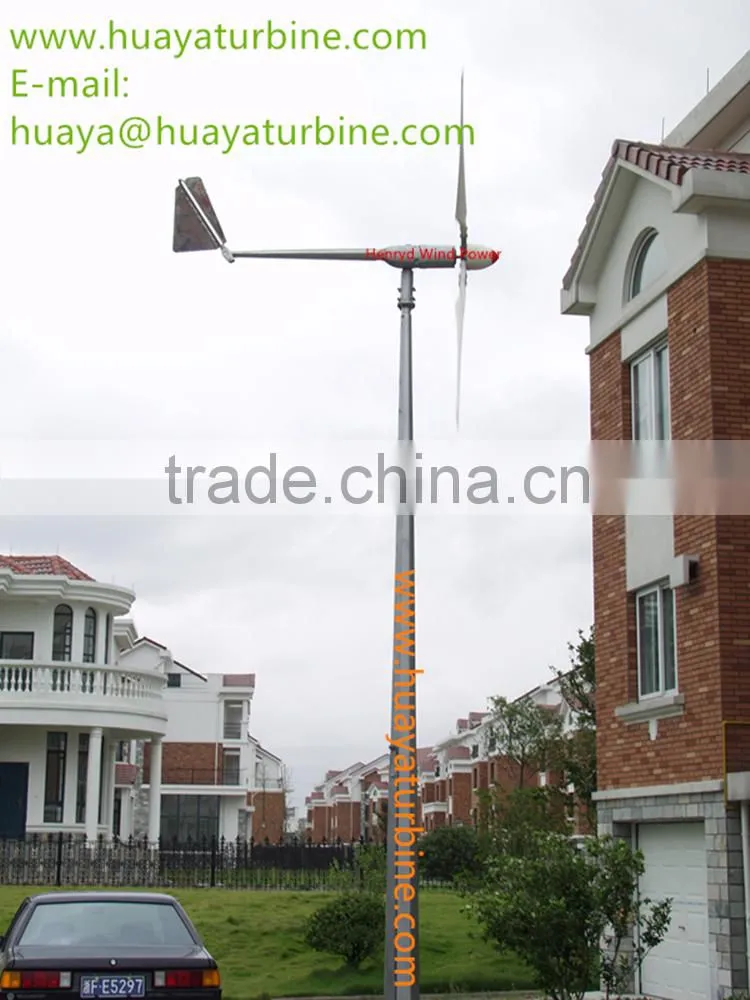

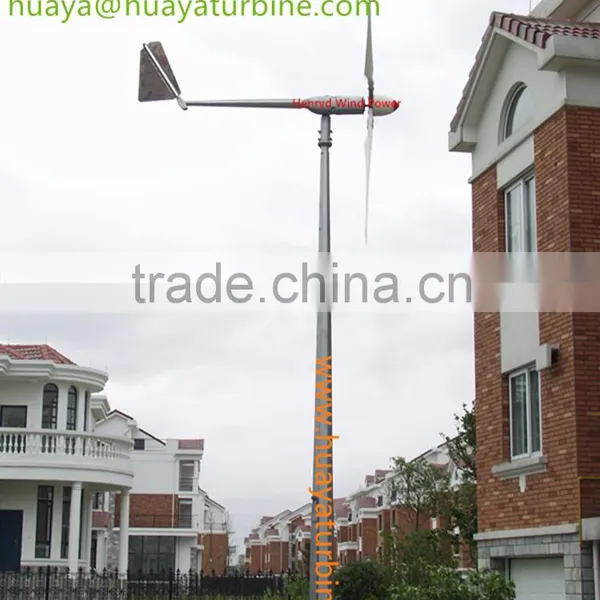

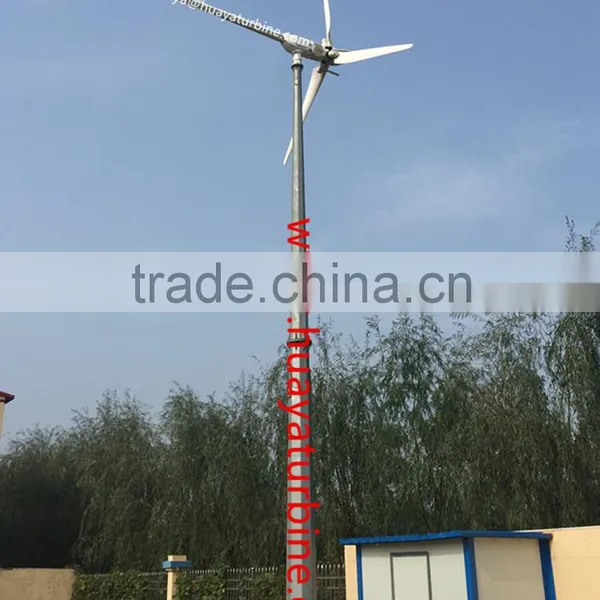

HENRYD! 6kw wind turbine generator, FD6-6kw wind power generator, 6kw horizontal axis wind turbine, windmill generator
Wind turbine main body For sales: US$2500.00/set.
Including 3 pcs blades, nose cone, generator, manual braking system, tail rod, tail vane.
Provide the inverter, controller, tower price seperately.
We provide on grid system/off grid system completely system. controller with dump load, tower, inverter price pls contact with us.
Introduce:
Off grid system:
Use 6KW Wind Turbine Generator to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
On grid system:
Use 6kw Wind turbine Generator to generate electricity and feed to the utility grid. Controller converts 3 phrase AC power to Dc and supply to Grid tie inverter. After grid tie inverter, system supply power to home and feed to grid.
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 12m/s |
| Rated rotate speed: | 250r/min |
| Rated output power: | 6kw |
| Max output power: | 7.5kw |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag |
| Working voltage: | 120v, matched with 12m storage battery 10 pcs. |
| Tower height: | 12m |
| Wind turbine main body weight: | 450kg |
| Measurement(CBM): | 1.8CBM (wind turbine main body) |
| Life span: | 15-20 years; |

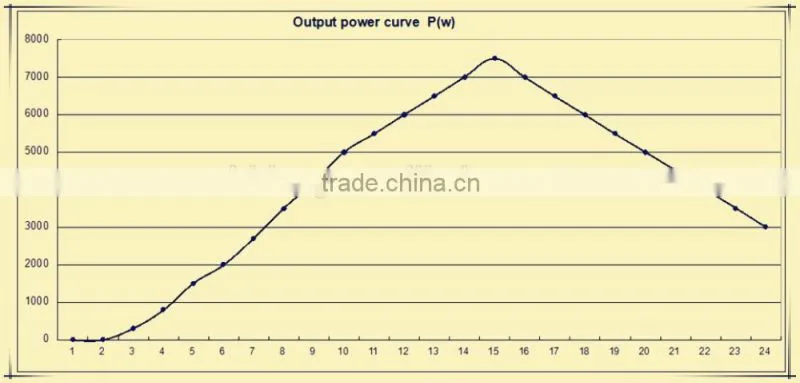

Output power curve:
Production Capacity: 200 sets per month
Main market: US, Canada, Australia, New Zealand, European...
Testing Machinery:
Generator platform test
Blade balance adjustment instrument
Blade weight center test platform
Turbine turn-to-turn test system
......
CE, ISO,IEC approved
Wind turbine main body assembly:
Including 3 pcs blades, hub, nose cone, tail rod, tail vane, generator, manual brake system,nacelle:

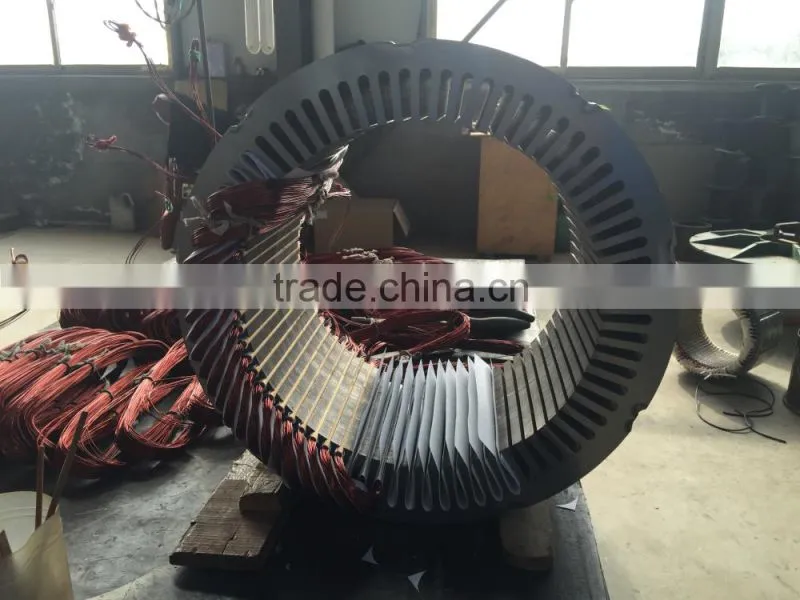

Stator winding with copper wires

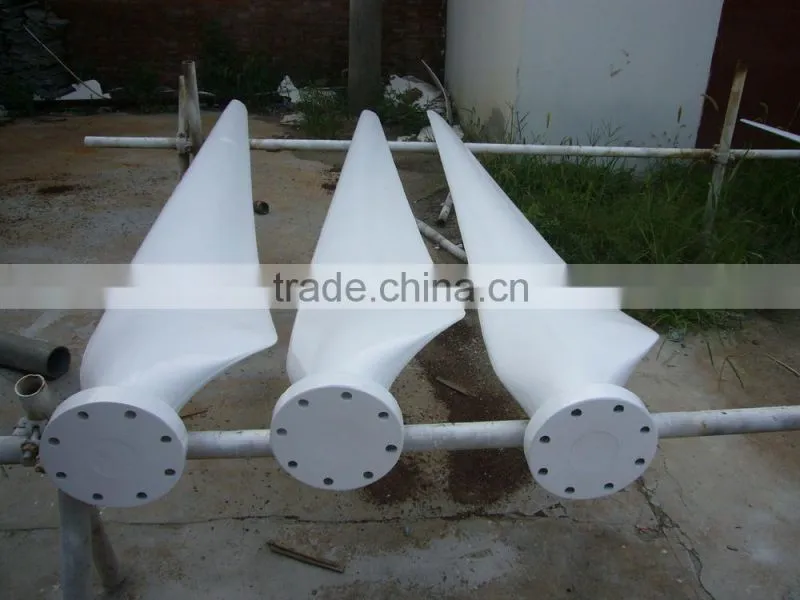

FRB blades with protection film, low noise level, high efficiency.

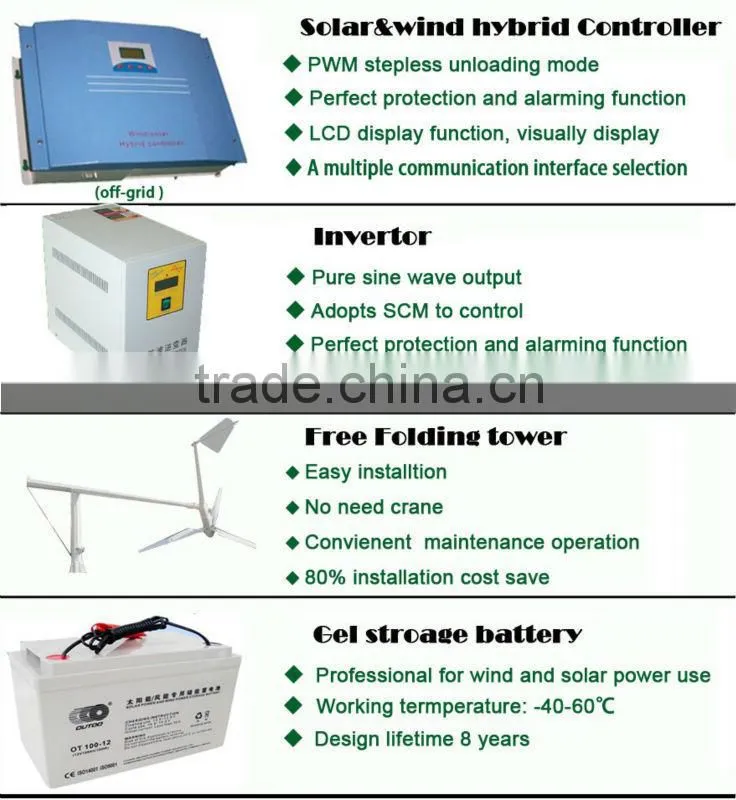

6kw wind turbine working system:

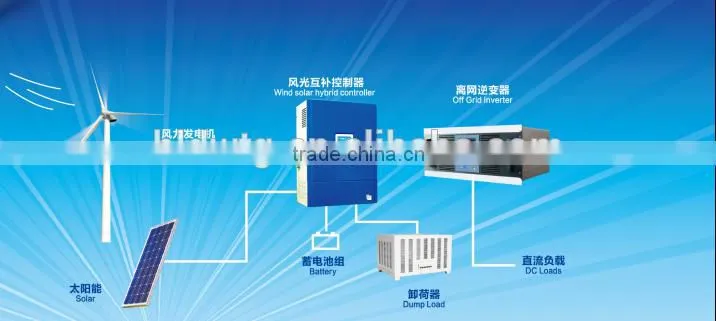

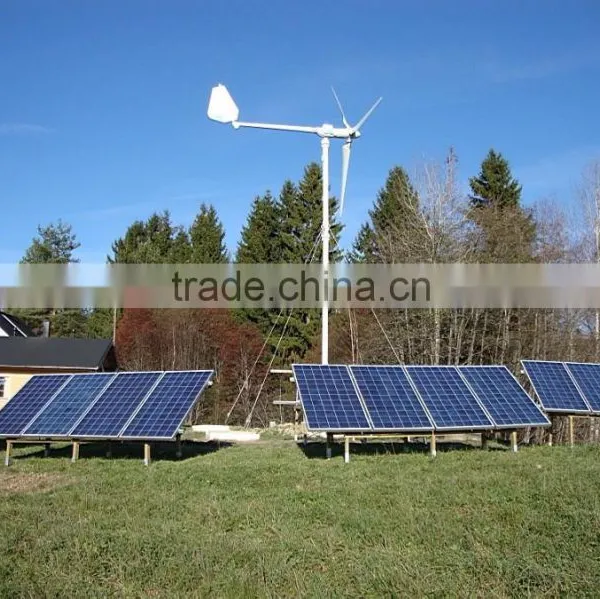

Wind (solar hybrid) off grid system:
Wind turbine with tower( + solar panel)+PWM charge controller with dump load + battery group + inverter-->home appliance
system working voltage: 96v 120v 240v
Inverter output 110v 60hz, 220v 60hz, 220v 50hz single phrase AC power

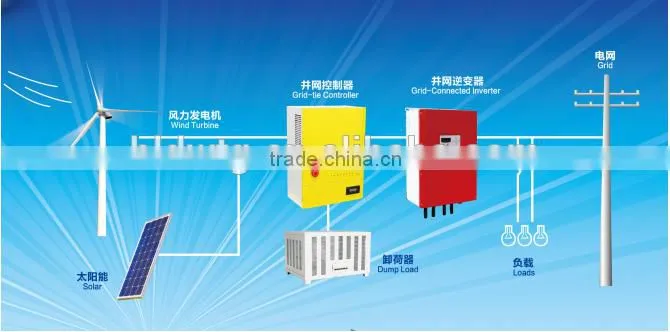

Wind (solar hybrid) on grid system:
(grid power, diesel generator can be backup power)
Wind turbine with tower( + solar panel)+PWM on grid controller with dump load + grid tie inverter-->utility grid
system working voltage: 240v 300v 360v 380v 500v
Grid tie inverter single phrase output, 110v 60hz, 220v 60hz, 220v 50hz
Backup power:
Grid power, diesel generator can be backup power with whole system. Provide system design service without charges.

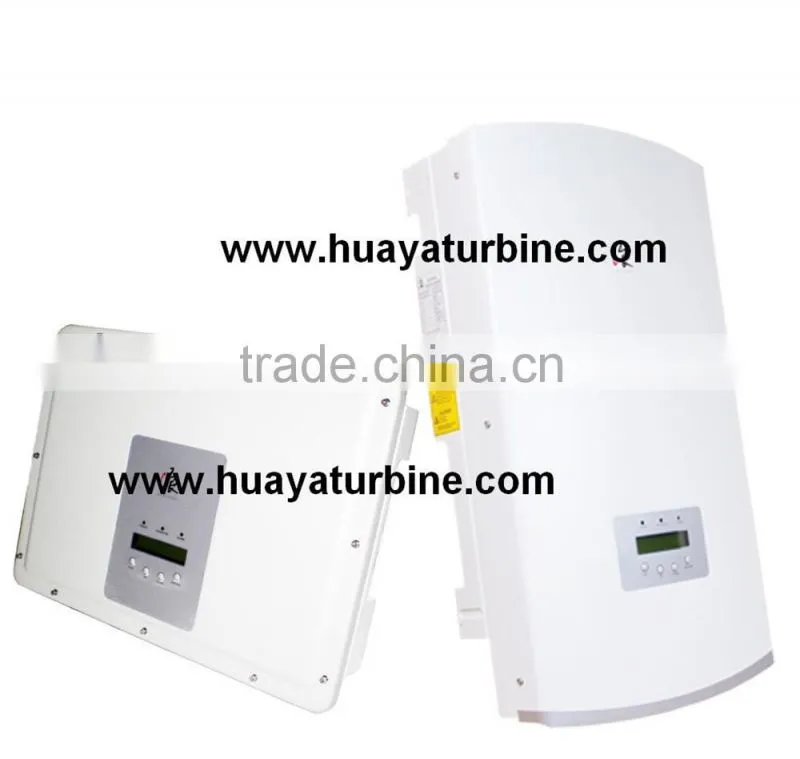

Inverter:
Matched grid tie inverter 6k, pure sine wave inverter single phrase/ 3 phase
Inverter output voltage, frequency can be manufactured according to different countries request.

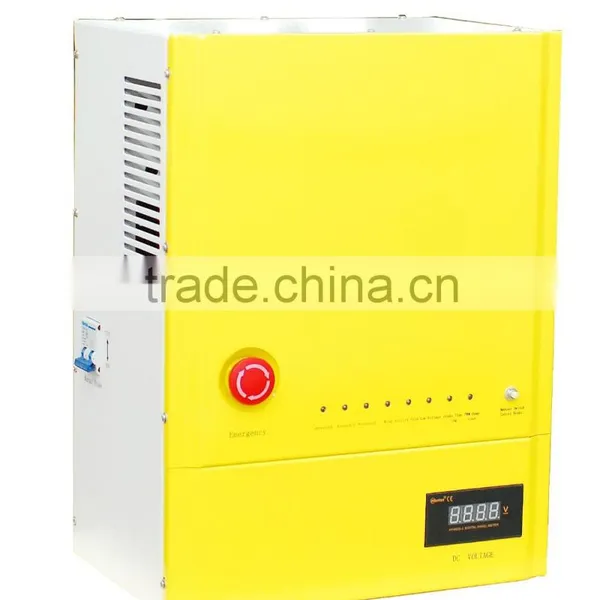

Controller:
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie Inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phase/ 3 phase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
Tower for the wind turbine:
Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
6kw wind turbine application:
Home, farm, signal station, island, garden...
6kw fixed pitch wind turbine advantage:
- Low/normal average wind speed wind turbine
- Fixed pitch,auto yaw, auto brake, manual brake protection system.
- Low cost, reliable and steady working system
- Low start up wind speed 3m/s
- Low noise level, provide noise drawing chart
- High efficiency 3 phrase AC permanent magnet generator
- Vacuum mould blades with protection film, long worklife span in sand wind condition
- Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...

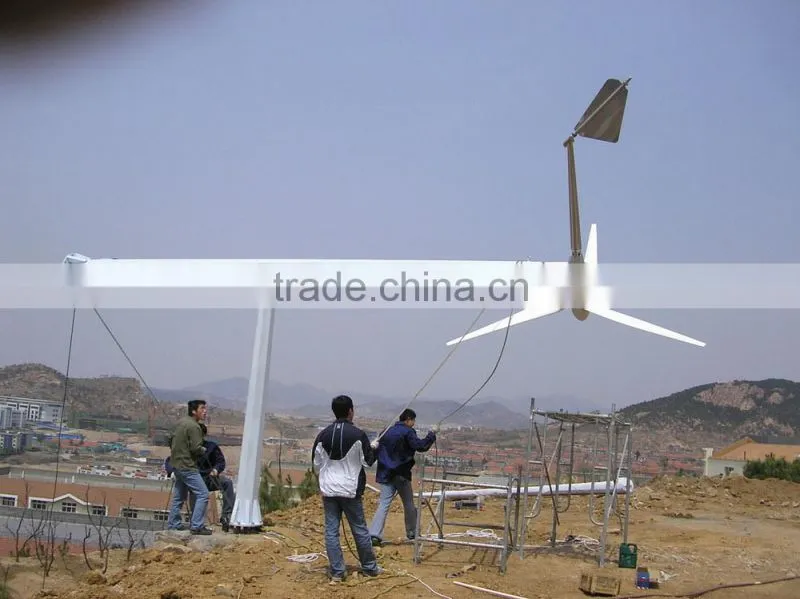

- tilting up tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order. Guy wire tower cost is lower and easy to delivery.
- We provide completely on grid system kit, off grid system kit, wind solar hybrid on/off grid system kit. Grid power and diesel generator as backup power
ONE SET 6KW WIND TURBINE DELIVERY BY SEA LCL.
6kw wind turbine main body, inverter: packed in plywood case;
controller with dump load: carton
Tower inset together and packed with snake bages.
Normally we delivery the products by sea. If you need us check the delivery cost, pls let us know the destination port to you. Then we will check the delivery cost accordingly.
| Product description | Packing size(m) | G.W(kg) | G.CUBAGE (M3) | Q'ty | Remark | |
| 6kw 48v wind turbine main body | generator and rotor body | 1.96*0.81*0.5 | 387 | 0.45 | 1 | plywood case |
| tail rod | 1.41*1.04*0.2 | 56 | 0.29 | 1 | ||
| blades and tail vane | 2.71*0.58*0.35 | 120 | 0.55 | 1 | ||
| controller with dump load | 0.76*0.61*0.78 | 84 | 0.28 | 1 | ||
| 6kw12m tilting up tower | tower bottom part | 0.84*0.84*5.8 | 610 | 5.72 | 1 | |
| tower upper part | 0.53*0.53*5.8 | 1 | ||||
| base plate | 0.84*0.84*0.008 | 21 | 0.0056 | 1 | ||
| ground screws | 1.83*0.27*0.23 | 138 | 0.11 | 1 | ||
| 10kw inverter | inverter | 0.51X0.58X1.31 |
210 | 0.39 | 1 | plywood case |
| 1626 | 7.8 | 9 | ||||
Normally we delivery the products by sea. If you need us check the delivery cost, pls let us know the destination port to you. Then we will check the delivery cost accordingly.
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.

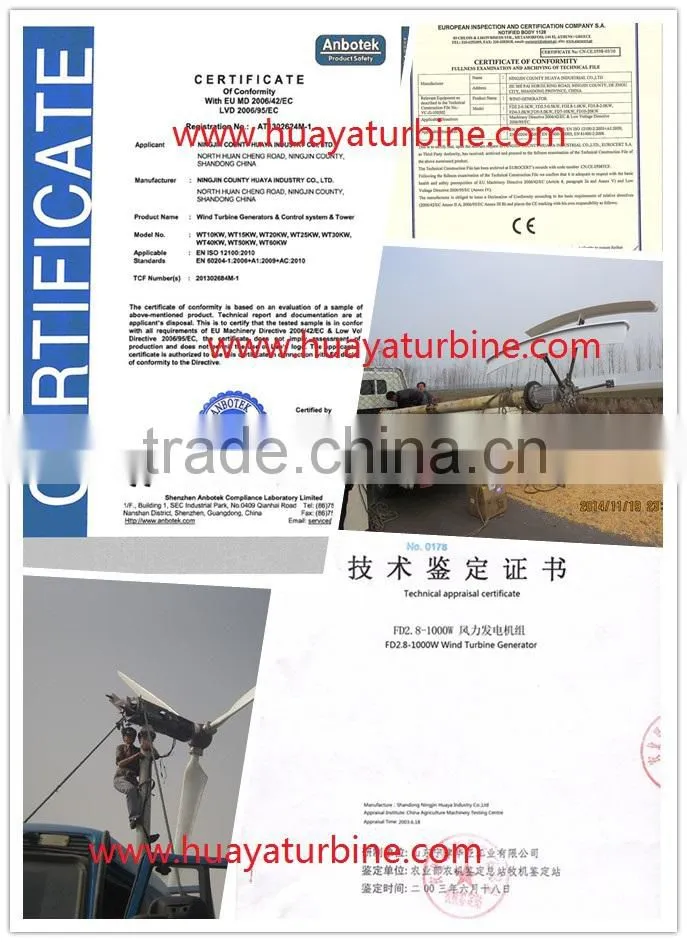

CE,IEC TEST REPORT, 61400-2 CERTIFICATION
office building, workshop, warehouse...
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
