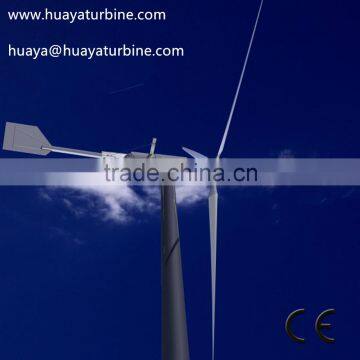

20KW! 20KW wind turbine wind generator, horizontal axis wind power generator 20kw aerogenerator, eolic generator windmill
FD12-20kw KW WIND TURBINE MAIN BODY: US$7900.00/set.
( Including 3 pcs blades, nose cone, hub, generator, manual brake system, nacelle, tail rod, tail vane.)
PWM controller with dump load, inverter, tower price will provided seperately.
User can take whole system from us, also can take any part of the system from us.
1. 20kw Wind turbine model selection
Horizontal axis, directly drive, fixed pitch, auto furling wind turbine, FD10-20kw, FD12-20kw.
Permanent magnet generator, 3 phase AC
3 pcs FRB blades, high efficiency, low noise
FD12-20kw wind turbine work in low average wind speed place lower than 6.5m/s;
FD10-20kw wind turbine work in normal average wind speed place 6.5m/s-8m/s.
New designed 20kw wind turbine, pitch controlled, auto eletric controlled by controller, tailless new model work in rich wind speed place.
2. 20kw Wind turbine spec
| Model: | FD12-20kw |
| Rotor Diameter: | 12m/s |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 10m/s |
| Rated rotate speed: | 160r/min |
| Rated output power: | 20kw |
| Max output power: | 30kw |
| Type of tower: | Manganese steel independence tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag,controller auto brake protection |
| Working voltage: | DC240v-DC500V, optional |
| Tower height: | 15m-30m or special request |
| Wind turbine main body weight: | 1700kg |
| Measurement(CBM): | 6.5CBM (wind turbine main body and controller) |
| Life span: | 20 years; |
| Warranty: | 3 years |
| Working system: | on/off grid working system |
10m,12m blades rotor diameter optional
directly drive, hotizontal axis
3 pcs FRB blades with protection film
PWM on grid controller with dump load + Aurora power one grid tie inverter
500v working system
Stand alone tower, hydraulic tower, lattice tower (provide foundation drawing)
| Model: | FD10-20kw |
| Rotor Diameter: | 10m |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 12m/s |
| Rated rotate speed: | 170r/min |
| Rated output power: | 20kw |
| Max output power: | 30kw |
| Type of tower: | Manganese steel independence tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag,controller auto brake protection |
| Working voltage: | DC240v-DC500V, optional |
| Tower height: | 15m or special request |
| Wind turbine main body weight: | 1700kg |
| Measurement(CBM): | 6.1CBM (wind turbine main body and controller) |
| Life span: | 20 years; |
| Warranty: | 3 years |
| Working system: | on/off grid working system |
Blades, hub for the wind turbine
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery

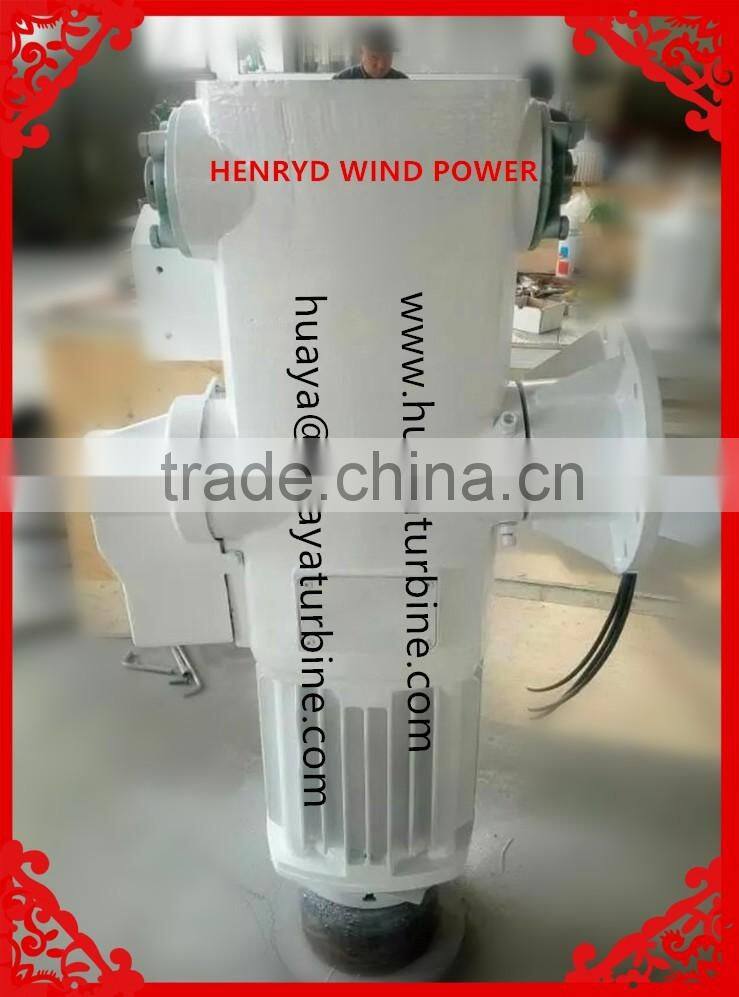

Iron cast housing made by losting mould. Beautiful and antirust. Rare earth material, high efficiency and low start up torque

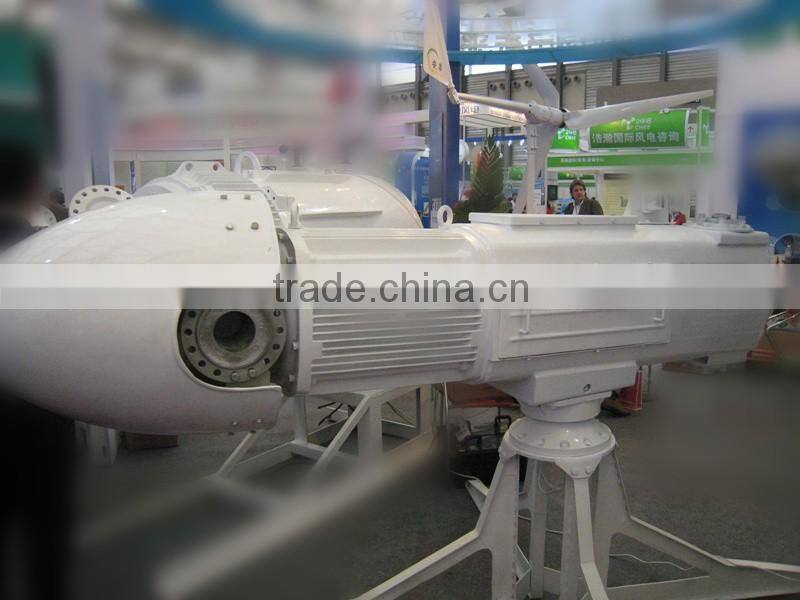

Wind turbine assembly
3. Output power data
| Power w | wind speed(m/s) |
Rotation speed(r/min) |
working voltage(V) | Output power(W) |
| 20000 | 3 | 57 | 158 | 773 |
| 4 | 83 | 207 | 1259 | |
| 5 | 103 | 235 | 3751 | |
| 6 | 124 | 290 | 7057 | |
| 7 | 141 | 338 | 12794 | |
| 8 | 158 | 367 | 15985 | |
| 9 | 172 | 419 | 19027 | |
| 10 | 191 | 490 | 21037 | |
| 11 | 209 | 520 | 22797 | |
| 12 | 220 | 550 | 23610 | |
| 13 | 235 | 575 | 25194 | |
| 14 | 249 | 590 | 26440 | |
| 15 | 268 | 600 | 27940 | |
| 16 | 268 | 600 | 27940 | |
| 17 | 268 | 600 | 27940 | |
| 18 | 268 | 600 | 27940 | |
| 19 | 268 | 600 | 27940 | |
| 20 | 268 | 600 | 27940 |
4. Wind turbine freatures
| 1. Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
|
2. Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven. |
| Connection is reliable, durable, smooth operation without vibration. |
| 3. Generator |
|
Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4. Speed regulation: yaw. Simple, reliable and safety. |
|
5. Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric |
| anti-sandstorm corrosion design. |
|
6.Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request. |
| 7. 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9. Provide low wind place, rich wind place solution. Wind turbine OEM service. |
5. Working system
Wind turbine on grid system: wind turbine with tower + PWM on grid controller with dump load + grid tie inverter
Wind turbine off grid working system:
wind turbine with tower + PWM off grid charge controller with dump + battery group + inverter;
Wind solar hybrid off grid system, diesel or grid power as backup power
Matched PWM controller with dump load
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phrase/ 3 phrase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.

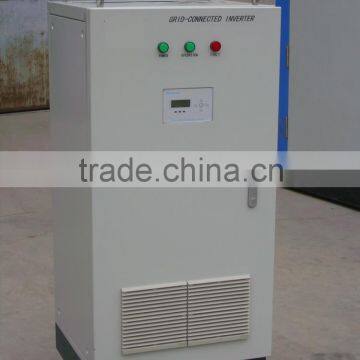

Inverter for on/off grid system:
Matched (3 phase )grid tie inverter 10k*2 sets, add isolation transformer between two grid tie inverters/Matched 1 Inverter Trio-20.0-TL-OUTD-W
Pure sine wave inverter single phase/ 3 phase
Inverter output voltage, frequency can be manufactured according to different countries request.
6. 20kw fixed pitch wind turbine advantage
Fixed pitch wind turbine including: 3 pcs blades, nose cone, hub, generator with manual brake part, nacelle, tail rod, tail vane
- Low/normal average wind speed wind turbine
- Fixed pitch,auto yaw, auto brake, manual brake protection system.
- Low cost, reliable and steady working system
- Low start up wind speed 3m/s, low rated wind speed 10m/s;(FD12-20kw)
- Low noise level, provide noise drawing chart
- High efficiency 3 phrase AC permanent magnet generator
- Vacuum mould blades with protection film, long worklife span in sand wind condition
- Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...
- stand alone tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order.
- We provide completely on grid system kit
Home, farm, signal station, island, garden...
8. Tower type: stand lone tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
Other fixed pitch wind turbine model list:
| Model | Working voltage |
| FD2.2-300W | DC24V |
| FD2.5-500W | DC24V |
| FD2.8-1KW | DC24V/DC48V |
| FD3.2-1.5kw | DC24V/DC48V |
| FD3.2-2KW | DC24V/DC48V |
| FD3.8-2.5kw | DC48V |
| FD4-3KW | DC48v |
| FD4-4KW | DC120v |
| FD5-5KW | DC120v |
| FD8-10KW | DC120V |
| FD8-15kw | DC240 |
| FD10-15KW | DC240V |
| FD10-20KW | DC500V |
| FD10-25KW | DC500V |
| FD12-30KW | DC500V |
| FD2.8-500W | DC24V |
| FD3.2-1KW | DC24V/DC48V |
| FD3.8-2KW | DC24V/DC48V |
| FD6-5KW | DC120V |
| FD10-10KW | DC120V |
| FD12-20KW | DC500 |
Wind turbine main body, blades, pma, tail, controller, inverter: plywood case
Tower: soft packages
Delivery by sea
FOB/C&F, CIF
500w-3kw wind turbine : 3-5 working days after payment
5kw-30kw wind turbine: 7-10 working days after payment
50kw-60kw 15-20 days after payment
Tower needs about 10 working days after payment
| 20kw WTG packing list | |||||
| Item | Description | Packing | G.W(Kg) | ||
| Packing method | outside size(m) | ||||
| 1 | Hub,nose cone and under cover | plywood box | 0.55 | 150 | |
| 2 | Generator/rotor body | plywood box | 1.77 | 890 | |
| 3 | Blades | plywood box | 2.09 | 390 | |
| 4 | Tail vane | Tail vane plate | plywood box | 0.85 | 255 |
| Tail vane frame | |||||
| Giant-shaped steel & others | |||||
| 5 | Tail rod | soft package | 0.25 | 75 | |
| 6. | On grid controller | carton | 0.10 | 30 | |
| grid tie inverter | plywood case | 0.15 | 40 | ||
| 7. | Unload box | carton | 0.46 | 77 | |
| TTL: | 6.23cbm | 1907 | |||
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
CE/CNACL/TRUCK TEST FOR VERTICAL AXIS WIND TURBIEN/SWT
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
Send Inquiry to This Supplier
You May Also Like
-
Wind Turbine GeneratorNegotiableMOQ: 2300 Sets
-
Portable Solar Generator 1000w SP-500US$ 20 - 500MOQ: 100 Pieces
-
640V180Ah LiFePO4 Battery System for Peak ShavingNegotiableMOQ: 1 Pack
-
300W-50KW Wind Turbine Generator SystemNegotiableMOQ: 1
-
Energy Generators Turbine Blade Top Procision Machining Turbine BladeUS$ 0.1 - 10MOQ: 10 Pieces
-
ET950 Recoil Starter, Farm/garden/generotor Machine Engine Parts,generator Recoil StarterUS$ 0.05 - 0.1MOQ: 500 Pieces
-
Temperature Monitoring Label Used for Electric Generator Safety Check/Reversible and IrreversibleUS$ 90 - 180MOQ: 40 Cases
-
Custom Carbon Steel Casting TurbineUS$ 0.1 - 15.9MOQ: 500 Pieces
-
Gasoline Generator SetUS$ 115 - 120MOQ: 5 Pieces
-
SRB22-1A Copper Wind Turbine Coils Winding MachineNegotiableMOQ: 1 Set
