General:
110V Battery Load Bank is specifically designed for the maintenance of the lead-acid battery discharge in the electricity sector. It is a new high-tech intelligent product that provides safe, reliable and convenient constant testing equipment for the DC system
Product Type:
Different discharge current range
String Voltage |
110VDC |
|
Discharge current Range |
30A 60A 100A 150A |

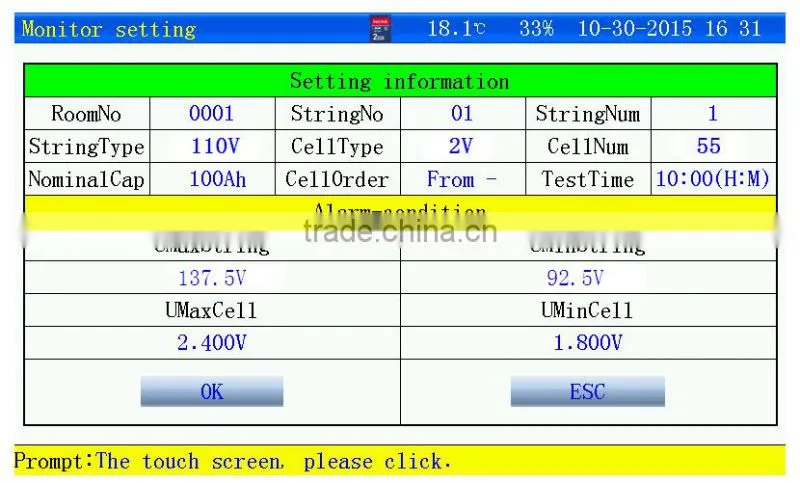

1,On-line monitoring test setting interface:
Online monitoring for battery string: when the battery pack is under the state of online discharge, uniform charge and floating charge, perform real-time online monitoring for all cells. The monitoring includes string voltage, cell voltage, charge/discharge current, monitoring time of battery string, charge/discharge capacity of battery string and etc.

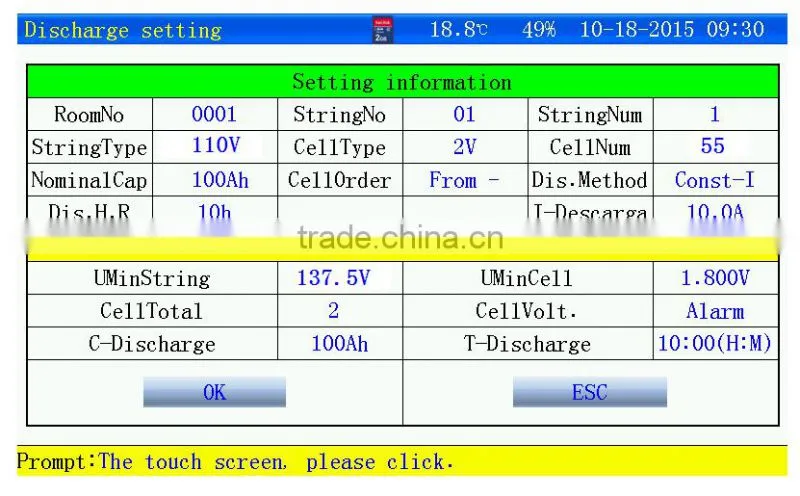

2,Discharge test setting interface:
Perform discharge of constant current taking advantage of intellectualized dummy load after the battery pack is removed from system, set up the parameters of “discharge current”,“discharge time ”,“discharge capacity” ,“final protective voltage of whole pack” and“ final protective voltage of cell”, and the tester could carry out discharge function automatically, display discharge current,battery discharged capacity,the whole pack voltage, cell voltage, discharge time and etc at real time;
Features |
Specifications |
||||||
Model |
110/60 |
110/100 |
110/150 |
110/300 |
|||
String Voltage measurement range |
0~135V |
||||||
String Voltage Resolution |
0.01V |
||||||
Voltage measurement accuracy |
≤±0.5% |
||||||
Cell Voltage Resolution |
0.01V |
||||||
Discharge current Range |
2~60A |
2~100A |
2~150A |
2-300A |
|||
Discharge Voltage of Constance current and constant power |
80~135V |
||||||
Current Measurement Resolutions |
0.1A |
||||||
Cell voltage measurement type |
1.2V/2V: 0-4V; 6V:0-8V; 12V: 0-15V |
||||||
Power Supply |
220VAC±15% 50Hz/60Hz |
||||||
Cooling mode |
Air Cooling |
||||||
Communication Mode |
RS232 and SD Card |
||||||
Display |
7inch Touch screen |
||||||
High-Voltage insulation test |
Input-The enclosure:2200Vdc 1min Input-Output:2200Vdc 1min Output- The enclosure:700Vdc 1min |
||||||
Safety standard |
EN610950 |
||||||
CE Certificate |
LVD: EN61010-12010; EMC:EN61326-1:2013 |
||||||
Work Temperature |
-5~50℃ |
||||||
Storage Temperature |
-40~70℃ |
||||||
Humidity |
Relative humidity 0~90%(40±2℃) |
||||||
Noise |
<60dB |
||||||
Dimensions |
480x225x410mm |
600x250x410mm |
600x225×x630mm |
1050x850x300 |
|||
Weight |
<13Kg |
<15.5Kg |
<25Kg |
<50Kg |
|||
