Continuous 24/7 on-line monitoring
• One CELLCHECK monitor one cell, including internal resistance, voltage and temperature
• Software is available to collect data from CELLCHECK
• Serial port with Optical isolation, meet MODBUS protocol, easy to be accessed by UPS controller
• Easy to install without specialized training

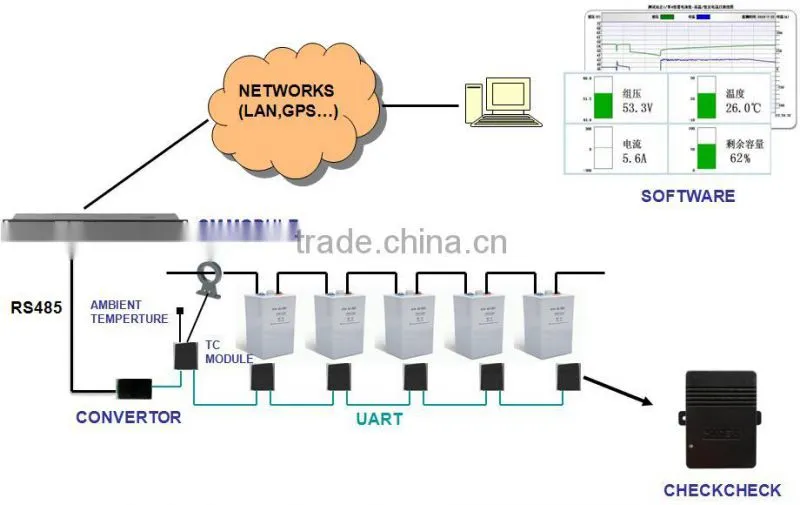

CELLCHECK intelligent battery monitor is designed specifically for single cell. CELLCHECK combines the advanced technology with patented for the most thorough stationary battery health analysis in the industry.
line-height-rule:exactly;mso-layout-grid-align:none;text-autospace:none'>• Software is available to collect data from CELLCHECK
• Serial port with Optical isolation, meet MODBUS protocol, easy to be accessed by UPS controller
• Easy to install without specialized training
Full resistance, battery temperature and voltage monitoring for comprehensive battery state of health analysis
• String current and ambient temperature monitoring(need TC module)
• Automatic analysis of battery monitoring data, find the batteries that need replacement or maintenance
(need CM module)
Environmental
Operating temperature:-5℃~50℃,5%~90%RH
Storage temperature: -10℃~70℃,5%~90%RH
Used for
2V,6V or 12V battery, capacity from 30AH to 2000AH
Power Requirements
CELLCHECK:powered from the battery,less than 60mA(2V) or 25mA(12V)
TC module:DC8~13V,2W
Convertor:DC8~13V,0.3W
CM module:85~264VAC,100V~370VDC,15W
Protection
Test load and power paths are fused
Measurement Range & Accuracy
String voltage:20~600V,±(0.5%+0.2V)
Cell voltage:1.5~2.5V,±(0.1%+1mV)
9~15V,±(0.1%+10mV)
Internal resistance:100~65535uΩ
Battery temperature:5℃~50℃, ±1.5℃
Ambient temperature: -10℃~+70℃,±0.5℃
