General:
Batteries in power plants, transformer substations, Telecom company and Force communications must provide the equipment they serve with standby power in the event of a power failure. This is why so important to check batteries regular intervals, and the only reliable way of measuring battery capacity is to conduct a discharge test.
FST-2000CT –Utility is used for battery systems range from 12V-96V Battery string, Discharge can take place at up to 200Amps, and if higher current is needed, two or more FST-2000CT units can be linked together.
Product Type:
Different discharge current range
String Voltage |
10V-120VDC |
|
Discharge current Range |
12V - discharge current range up to 60 A 24V - discharge current range up to 120 A 36V - discharge current range up to 120 A 48V - discharge current range up to 150 A 72V - discharge current range up to 150 A 80V - discharge current range up to 200 A 96V - discharge current range up to 200 A |
Main Functions and Features:
1,Used to discharge to battery string removed from the system
2,Discharge to Battery string voltage as 12V/24V/36V/48V/72V/80V/96V, Cell voltage as 1.2V/2V/6V/12V

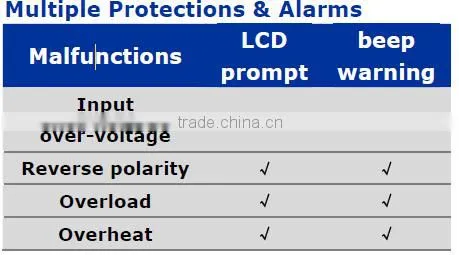

3,4 adjustable stop points and multiple alarm designs to control the discharge process intelligently
4,7inch LCD touch screen for easy operation and showing various parameters real time
5,Support real time monitoring by PC through USB port or SD Card download data after discharge
6,PC software for capacity evaluation and report generation
7,Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring
1,On-line monitoring test setting interface:
Discharge Test:
Features |
Specifications |
||
Model |
FST-2000CT |
||
String Voltage measurement range |
1~120V |
||
Constant discharge voltage range |
2V-10V |
10V-60V |
60V-120V |
Discharge current Range |
2V: 30A; 4V: 100A; 6V: 160A |
12V: 60A; 24V: 120A; 36V: 180A;48V: 200A |
72V: 170A; 96V: 200A |
String Voltage Resolution |
0.01V |
||
Voltage measurement accuracy |
≤±0.5% |
||
Cell Voltage Resolution |
0.01V |
||
Discharge Voltage of Constance current and constant power |
1-200A |
||
Current Measurement Resolutions |
0.1A |
||
Cell voltage measurement type |
1.2V/2V: 0-4V; 6V:0-8V; 12V: 0-15V |
||
Power Supply |
220VAC±15% 50Hz/60Hz |
||
Cooling mode |
Air Cooling |
||
Communication Mode |
USB Communication port and SD Card storage |
||
Display |
7inch Touch screen |
||
High-Voltage insulation test |
Input-The enclosure:2200Vdc 1min Input-Output:2200Vdc 1min Output- The enclosure:700Vdc 1min |
||
Safety standard |
EN610950 |
||
CE Certificate |
LVD: EN61010-12010; EMC:EN61326-1:2013 |
||
Work Temperature |
-5~50℃ |
||
Storage Temperature |
-40~70℃ |
||
Humidity |
Relative humidity 0~90%(40±2℃) |
||
Noise |
<60dB |
||
|
Dimensions of host tester
|
550(L)x360(W)x640mm(H) |
||
Alloy Carrying case |
590(L)x520(W)x740mm(H) |
||
Net Weight |
<48Kg |
||
WORKSHOP AND PRODUCT LINE :
LABORATORY :
PRODUCT TEST :
APPLICATION CASE IN CLIENT'S END :
SHIPPING SERVICE :
