200KW Shanghai Engine Marine Diesel Generator-China Generator Manufaccturer

200KW Shanghai Engine Marine Diesel Generator-China Generator Manufaccturer thumbnail-1
200KW Shanghai Engine Marine Diesel Generator-China Generator Manufaccturer thumbnail-2
200KW Shanghai Engine Marine Diesel Generator-China Generator Manufaccturer photo-1
200KW Shanghai Engine Marine Diesel Generator-China Generator Manufaccturer photo-2
US$ 999 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Sudong
Model Number:
SDSM40-250
Contact Supplier Request Quote Chat Now
Taizhou Sudong Power Generating Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Sudong
Model Number SDSM40-250
Output Type AC Three Phase
Speed 1500
Frequency 50
Rated Power 40-250
Rated Voltage 230/400/415/440
Rated Current 72-450

200KW Shanghai Marine Diesel Generator-China generator manufaccturer



1) 50hz Shangchai Marine Generator Feature


Genset Engine Alternator
Order No. Model Output Fre/Speed
Hz/RPM		 Model Rated Power
(KW)		 Cyl. Fuel Consumption
(L/H)		 Landian
(Optional)
Prime
(KW/KVA)		 Standby
(KW/KVA)
SDDM40 CCFJ40 40/50 44/55 50/1500 4135Caf 60 4 10 TFXW-225M4-40
SDDM50 CCFJ50 50/63 55/69 50/1500 4135Caf 60 4 13 TFXW-225M4-40
SDDM64 CCFJ64 64/80 71/88 50/1500 4135ACaf 76.8 4 15 TFXW-250M4-40
SDDM75 CCFJ75 75/94 83/104 50/1500 6135Caf 90 6 18 TFXW-250M4-40
SDDM90 CCFJ90 90/113 99/124 50/1500 6135ACaf 108 6 22 TFXW-250M4-40
SDDM100 CCFJ100 100/125 110/138 50/1500 6135JZCaf 144 6 24 TFXW-250M4-40
SDDM120 CCFJ120 120/150 132/165 50/1500 6135JZCaf 144 6 29 TFXW-250L4-40
SDDM150 CCFJ150 150/188 165/207 50/1500 6135JZLCaf 180 6 36 TFXW-315M4-40
SDDM200 CCFJ200 200/250 220/275 50/1500 G128ZLCaf2 240 6 38 TFXW-315M4-40
SDDM250 CCFJ250 250/313 275/344 50/1500 G128ZLCaf3 276 8 44 TFXW-315L4-40



Specifications:

 1) Output range: 40KW (50KVA) up to 250KW (313KVA),

 2) Engine: Shangchai Dongfeng

 3) Alternator: Stamford, Marathon, Ladian, Sanbo

 4) 8hrs operation base tank optional

 5) Auto start /stop module controller, Local monitor

 6) Frequency at stable state: <0.5%

 7) Voltage deviation at stable state: ≤±1%

 8) Voltage modulation: ≤0.3%

 9) Insulation class H; Protection class IP23

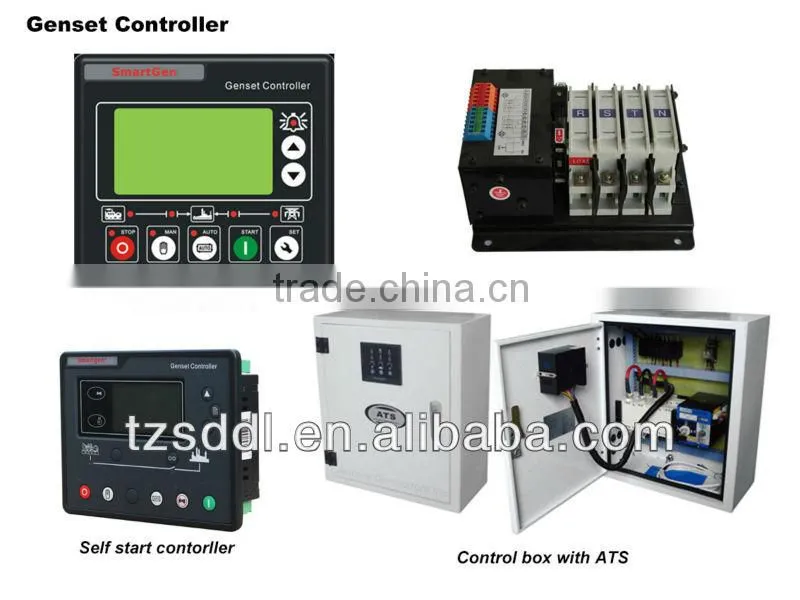

2)Control panel Feature

200KW Shanghai Engine Marine Diesel Generator-China generator manufaccturer

Feature:

1. Microprocessor control module, with high stability and credibility

2. Monitoring and measuring operational parameters of the generator set

3. Indicating operation status, fault conditions, all parameters and alarms

4. Multiple protections, multiple parameters display like pressure, temp. etc

5. Manual and automatic work mode selectable

6. Language optional of Chinese, English, Russian etc.

7. LED display, touch control

8. Real time clock display and log entries

Function optional: Paralleling, Remote control



Parameter:

Generator Volts, Amps, Frequency, active power, apparent power, power factor, Engine Oil Pressure, battery volt, Engine speed, engine temperature, Engine Hours Run, fuel level

Protection:

1.Low Oil Pressure     2.High voltage and low voltage      3. Volt adjuster and frequency adjuster

4.Overspeed                5. Emergency stop          6.Fail to start           7. High Engine Temperature



3) Sudong Partner



As ISO factory, quality is our priority concern before delivery.  We have kept good relationship with leading engine and alternator companies of internationl and Chinese.

200KW Shanghai Engine Marine Diesel Generator-China generator manufaccturer



With Robust foot mounting, Reliable performance and Versatile configurations,

they are great choice for marine mains, emergency or harbor generator.







Sudong Power, Your reliable partner for Power generator!

Any problem, Be free to contact me at Skype julie.liu9, Taizhou, China
