UL High Temperature Mica Wire UL5107 24AWG
- Shanghai NINGBO shenzhen
- T/T Credit Card
You May Like
-
UL 5128 Appliance Internal Fitting Wire
-
UL5128 12AWG Appliance Wire
-
UL5128 22 AWG Gauge Fiberglass Braiding High Temperature Mica Wire Supplier
-
Nickel Copper Mica Glass Fiberglass BraidedUL5128
-
UL 5128 Mica Tape Insulation High Temperature Wire
-
UL Certificated ul 5128 300V High Temperature Electrical Wire Cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | fongming | |
| Model Number | UL5107 | Type | Insulated | |
| Application | Heating | Conductor Material | Other, niclel plated copper or nickel | |
| Conductor Type | Stranded | Insulation Material | Other, Mica glass composite |
Product Description

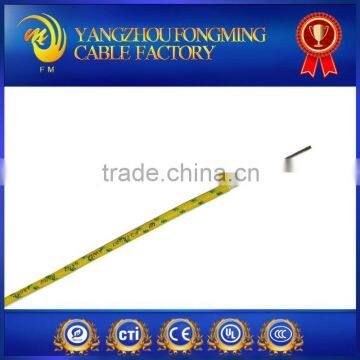

UL high temperature mica wire UL5107 24AWG
RATINGS/ APPROVALS
450°C-600Volts-UL 5107
CONSTRUCTION
UL high temperature mica wire UL5107 24AWG
Conductors
24AWG-8AWG
Stranded nickel-plated copper-27%/ pure nickel
Insulating System
Mica glass composite
Outer Covering
Fiberglass braid with high temperature finish
Standard Color Coding
Natural and Solid Colors
CHARACTERISTICS
UL high temperature mica wire UL5107 24AWG
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Provides dimensional consistency and uniformity.
Suitable for applications to -60°C
Resists braid pushback.
APPLICATIONS
UL high temperature mica wire UL5107 24AWG
Used for internal wiring of commercial, industrial,household ovens and lighting fixture.
Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.
SPECIFICATIONS
UL high temperature mica wire UL5107 24AWG
Size(AWG) | Conductor Structure | Insulation Thickness(mm) | Braid Thickness(mm) | Diameter (mm) |
24 | 7/0.2 | ≥0.63 | ≥0.18 | 2.3±0.2 |
22 | 7/0.254 | 2.4±0.2 | ||
20 | 10/0.254 | 2.6±0.2 | ||
18 | 16/0.254 | 2.8±0.2 | ||
16 | 26/0.254 | 3.2±0.2 | ||
14 | 41/0.254 | 3.6±0.2 | ||
12 | 65/0.254 | 4.2±0.2 | ||
10 | 103/0.254 | ≥0.76 | ≥0.38 | 5.9±0.2 |
8 | 163/0.254 | 6.8±0.2 |
| 1.Package length | 200meres 305meter 500meter As customers requirement |
| 2.Package method | Rolls spool or coil |
| 3:Ship port | Shanghai, Shenzhen Ningbo Lianyungang Port. |

1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
America Australia Mexico South Africa
UA Colombia Ukraine Ecuador England Germany (ERGE)
French Italy(ZOPPAS) Denmark(TRIAX)
Russia India Iran Uruguay Ireland etc.
Trade & Market
Main Markets: | Oceania |
Total Annual Sales Volume: | US$50 Million - US$100 Million |
Export Percentage: | 61% - 70% |
Product/Service (We Sell): | Multilayer Fiberglass Braiding Wire,Mica Wie,Silicone Wire, Thermocouple Wire |
Number of Employees: | 101 - 200 People |

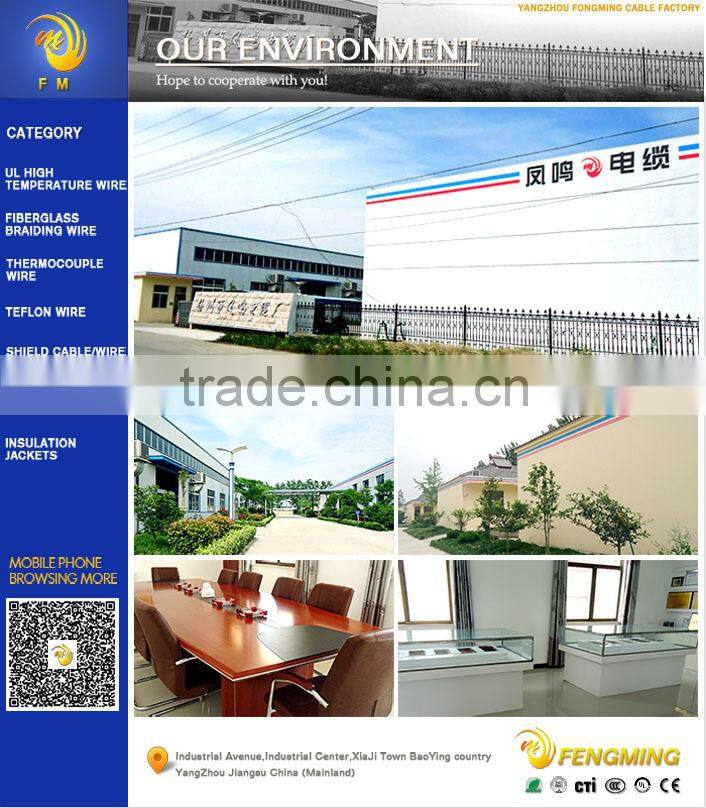

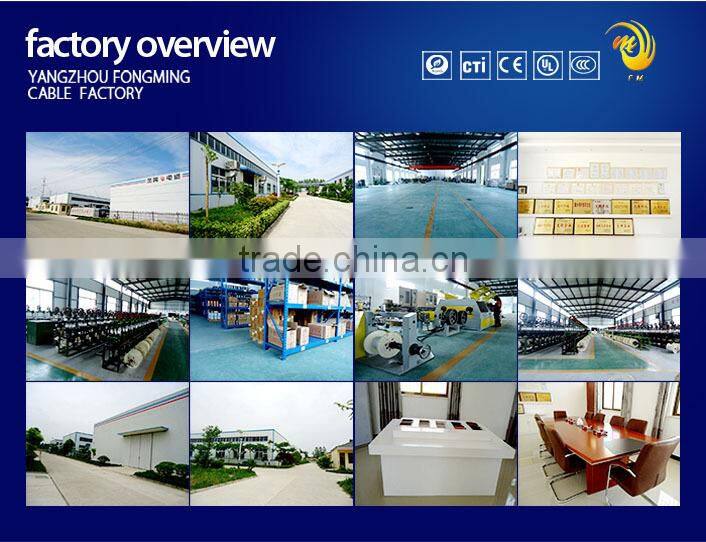

Our company is located in the history of Chinese history and culture of the ancient city, north of yangzhou, the famous hometown of charge - baoying, located in the beijing-hangzhou grand canal bank, beijing-shanghai expressway runs through north and south, convenient transportation, beautiful environment.

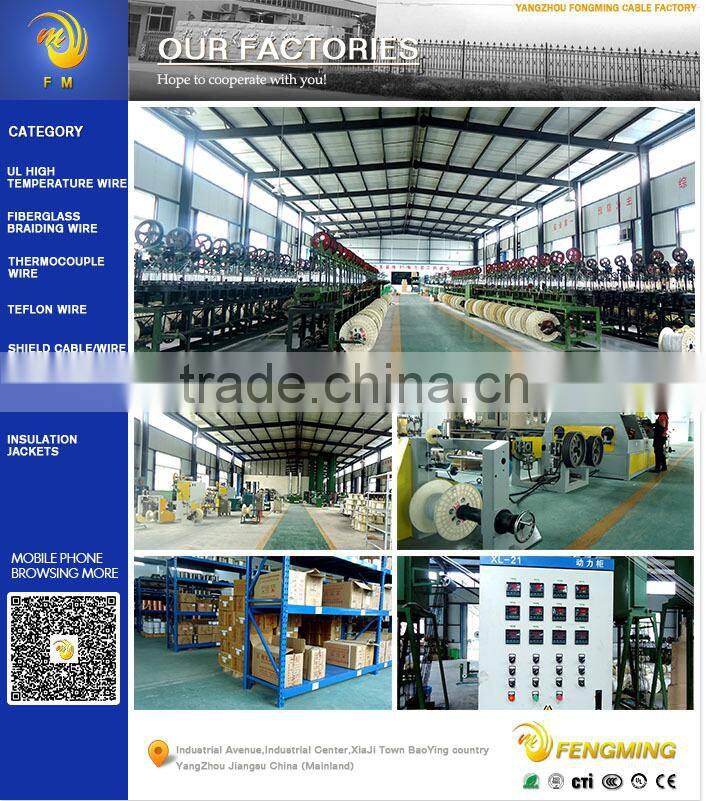

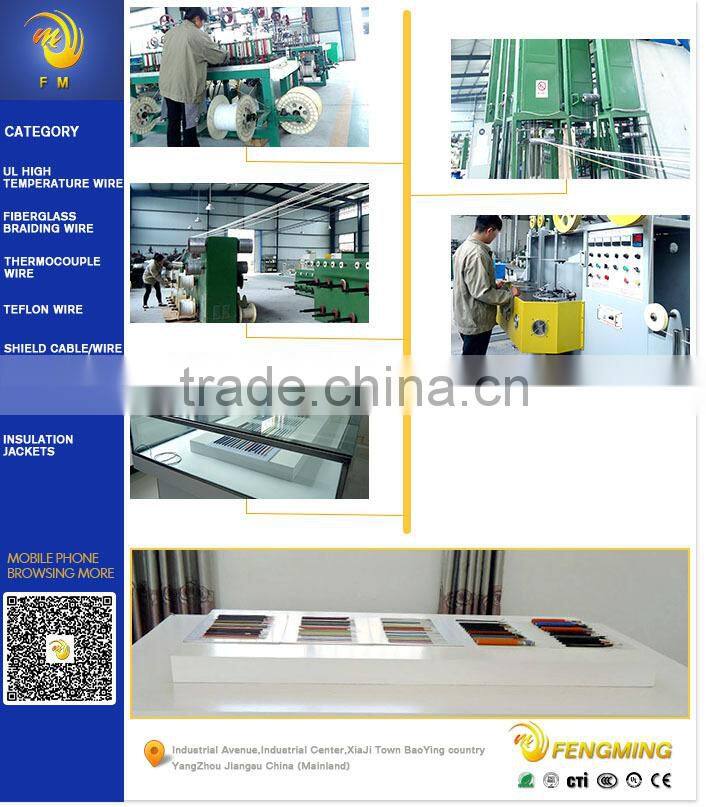

Our factory was founded in 2003, after 10 years of development, has a well-trained staff, factory employees 90 people, including management personnel 18 people, engineering technical personnel 20 people, the factory covers an area of 30000 square meters, factory building area of 10000 square meters.Achieve sales value of eighty million yuan, 2013 export value of $five million.Our factory in line with the service society, the enterprise concept of understanding the world, on the basis of quality and information, reputation and service for the guidelines, wholeheartedly welcome everywhere merchants to come to discuss cooperation, mutual benefit, hand in hand create a better future
Factory Size (ters): | 25,000-30,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country , Yangzhou Jiangsu,China |

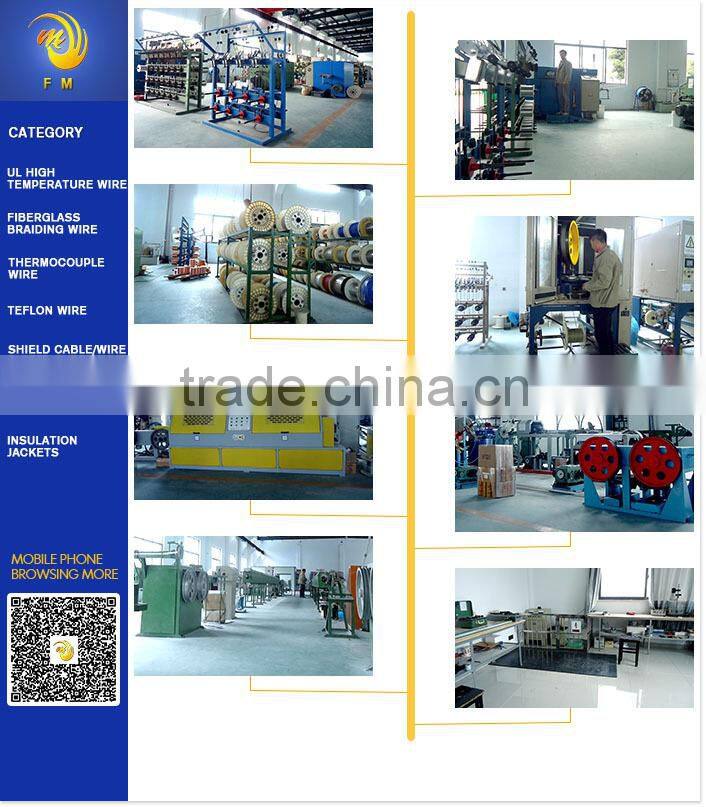

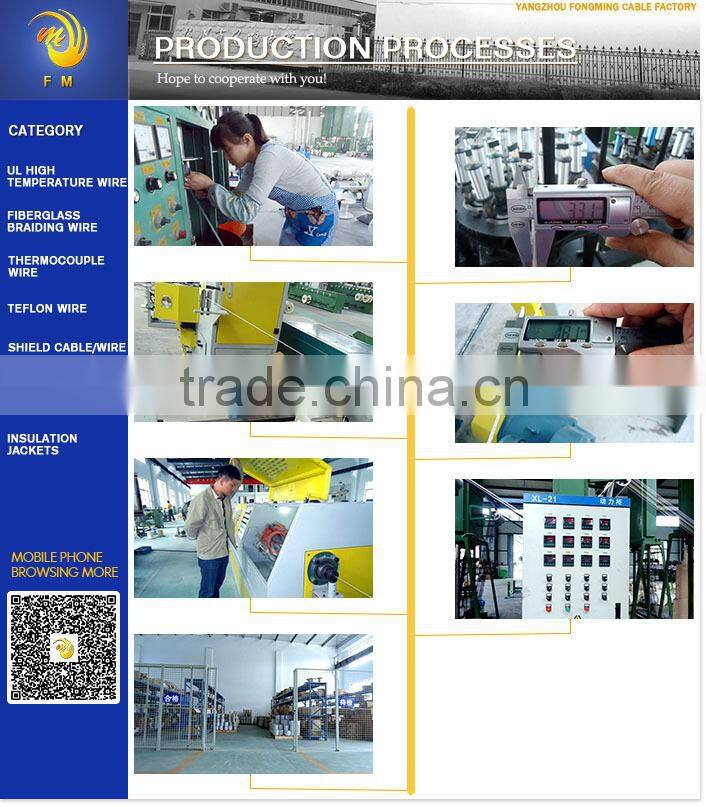

Number of Production Lines: | 7 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |

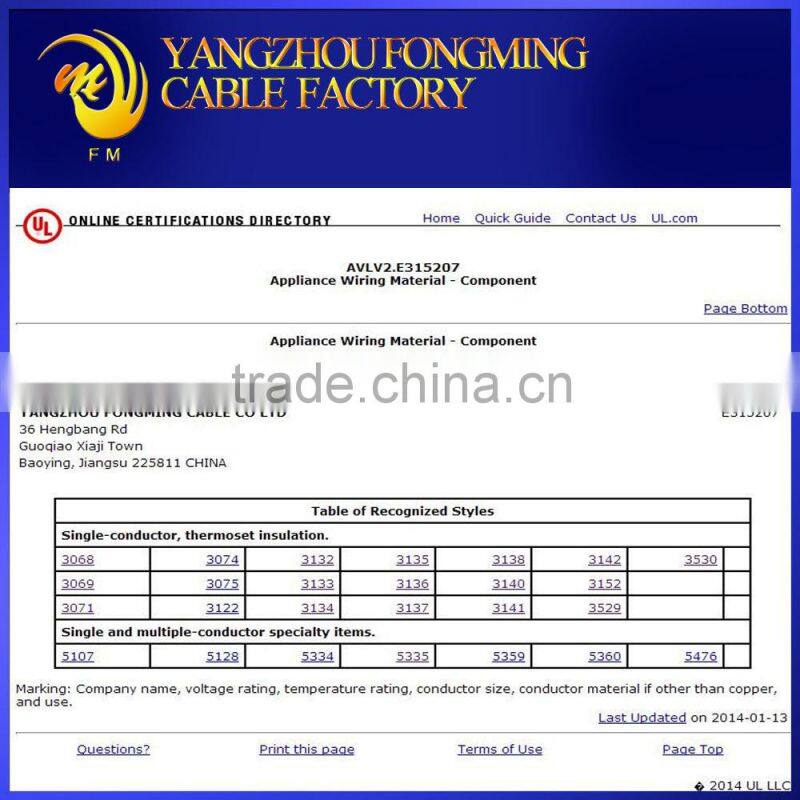

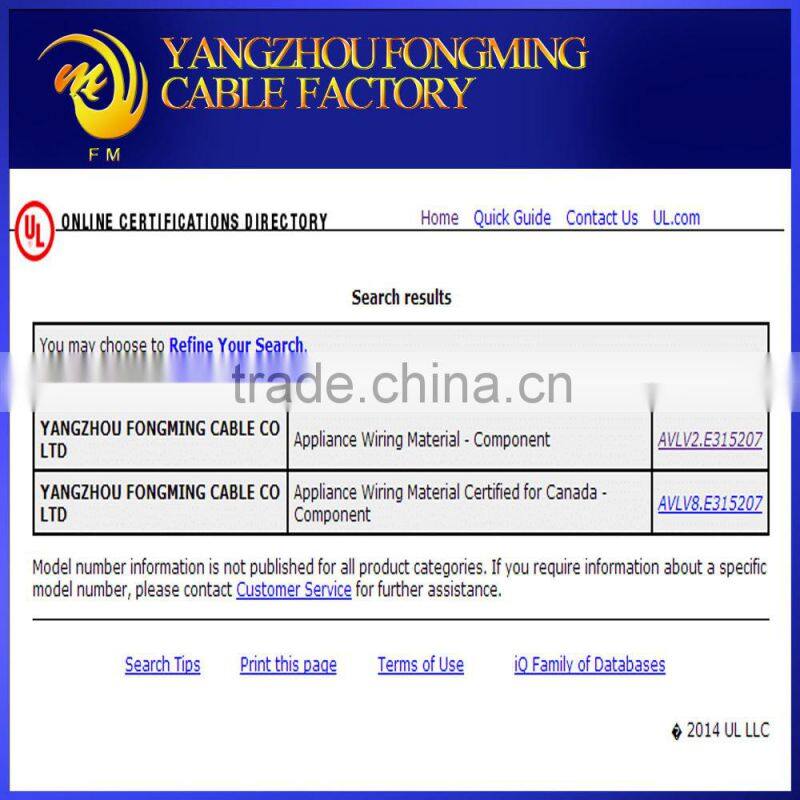

A: We are the Manufactory specialized in all kinds of silicone electrical wire, high temperature electrical wire for 20 years. The wires we supply have obtained UL certificate.
Q: Can you show us your products test report?
A: Of course. You will have our products test report soft copy after asking. We send our products to TESTING every year. And our products test resort can pass RoHS & REACH standard.
Q: How can I get the samples?
A: You should pay for the transportation freight of samples and our samples’ cost, while the samples’ cost can be refundable after you place the order.
Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size and your area.
Q: How long can I expect to get the sample?
A: The samples will be ready for delivery in 5 days.The samples will be sent via express and arrive in 3-5 days.
Q: How to order?
A: Please send us your purchase order by Email or Fax (+86 514088786699) or you can ask us to send you a Proforma Invoice for your order. We need to know the following information for your order.
1. Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2. Delivery time required.
3. Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.
4. Forwarder's contact details if there's any in China.
We will offer you the price that referring to your detail request, so please kindly inform us of the material, cross section, rated temperature, rated voltage, color and other requirement you refer, and the special offer will be given.
