AWUS052NH is the high-performance IEEE802.11a/b/g/n Dual-Band Wireless USB Adapter, with 802.11n MIMO technology that can deliver impeccable wireless data-rate up to 300Mbps. AWUS052NH includes an accessible Utility that scans for available networks on the Windows system and saves the preferred networks that users have previously connected with. Security encryption can also be configured by this utility.
| AWUS052NH | |
| Chipset | MTK RT3572 |
| Standard | Wireless IEEE 802.11a/b/g/n |
| Emission Type | DSSS / OFDM |
| Frequency | 2.4GHz / 5GHz |
| RF connector | RP-SMA female x 2 |
| Antenna | 2.4GHz + 5GHz Dual-Band 5dBi dipole antenna |
| Wireless Speed | 802.11a : 6,9,12,18,24,36,48,54Mbps |
| 802.11b : 1, 2, 5.5, 11Mbps | |
| 802.11g : 6,9,12,18,24,36,48,54Mbps | |
| 802.11n : up to 300Mbps | |
| Wireless Security | WEP, WPA, WPA2, WPA Mixed, 802.1x, WPS |
| Interface | Mini USB connector |
| Output Power (dBm) | 30@11bg |
| 28@11n HT20 | |
| 27@11n HT40 | |
| 27@11a | |
| 25@11an HT20 | |
| 23@11an HT40 | |
| Sensitivity (dB) | 802.11bg: -95 |
| 802.11n HT20: -82 | |
| 802.11n HT40: -77 | |
| 802.11a: -95 | |
| 802.11an HT20: -87 | |
| 802.11an HT40: -76 | |
| Operating Voltage | DC 5V± 10% |
| Temperature | Operation: -30 ~ 60℃ |
| Storage: -45 ~ 80℃ | |
| OS Supported | Windows XP, Vista, 7 and 8/8.1 |
| WinCE | |
| Mac 10.5.x or later | |
| Linux | |

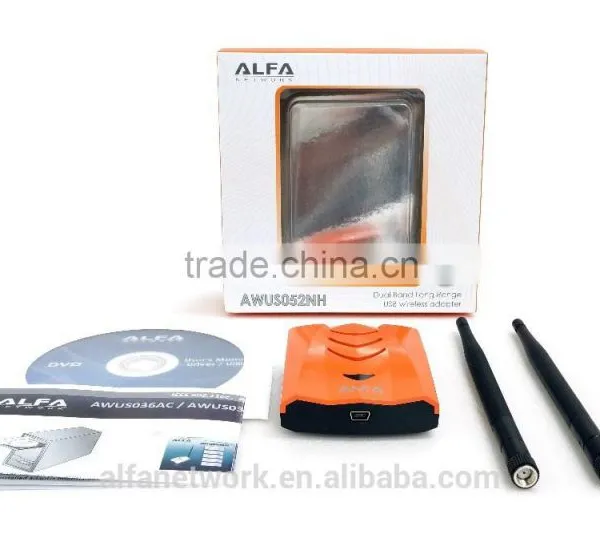

| Package Contents | 1x AWUS052NH |
| 2x detachable High Gain 5dBi antenna | |
| 1x USB 2.0 cable | |
| 1x Quick Setup Guide | |
| 1x Drive CD |
