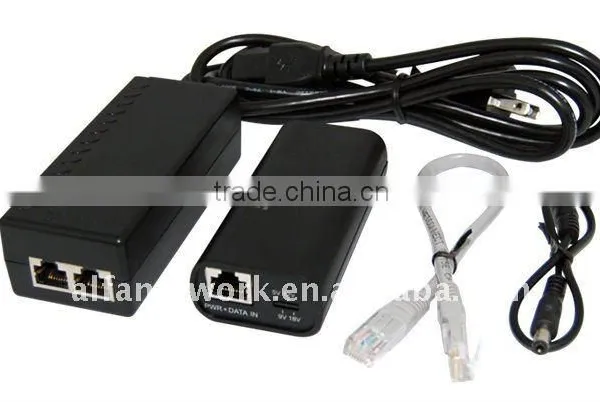

Adjustable 5/9/12/18v PoESet- Power Over Ethernet Set (Injector + splitter)Alfa APOE591218V is an PoEset with adjustable output power 5V, 9V, 12V,18V; a revolutionary technology for powering Ethernet terminals such as IP Telephone sets, wireless access point, and Internet protocol camera. The technology incorporates electrical power into a LAN data line enabling the delivery of operating power in addition to data communicate to terminals over standard cabling infrastructure.
Product Features:
Convey power and data to your LAN equipment through Ethernet cable
-Standard IEEE802.3at/af(PoESplitter)
-Support 5V, 9V, 12V, 18V output adjustable
-Regulate output voltage by switch
-Deliver power and data to equipment
Specification:
PoEInjector
Input Voltage : AC 110 ~ 220V
Output Voltage : DC 48V / 0.4A
Input Current : 0.5A Maximum
Load Regulation : + / -5%
Operating Temperature : 0 ~ 40°C
PoESplitter
Input Voltage : DC 48V
Output Voltage : DC 5V, 9V, 12V,or 18V(Adjustable)
RJ45 cable Power Usage Date : Pins 1,2,3,6
Power : Pins 4,5,7,8
Date Rate : 10/100/1000Mbps
Temperature : 0 ~ 40°C(operation) ; -40 ~ 70°C(storage)
Humidity : 10% ~ 80% RH (operation) ; 5% ~ 90% RH (storage)
