Specifications

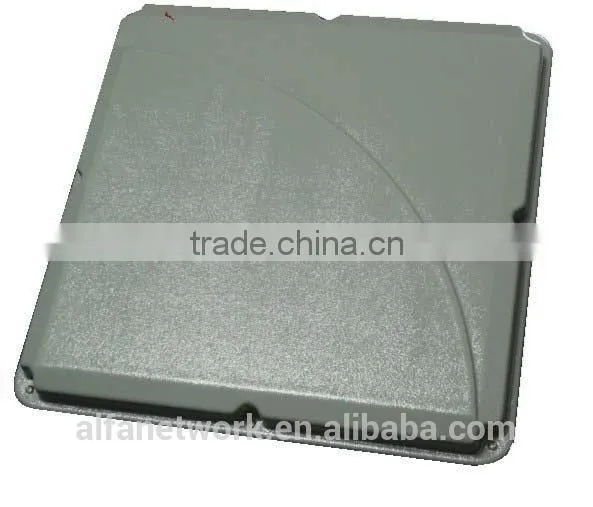

APA-L2419 antennas are professionallyengineered and manufactured with the highest
industry quality at the lowest possible pri
APA-L2419 antennas are professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value. APA-L2419 is designed for the 2.4GHz ISM band, supporting 2.4 to 2.5 GHz and provides superb performance in IEEE 802.11b/g WiFi and Bluetooth applications. APA-L2414 includes mounting bracket and hardware for up to 2” OD masts. Made with fiberglass
Applications:
2.4 - 2.5 GHz ISM Band IEEE 802.11b, 802.11g, 802.11n Wireless LAN Directional and multipoint applications Bluetooth Public Wireless Hotspot WiFi, RFID Wireless Video Systems
Features :
Superior performance The weight is light Good appearance designs DC Short lightning protection Installed for vertical or horizontal polarization Behind and support is an aluminum Support is up and down or so to adjust Outdoor antenna for public hot-spots Includes tilt and swivel mast mount brackets RoHS Compliant
| Model | APA-L2419 |
| Frequency | 2.4-2.5GHz |
| VSWR | < = 1.5 |
| Gain | 19dBi |
| Polarization | Vertical or Horizontal |
| Power Handling | 50 Watts |
| Impedance | 50 Ω |
| Beam Width | H: 17° / V: 17° |
| Connector | N Female |
| Operation Temp | -40℃ ~ +80℃ |
| Dimension | 370*370 mm |
| Mounting | 32 ~ 45 mm ( 1.2 ~1.75 inch ) |
| Weight | 1030g (&Mounting Bracket max) |
