Specifications
1.Novel construction,beauty in shape,smart in bodily form.2.It can fold and deploy,convenient to take.It is easy
Specifications
safety booth with pressure lock
EPS foam board
CE APPROVED
quality car spray booth
DELIVERY TIME within 10 days upon dep
safety booth with pressure lock
competitive price
energy-saving booth
car spray booth
spray booth professional manufacturer
spray booth,paint booth,spray paint booth
1.down-draft booth
2.custom-made
pective price
4.quick delivery
spray booth,paint booth,spray booths,paint booths,spray oven,paint oven,car spray booths,car baking oven,baking booth
painting spray cabin
Booth outside(mm): 7000*4000*3500
Booth inside(mm): 6900*3900*2800
Working door(mm): 3000*2700
Personnel Door(mm) :700*2000
Total powder(kw): 15.5
Color:Blue,red,white
|

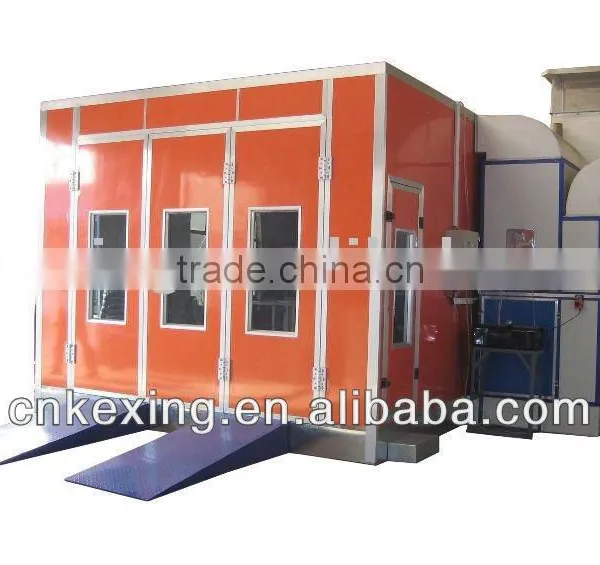

SPRAY BOOTH WITH CE suitable for EU market | ||||||
Dimensions: |
Length (mm) |
Width (mm) |
Height (mm) |
|||
Booth Outside |
7000 |
4000 |
3500 |
|||
Booth Inside |
6900 |
3900 |
2800 |
|||
Entrance Door |
Equipped with Handle & Lock |
3000 |
2700 |
|||

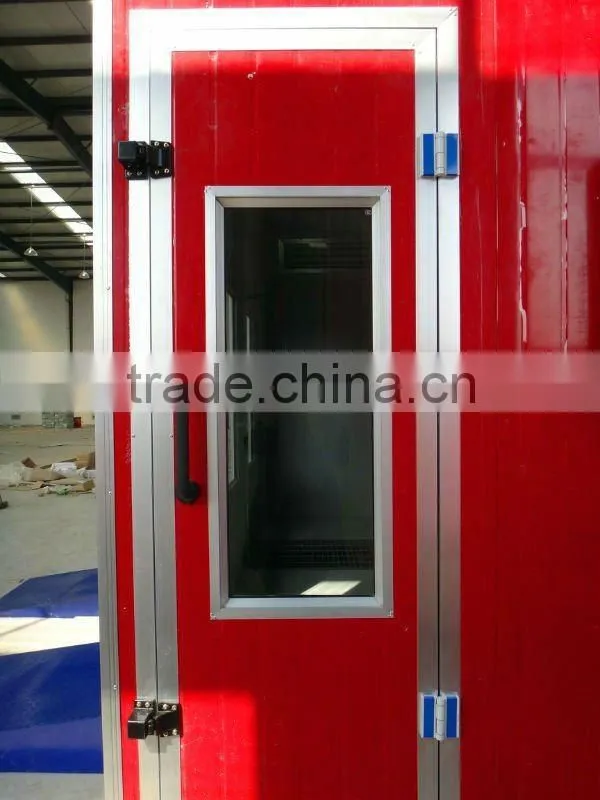

Personnel Door |

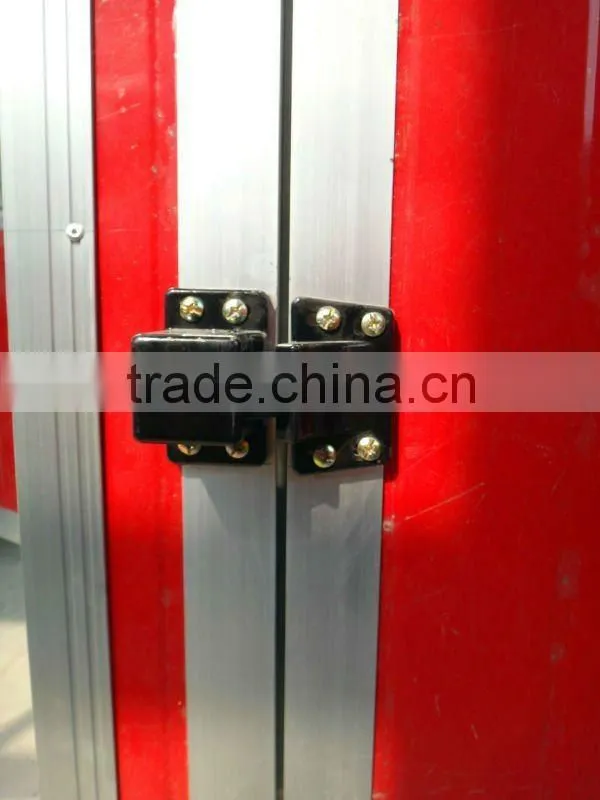

Equipped with Handle & high-pressure safety Lock |
700 |
2000 |
|||
Features: |
Total Power 17.5 kw; 380v/ 3phase/ 50hz |
Noise < 80 db |
||||
1. Wallboard & roof panel |
- EPS colorful board, 50 mm thick, tongue & groove style, compound construction, anti-flame and heat-insulation, galvanized steel roof panel. |
|||||
2. Basement |
- Metal Pedestal(Galvanized), with Filter Tray* 2rows & Ramps a couple |
|||||
- Grid Plates (Galvanized)* 2rows | ||||||
- Diamond Plates (Powder Coated or Galvanized)* 3rows | ||||||

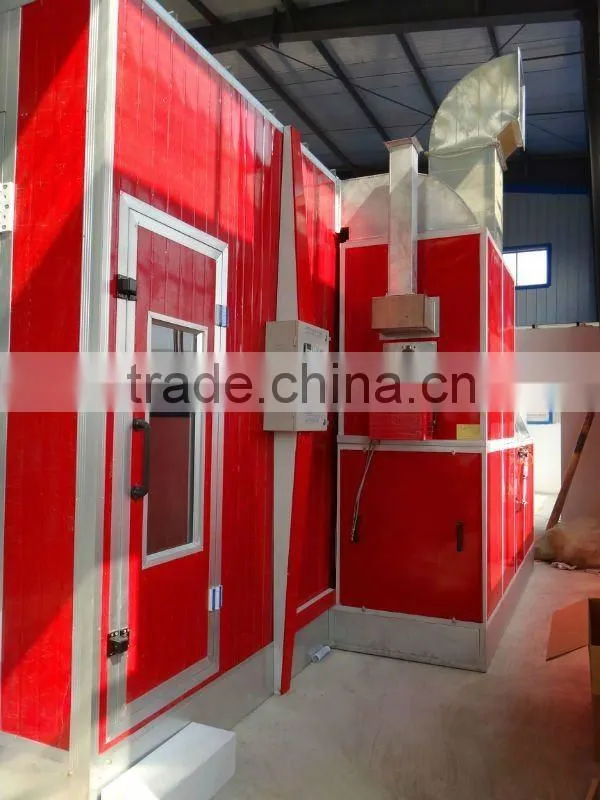

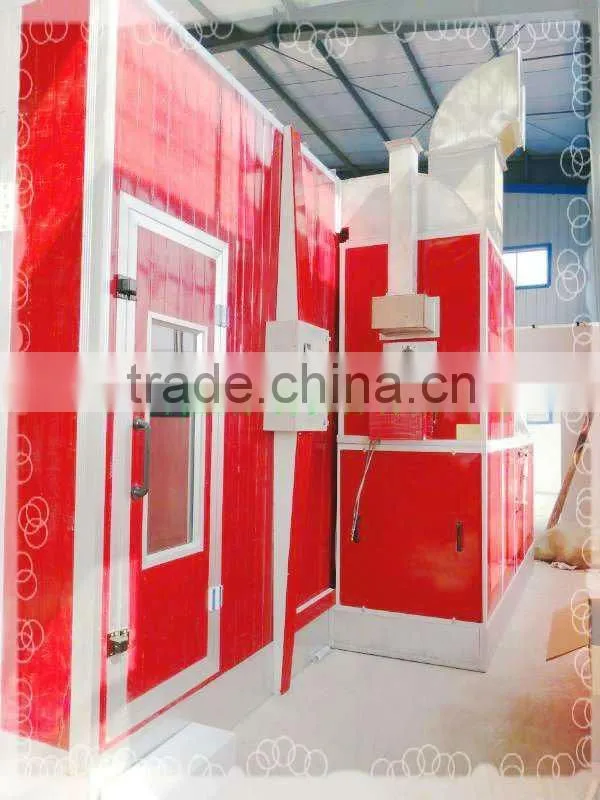

3. Heating System |
- Diesel Burner (Italy Riello, G20)* 1unit |
|||||
- Heating Exchanger (Stainless Steel material)* 1unit | ||||||
- 5~10 minutes reaching the baking temperature 60~80°C | ||||||
- Cabinet (rock wool insulation) for the burner & heat exchanger* 1unit; Air Ducts * 2pcs | ||||||
4. Filter System |
- Primary Filter* 1set, filtering rate > 83% |
|||||
|
- Air-Intake Filter* 1set, 600G high efficiency filter (ceiling filter) - filtering rate > 97% | ||||||
- Air-Exhaust Filter* 1set, floor filter (fiberglass filter), filtering rate > 70% | ||||||
5. Air circulation System |
- Air-Intake Fan* 1unit, Centrifugal Fan with 4 kw motor, 2 sets |
|||||
- Air-Exhaust Fan* 1unit, Centrifugal Fan with 5.5kw motor, one set | ||||||
- Cabinet for the fans* 1 unit, and Air Ducts* 3pcs, and Air Damper (pneumatic)* 1unit | ||||||

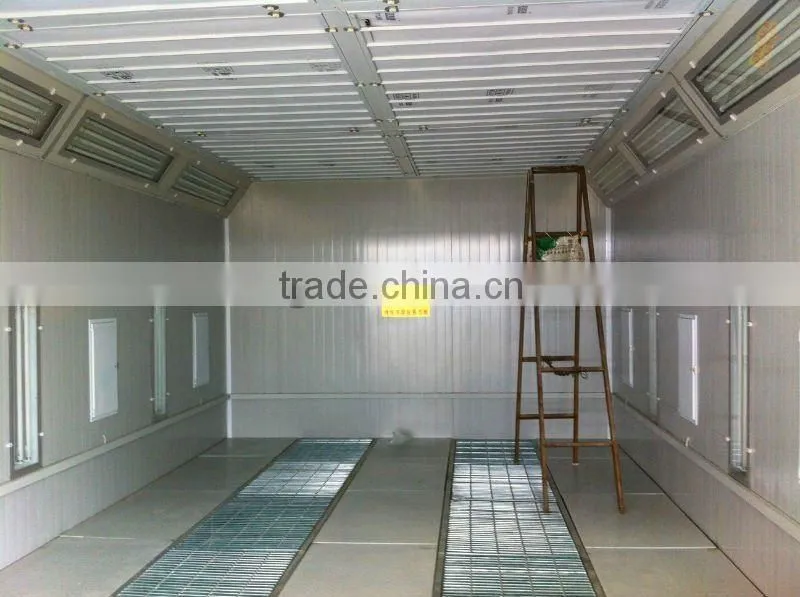

6. Illumination |
- Ceiling Lights * 32pcs, 36w each, with electronic ballasts, powder-coated light box. |
|||||
- Side Lights * 18pcs, 30w each, with electronic ballasts, vertically set, power-coated light box. | ||||||
7. E-control Panel |
- *1unit, including Power switch, spray/baking switch, light switch, emergency stop, etc. Soft touch screen |
|||||
Optional: |
Color: |
Red, blue, orange, white |
||||
cabinet position |
left , right |
|||||
Included |
- All Hardware, Fasteners, and Sealants |
|||||
