Car Spray Booth Manufacturer

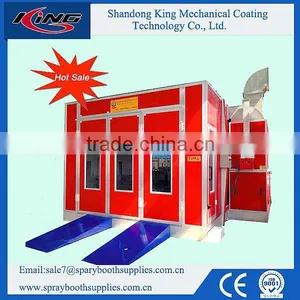

Name: Car Spray Booth Manufacturer
Brand: KING
SKU: 107063173
Availability: InStock

US$ 5,500 - 7,300 MOQ: 1 Set

Key Specifications

Power:

15.5kw

External Size:

7000*4050*3500

Internal Size:

6900*3900*2800

Shandong King Mechanical Coating Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Power 15.5kw

External Size 7000*4050*3500

Internal Size 6900*3900*2800

Voltage 220/380

Certification CE

Place of Origin Shandong, China

Brand Name KING

Model Number KX-3200B

Outside Size(mm):	7000(L)5250(W)4100(H)		Front Door(mm):	3000(W)*2600(H)
Inside Size(mm):	6900(L)3900(W)2700(H)		Total Power(kw):	15.5; 380V/3Phase/50Hz

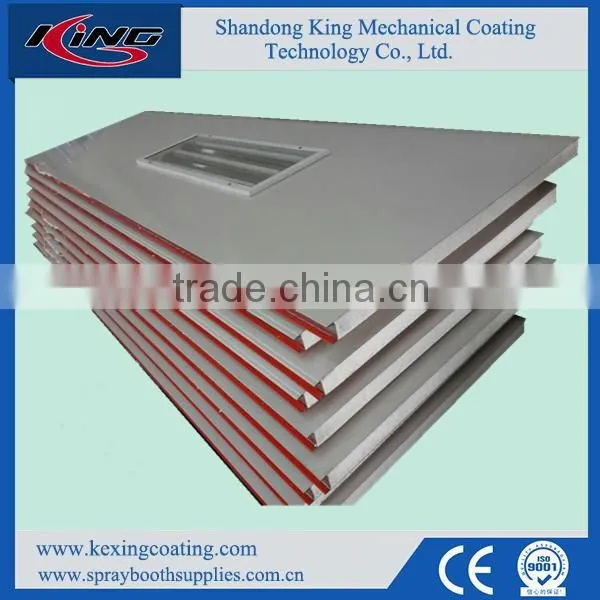

Cabin System	Wallboard	EPS colorful steel skin panel, 50mm thick, steel 0.476mm thick, tongue & groove style, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.

	Front Door	Folding door, 2 folds for one set, 3000*2600mm(W×H), with safety glass windows, aluminum alloy frame.
	Escape Door	1 unit 750*2000mm(W×H), with safety glass windows, aluminum alloy frame.
	Basement	300mm height. Galvanized steel sheet and square steel pipe assembling, 2rows of grid plates made by flat bar and round steel. 3 rows of diamond plates, galvanized. 2sets of galvanized ramps.

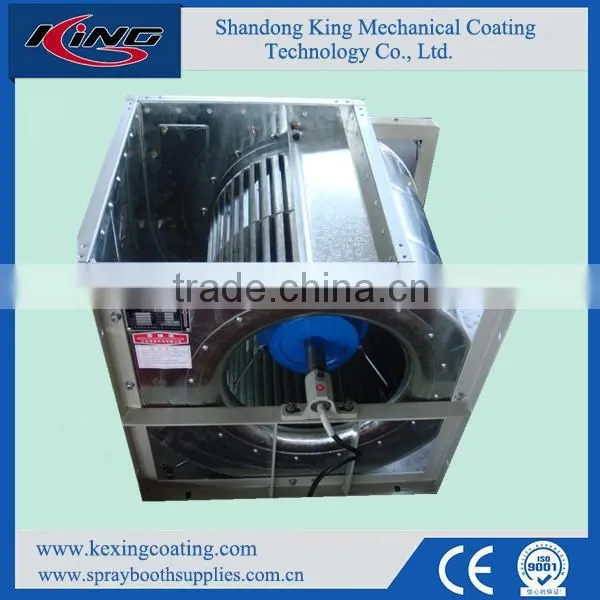

Air Circulation	Intake Fan	2 sets of 4kW intake fans, air capacity 25000m3/h in total.
	Exhaust Fan	1 set of 5.5kW intake fan, air capacity 15000m3/h.

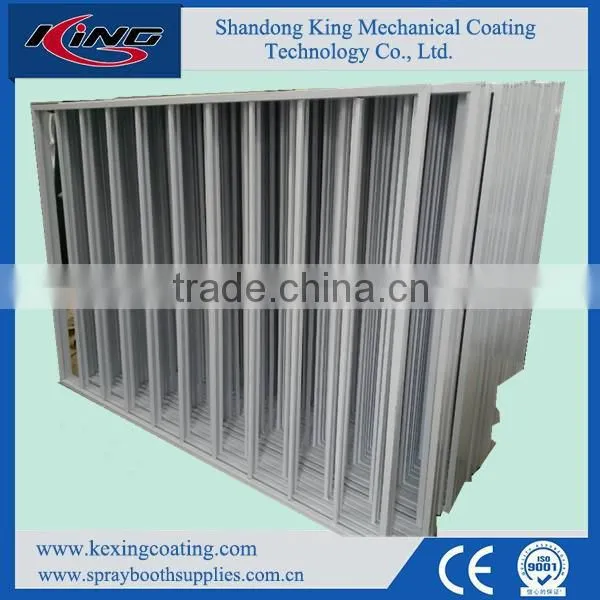

Purification System	Pre-filter,600G high efficiency filter(ceiling filter), fiberglassfilter(floor filter), activated carbon filter. Full galvanized grilled

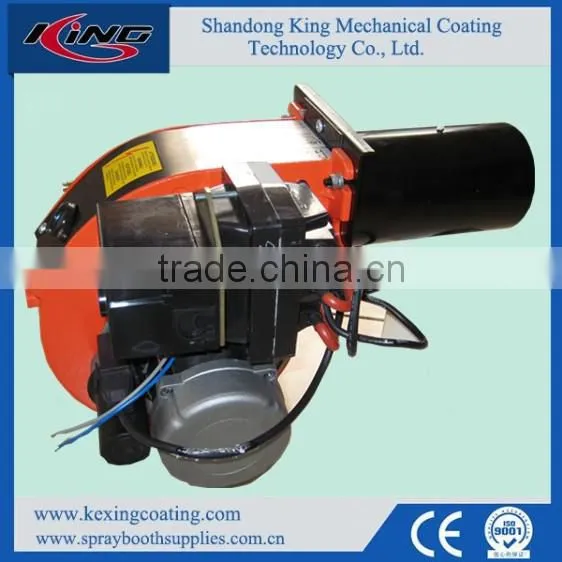

Heating System	Italy Riello G20 Gas Burner, 200000Kcal/h. Pneumatic-damper for changing spraying and baking. Drying Temp is 60°C~80°C.
Lighting System	Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, power-coated light box. Side Lights: 6Units×3Pcs=18Pcs×30W, with electronic ballasts, vertically set, power-coated light box.
Control System	Power switch,spray/baking switch,light switch,emergency stop,etc.
